68049 (PT-36 PP) - Toro Power Trowel (SN: 314000001 - 314999999) (2014) PRO-PITCH HANDLE ASSEMBLY NO. 125-6200 Parts Diagram

Power Trowel

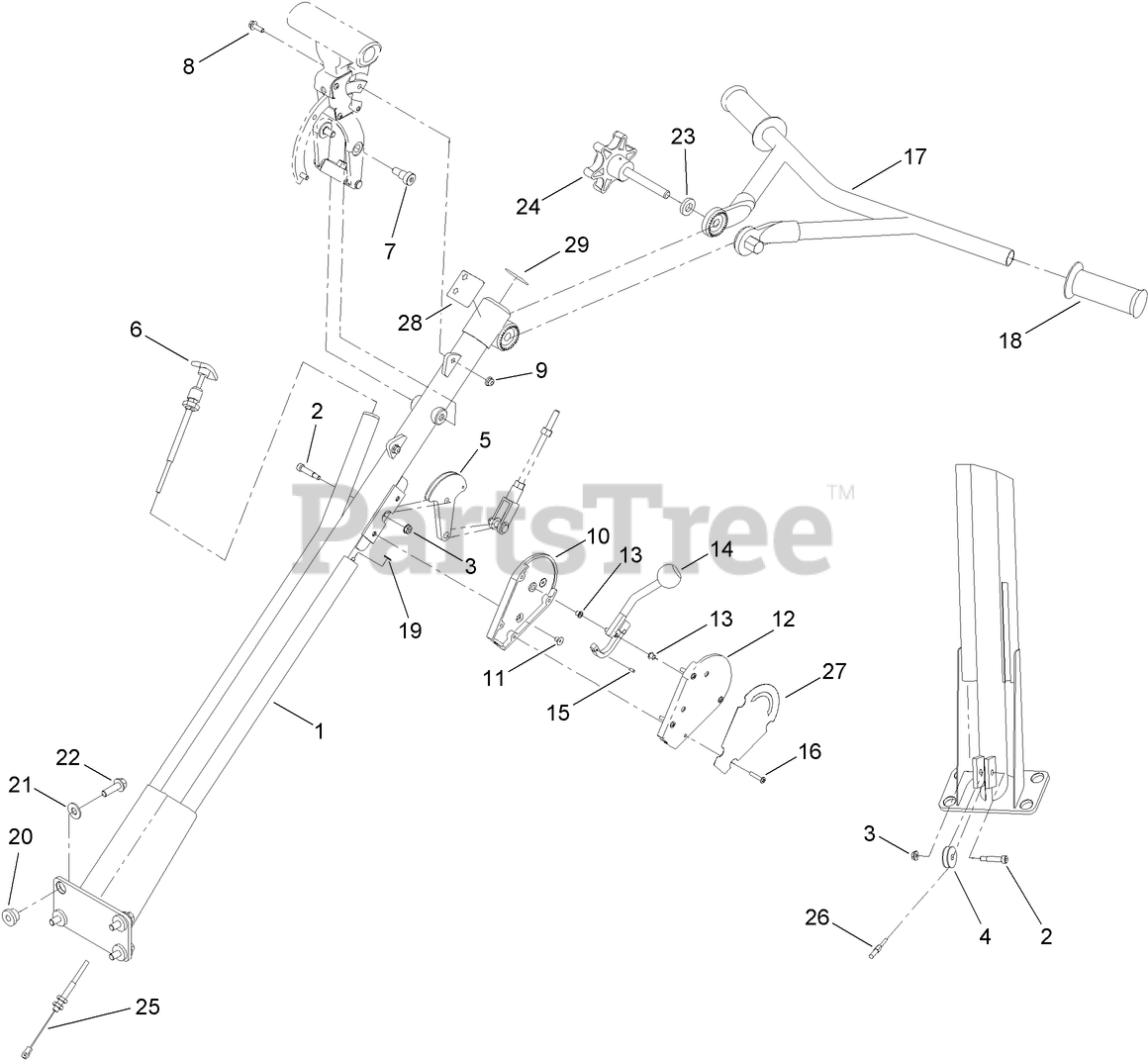

PRO-PITCH HANDLE ASSEMBLY NO. 125-6200 Parts Diagram

  • Title

1

Toro ST36739-01

HANDLE-COLUMN, MAIN

$983.99

$

Usually ships in 3-6 days

0

2

Toro ST80275

SCREW-HSBH

$6.99

$

Usually ships in 3-6 days

0

3

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

4

Toro ST36767

PULLEY-PIVOT

$42.99

$

Usually ships in 3-6 days

0

5

Toro ST36753

CAM-CABLE, TILT PIVOT

$217.99

$

Usually ships in 3-6 days

0

6

Toro ST36763

CABLE-THROTTLE, PUSH/PULL

$93.99

$

Usually ships in 3-6 days

0

7

Toro ST80066

SCREW-HSBH

$20.99

$

In Stock, only 4 left!

0

8

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro ST27353

HOUSING-CLUTCH, DYNA

$109.99

$

Usually ships in 3-6 days

0

11

Toro ST80422

SCREW

$4.99

$

Usually ships in 3-6 days

0

12

Toro ST27355

COVER-CLUTCH

$83.99

$

Usually ships in 3-6 days

0

13

Toro ST32117

BUSHING-FLANGE

$4.49

$

Usually ships in 3-6 days

0

14

Toro ST21977

LEVER DYNA ASM

$222.99

$

Usually ships in 3-6 days

0

15

Toro ST80305

PIN

$0.99

$

Usually ships in 3-6 days

0

16

Toro ST80070

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

17

Toro ST21843-01

HANDLE-ADJUSTMENT
(Superseded to 127-2809-01)

$309.99

$

Usually ships in 3-6 days

0

18

Toro ST47125

GRIP-HANDLE

$13.99

$

In Stock, only 1 left!

0

19

Toro ST80069

RING-EXTERNAL

$0.99

$

Usually ships in 3-6 days

0

20

Toro ST47355

MOUNT-SHOCK

$10.99

$

In Stock, only 4 left!

0

21

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

23

Toro ST80125

WASHER-FLAT
(Superseded to ST80891)

$3.99

$

Usually ships in 3-6 days

0

24

Toro ST21844

KNOB-ADJUSTMENT

$110.99

$

Usually ships in 3-6 days

0

25

Toro ST36764

CABLE-CLUTCH

$57.99

$

Usually ships in 3-6 days

0

26

Toro ST36762

CABLE-TILT

$96.99

$

Usually ships in 3-6 days

0

27

Toro 125-4934

DECAL-DYNA CLUTCH

$20.99

$

Usually ships in 3-6 days

0

28

Toro 125-4935

DECAL-RAISE, LOWER

$15.99

$

Usually ships in 3-6 days

0

29

Toro 125-8215

DECAL-PRO PITCH

$9.99

$

Usually ships in 3-6 days

0
