68039 (TR-34 D) - Toro Trench Roller (SN: 315000001 - 315999999) (2015) BATTERY AND CONTROL SYSTEM ASSEMBLY Parts Diagram

Trench Roller

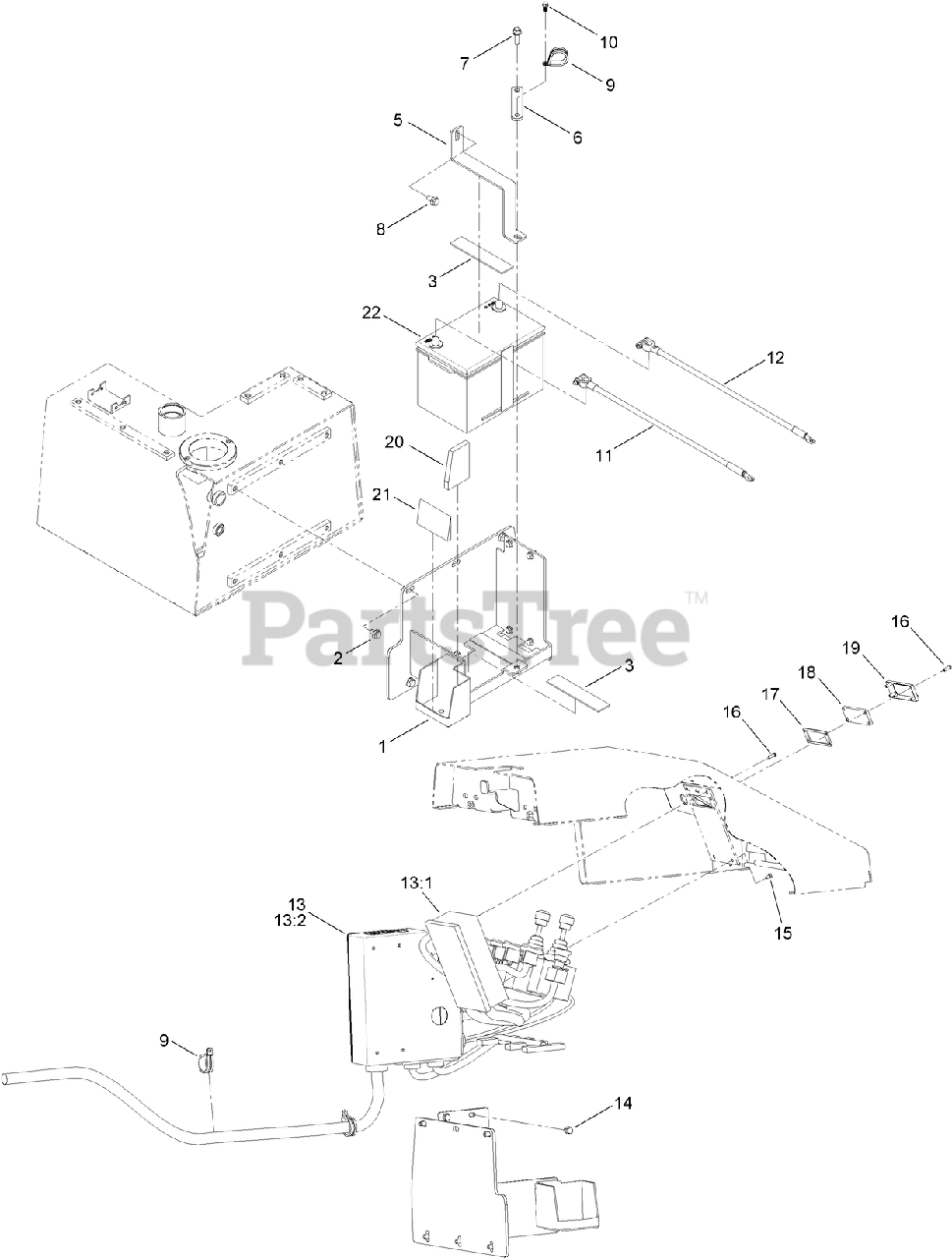

BATTERY AND CONTROL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8231-03

PANEL-ELECTRICAL

$

$

Currently unavailable

2

Toro 33105-016

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

3

Toro ST47244

RUBBER

$14.99

$

Usually ships in 3-6 days

0

5

Toro ST57908-03

STRAP-BATTERY

$22.99

$

Usually ships in 3-6 days

0

6

Toro 125-8595-03

BRACKET-WIRE HARNESS

$26.99

$

Usually ships in 3-6 days

0

7

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

8

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

9

Toro ST36630

CLAMP

$4.49

$

Usually ships in 3-6 days

0

10

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 2 left!

0

11

Toro 127-7519

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

12

Toro 127-7518

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

13

Toro 130-2840

CONTROL SYSTEM KIT

$15789.99

$

Usually ships in 3-6 days

0

13:1

Toro ST48554

BOX-CONTROL IGNITION, ELECTRONIC

$5350.99

$

Usually ships in 3-6 days

0

13:2

Toro ST48556

JUNCTION BOX ASM

$7703.99

$

Usually ships in 3-6 days

0

13:3

Toro ST48647

HARNESS-WIRE

Note: Not illustrated

$3712.99

$

Usually ships in 3-6 days

0

14

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

15

Toro 42-9430

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro ST81022

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

17

Toro ST36515

GASKET-COVER

$3.99

$

Usually ships in 3-6 days

0

18

Toro ST36514

COVER

$56.99

$

Usually ships in 3-6 days

0

19

Toro ST36627

COVER-LENS

$173.99

$

Usually ships in 3-6 days

0

20

Toro ST36613

PAD-FOAM

$11.99

$

Usually ships in 3-6 days

0

21

Toro ST36614

PAD-FOAM

$

$

Currently unavailable

22

Toro ST32727

BATTERY-DRY CELL

$

$

Not available
