68039 (TR-34 D) - Toro Trench Roller (SN: 313000001 - 313999999) (2013) ENGINE, AIR CLEANER AND MUFFLER ASSEMBLY Parts Diagram

Trench Roller

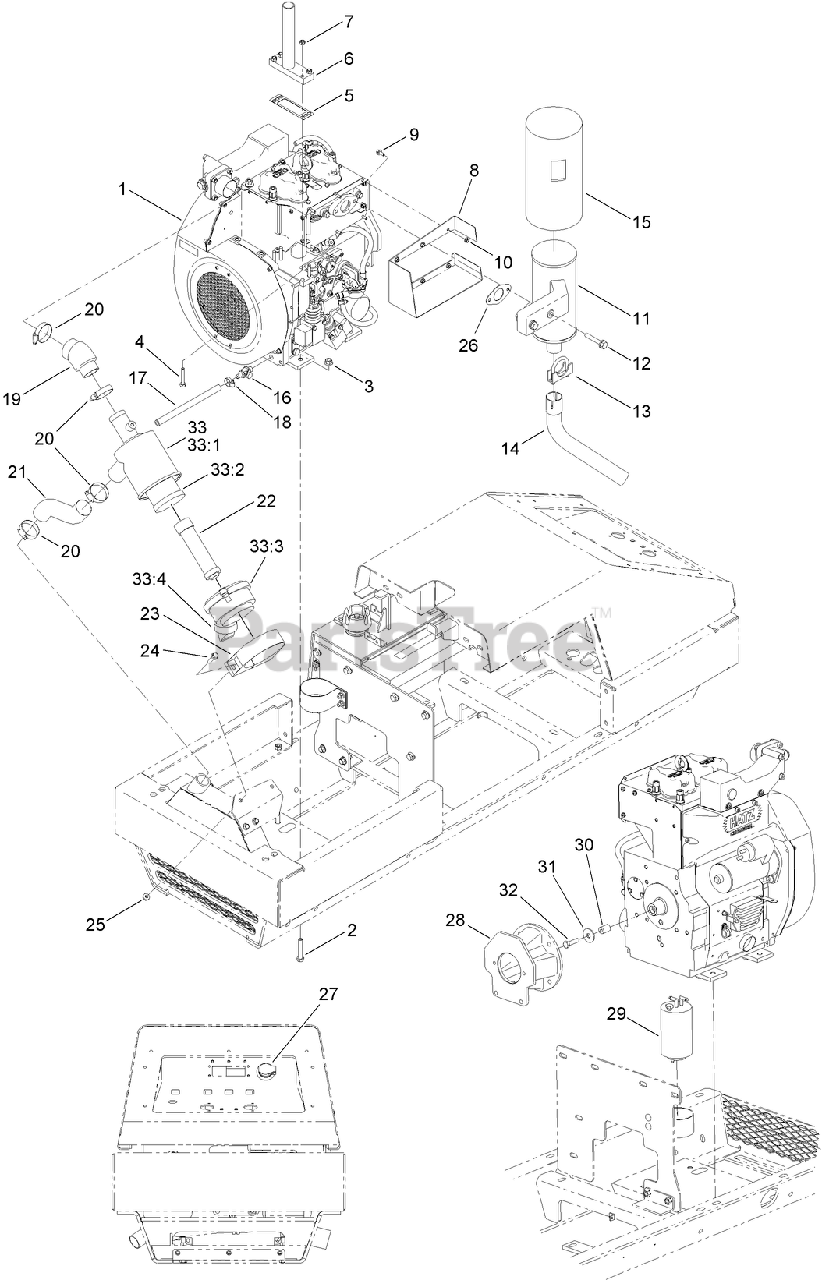

ENGINE, AIR CLEANER AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro ST30358

ENGINE ASM

$25687.99

$

Usually ships in 3-6 days

0

2

Toro ST81032

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

3

Toro 33005-00

NUT-HF

$2.49

$

In Stock, only 1 left!

0

4

Toro 33114-050

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

5

Toro ST42976

GASKET-FILLER, OIL

$4.49

$

Usually ships in 3-6 days

0

6

Toro ST36541-03

FILLER-OIL

$

$

Currently unavailable

7

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

8

Toro ST36461-03

DUCTING-AIR, OUT EXTENSION

$130.99

$

Usually ships in 3-6 days

0

9

Toro 33103-016

SCREW-HHF

$6.49

$

In Stock, Qty 8

0

10

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

11

Toro ST39866

MUFFLER

$767.99

$

Usually ships in 3-6 days

0

12

Toro 33105-060

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

13

Toro ST36779

CLAMP-MUFFLER

$

$

Not available

14

Toro ST39867

TAILPIPE

$88.99

$

Usually ships in 3-6 days

0

15

Toro ST31277

BLANKET-INSULATION, EXHAUST

$395.99

$

Usually ships in 3-6 days

0

16

Toro ST38680

VALVE-DRAIN, OIL

$174.99

$

Usually ships in 3-6 days

0

17

Toro ST36606

HOSE

$9.49

$

Usually ships in 3-6 days

0

18

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

19

Toro ST47445

HOSE-INTAKE, AIR, ENGINE

$161.99

$

Usually ships in 3-6 days

0

20

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

21

Toro ST47448

HOSE-FLEX, VACUUM
(Superseded to ST32659)

$129.99

$

Usually ships in 3-6 days

0

22

Toro ST36561

FILTER-SAFETY
(Superseded to 98-2982)

$31.99

$

In Stock, only 2 left!

0

23

Toro ST39911

BAND-MOUNTING, AIR CLEANER
(Superseded to 95-5806)

$31.99

$

Usually ships in 3-6 days

0

24

Toro 33104-035

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

25

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0

26

Toro 125-6365

GASKET

$51.99

$

Usually ships in 3-6 days

0

27

Toro ST36307

SWITCH-IGNITION

$543.99

$

Usually ships in 3-6 days

0

28

Toro ST30391

HOUSING-MOUNTING, PUMP

$955.99

$

Usually ships in 3-6 days

0

29

Toro ST30345

FILTER-FUEL/WATER SEPARATOR

$405.99

$

Usually ships in 3-6 days

0

30

Toro 125-6366

INSERT-THREAD

$367.99

$

Usually ships in 3-6 days

0

31

Toro ST81262

WASHER-FLAT

$

$

Currently unavailable

32

Toro ST80837

SCREW-HH
(Superseded to 33115-040)

$1.99

$

Usually ships in 3-6 days

0

33

Toro ST36558

AIR CLEANER ASM

$518.99

$

Usually ships in 3-6 days

0

33:1

Toro ST39918

COVER-AIR CLEANER

$192.99

$

Usually ships in 3-6 days

0

33:2

Toro ST36559

ELEMENT-FILTER, AIR

$130.99

$

Usually ships in 3-6 days

0

33:3

Toro 125-6363

COVER-LATCHING

$106.99

$

Usually ships in 3-6 days

0

33:4

Toro ST36560

VALVE-VACUATOR

$32.99

$

Usually ships in 3-6 days

0
