68038 (MB-1600) - Toro Mud Buggy (SN: 407900000 - 410171430) Main Frame Assembly Parts Diagram

Mud Buggy

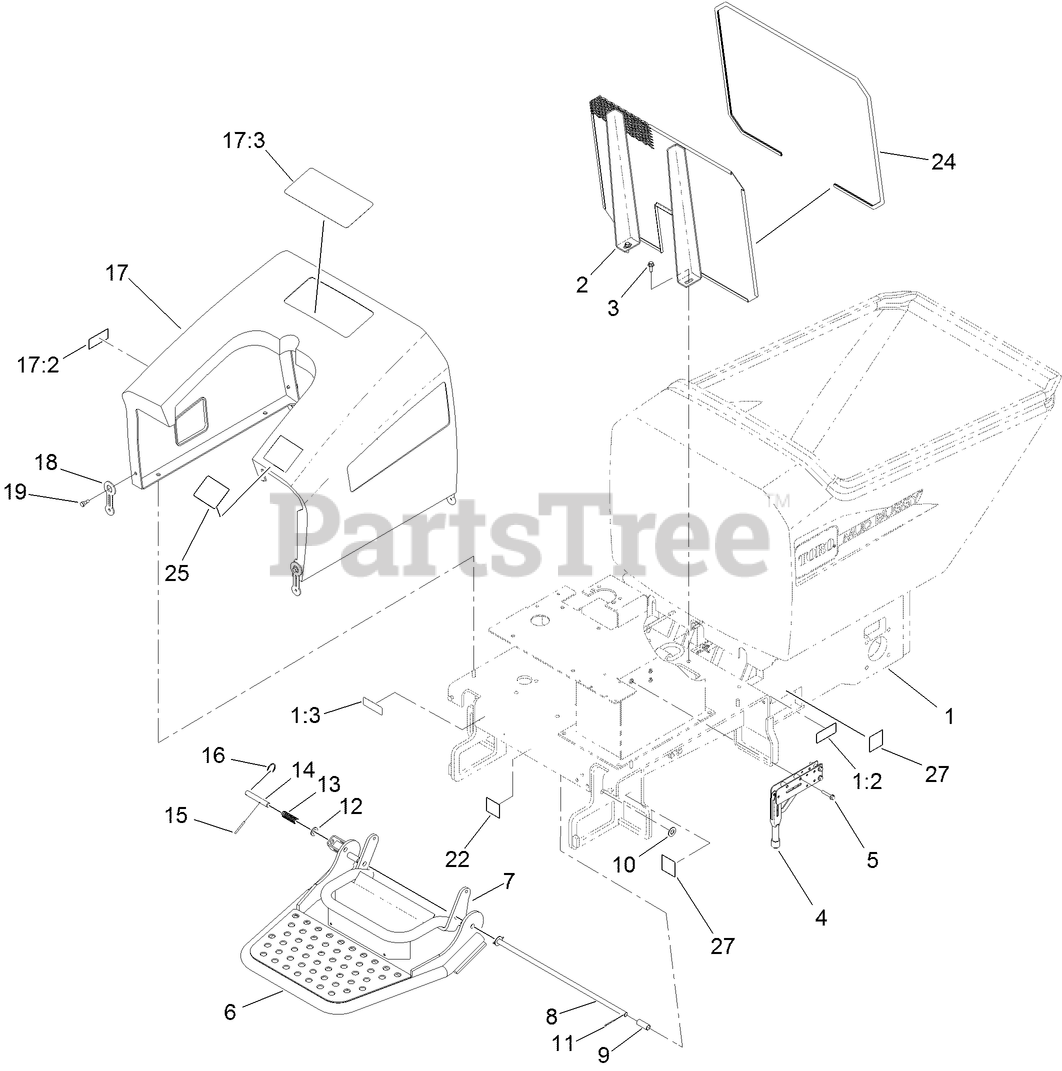

Main Frame Assembly Parts Diagram

  • Title
1

Toro 127-2834

MAIN FRAME ASM

$5741.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-4959

DECAL-WARNING, CRUSHING

$9.99

$

Usually ships in 3-6 days

0

1:3

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Toro 125-8233-03

GUARD-SPLASH

$610.99

$

Usually ships in 3-6 days

0

3

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

4

Toro ST38095

LEVER

$447.99

$

Usually ships in 3-6 days

0

5

Toro 33104-045

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

6

Toro 125-8696-03

STEP-PLATFORM

$706.99

$

Usually ships in 3-6 days

0

7

Toro 125-8235-03

PEDAL-BRAKE

$657.99

$

Usually ships in 3-6 days

0

8

Toro ST45113

SHAFT-PIVOT, STEP

$43.99

$

Usually ships in 3-6 days

0

9

Toro ST45249

SPACER-BRAKE

$12.99

$

Usually ships in 3-6 days

0

10

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

11

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 7

0

12

Toro 33098-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro ST45055

SPRING-COMPRESSION

$44.99

$

Usually ships in 3-6 days

0

14

Toro ST45056

PIN-LOCKOUT, STEP

$64.99

$

Usually ships in 3-6 days

0

15

$1.99

$

Usually ships in 3-6 days

0

16

Toro ST81124

RING-SPLIT

$4.99

$

Usually ships in 3-6 days

0

17

Toro 127-2833

ENGINE COWL ASM

$1341.99

$

Usually ships in 3-6 days

0

17:2

Toro 125-4963

DECAL-SURFACE, HOT

$5.99

$

Usually ships in 3-6 days

0

17:3

Toro 127-2855

DECAL-WARNING

$20.99

$

Usually ships in 3-6 days

0

18

Toro ST47182

LATCH-RUBBER

$11.99

$

In Stock, only 3 left!

0

19

Toro ST81130

SCREW-HSBH

$5.99

$

Usually ships in 3-6 days

0

22

Toro 125-8190

DECAL-BRAKE PEDAL

$20.99

$

Usually ships in 3-6 days

0

24

Toro 127-5590

TRIM-SPLASH GUARD

$53.99

$

Usually ships in 3-6 days

0

25

Toro 130-2844

DECAL-DUMP

$21.99

$

Usually ships in 3-6 days

0

27

Toro 125-4967

DECAL-LIFT HERE

$2.49

$

Usually ships in 3-6 days

0
