68038 (MB-1600) - Toro Mud Buggy (SN: 404320000 - 405499999) Engine and Fuel Tank Assembly Parts Diagram

Mud Buggy

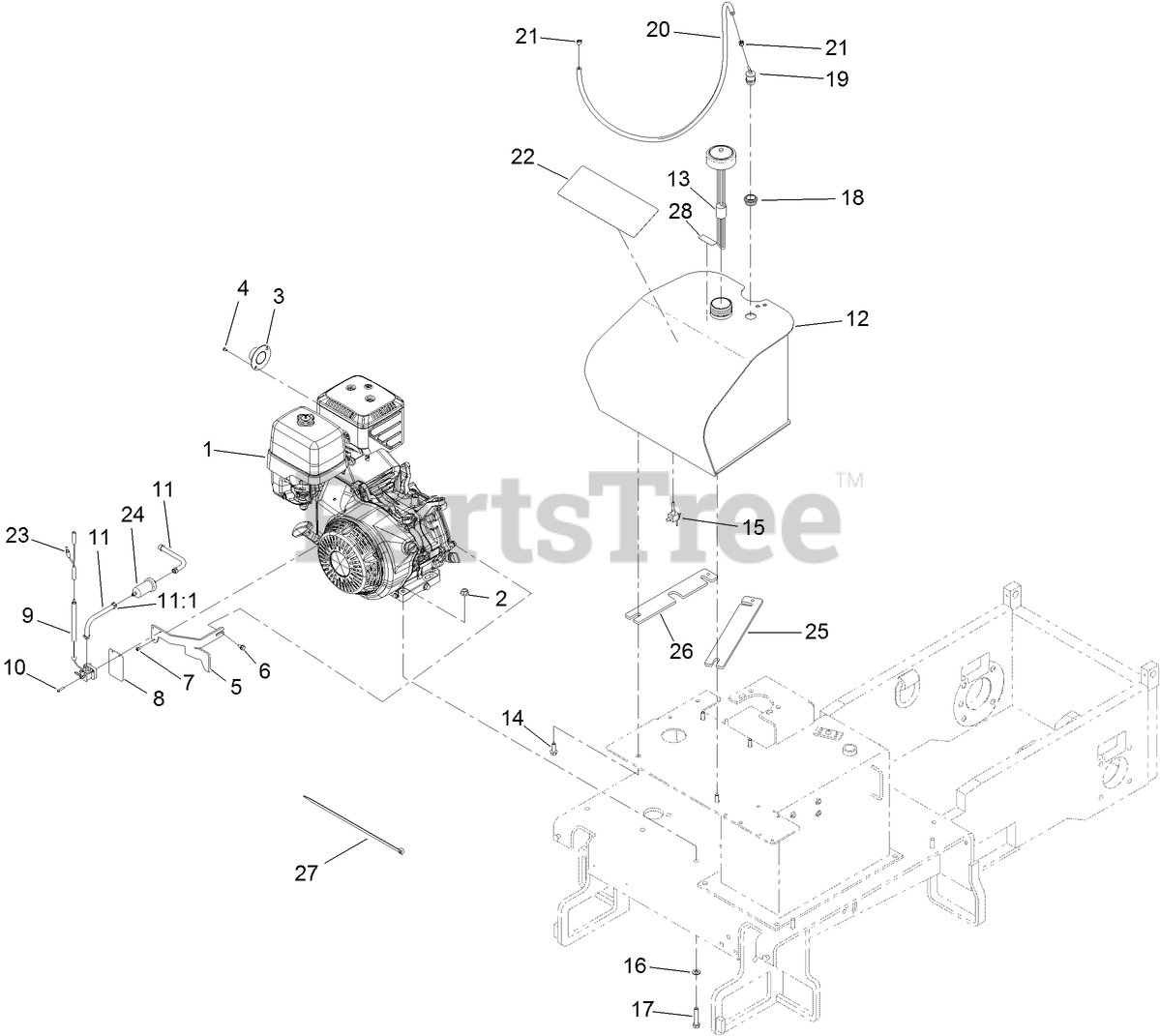

Engine and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 125-4819

ENGINE-HONDA, GX390

Note: Obtain parts from www.honda-engines.com

$2936.99

$

Usually ships in 3-6 days

0

2

Toro 33005-00

NUT-HF

$2.49

$

In Stock, only 1 left!

0

3

Toro ST50553-03

DEFLECTOR-EXHAUST

$53.99

$

Usually ships in 3-6 days

0

4

Toro 125-0519

SCREW-SELF TAPPING

$1.99

$

In Stock, only 2 left!

0

5

Toro ST45910-03

BRACKET-SWITCH, STOP FUEL

$108.99

$

Usually ships in 3-6 days

0

6

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

7

Toro 115-8733

SCREW-HSH

$15.99

$

Usually ships in 3-6 days

0

8

Toro 125-4966

HANG TAG-RUN, STOP

$6.99

$

Usually ships in 3-6 days

0

9

Toro ST58582

FUEL SHUT OFF VALVE ASM

$210.99

$

In Stock, only 1 left!

0

10

Toro 119-7444

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 127-2810

FUEL HOSE KIT

$41.99

$

Usually ships in 3-6 days

0

11:1

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 130-2101

TANK ASM

$1339.99

$

Usually ships in 3-6 days

0

13

Toro 130-2117

GAUGE-FUEL

$91.99

$

Usually ships in 3-6 days

0

14

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

15

Toro ST39056

VALVE-STRAINER

$33.99

$

Usually ships in 3-6 days

0

16

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Toro 33115-050

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

18

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 16

0

19

Toro 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

20

Toro 108-9698

HOSE-FUEL

$45.99

$

Usually ships in 3-6 days

0

21

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

22

Toro 125-4958

DECAL-OPERATION

$12.99

$

Usually ships in 3-6 days

0

23

Toro 127-2880

HARNESS-WIRE, SHUT DOWN T

$33.99

$

Usually ships in 3-6 days

0

24

Toro ST36144

FILTER-FUEL

$52.99

$

Usually ships in 3-6 days

0

25

Toro 127-5595-03

PLATE-TANK STAND OFF

$20.99

$

Usually ships in 3-6 days

0

26

Toro 127-5598-03

PLATE-TANK STAND OFF

$19.99

$

Usually ships in 3-6 days

0

27

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

28

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0
