68037 (e2500) - Toro Electric Ultra Buggy (SN: 414865903 - 415399999) Pump Unit Assembly No. 144-1716 Parts Diagram

Electric Ultra Buggy

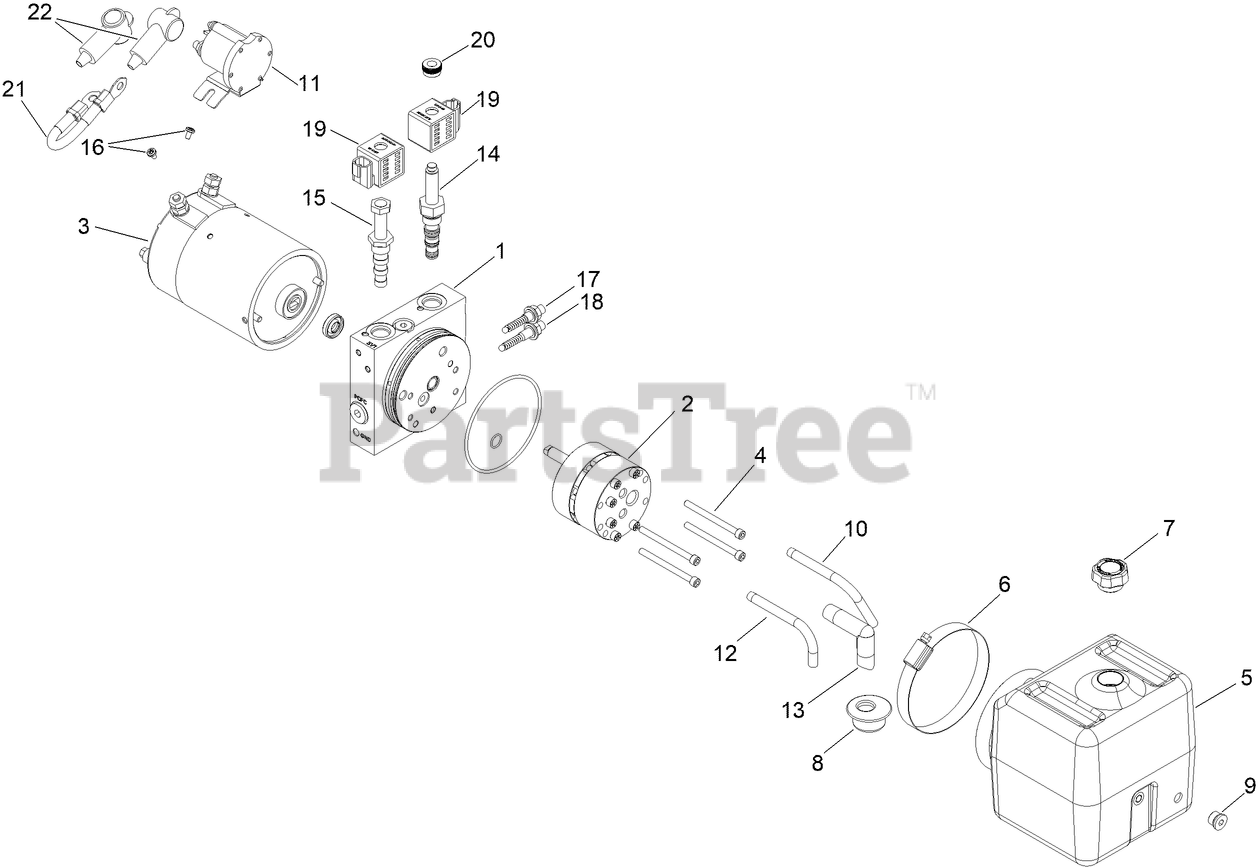

Pump Unit Assembly No. 144-1716 Parts Diagram

  • Title

1

Toro 147-3239

BASE ASM,M3556,MOD,STD MTR/MT

$

$

Currently unavailable

2

Toro 147-3240

P ASSY,QM MDLR,DC,BRGS BLD RSV

$

$

Currently unavailable

3

Toro 147-3241

MOTOR-DC,36/48V,4.5IN,2 TERM,UL

$

$

Currently unavailable

4

Toro 147-3242

RESERVOIR-PLASTIC,6.7X6.7X7.5,H/MT

$

$

Currently unavailable

5

Toro 147-3243

SCREW-SHC,1/4-20 X 3.0,BLK OX

$

$

Currently unavailable

6

Toro 147-3244

CLAMP-HOSE,WORM GEAR,RSV,M-SER

$

$

Currently unavailable

7

Toro 147-3245

PLUG-RESERVOIR,BREATHER-FILLER

$

$

Currently unavailable

8

Toro 147-3246

FILTER-SCREEN M-SERIES SUCT.

$

$

Currently unavailable

9

Toro 147-3247

PLUG,SAE O-RING,9/16-18,HEX,SO

$

$

Currently unavailable

10

Toro 147-3248

TUBE-RETURN,90DEG,1/8NPT,M301

$

$

Currently unavailable

11

Toro 147-3249

SWITCH,SOL ACT MTR ST,48VLT

$

$

Currently unavailable

12

Toro 147-3250

TUBE-RETURN,90DEG,1/8NPTF

$

$

Currently unavailable

13

Toro 147-3251

TUBE-SUCTION,90 DGR,3/8NPT

$

$

Currently unavailable

14

Toro 147-3252

CARTRIDGE,2W/2P W/ PO CHCK,NC

$

$

Currently unavailable

15

Toro 147-3253

CARTRIDGE,4-W/2-P,#8,1/2"STEM

$

$

Currently unavailable

16

Toro 147-3254

SCREW-PAN HD,TORX,10-32 X 5/16

$

$

Currently unavailable

17

Toro 147-3255

VALVE ASM,BLUE,>1000 PSI,R/V

$

$

Currently unavailable

18

Toro 147-3256

VALVE ASM,BLUE,>1000 PSI,LNG SCW,R/V

$

$

Currently unavailable

19

Toro 147-3257

COIL,48VDC,#8,DEUTSCH,UL

$

$

Currently unavailable

20

Toro 147-3258

NUT,VALVE,COIL,SIZE 8,KETA,TAL

$

$

Currently unavailable

21

Toro 147-3259

CABLE-INSULATED W/LUGS 5IN,6GA,UL

$

$

Currently unavailable

22

Toro 147-3260

BOOT-TERMINAL,#4 CABLE,INSULATED

$

$

Currently unavailable
