68037 (e2500) - Toro Electric Ultra Buggy (SN: 400000000 - 412999999) Battery Assembly Parts Diagram

Electric Ultra Buggy

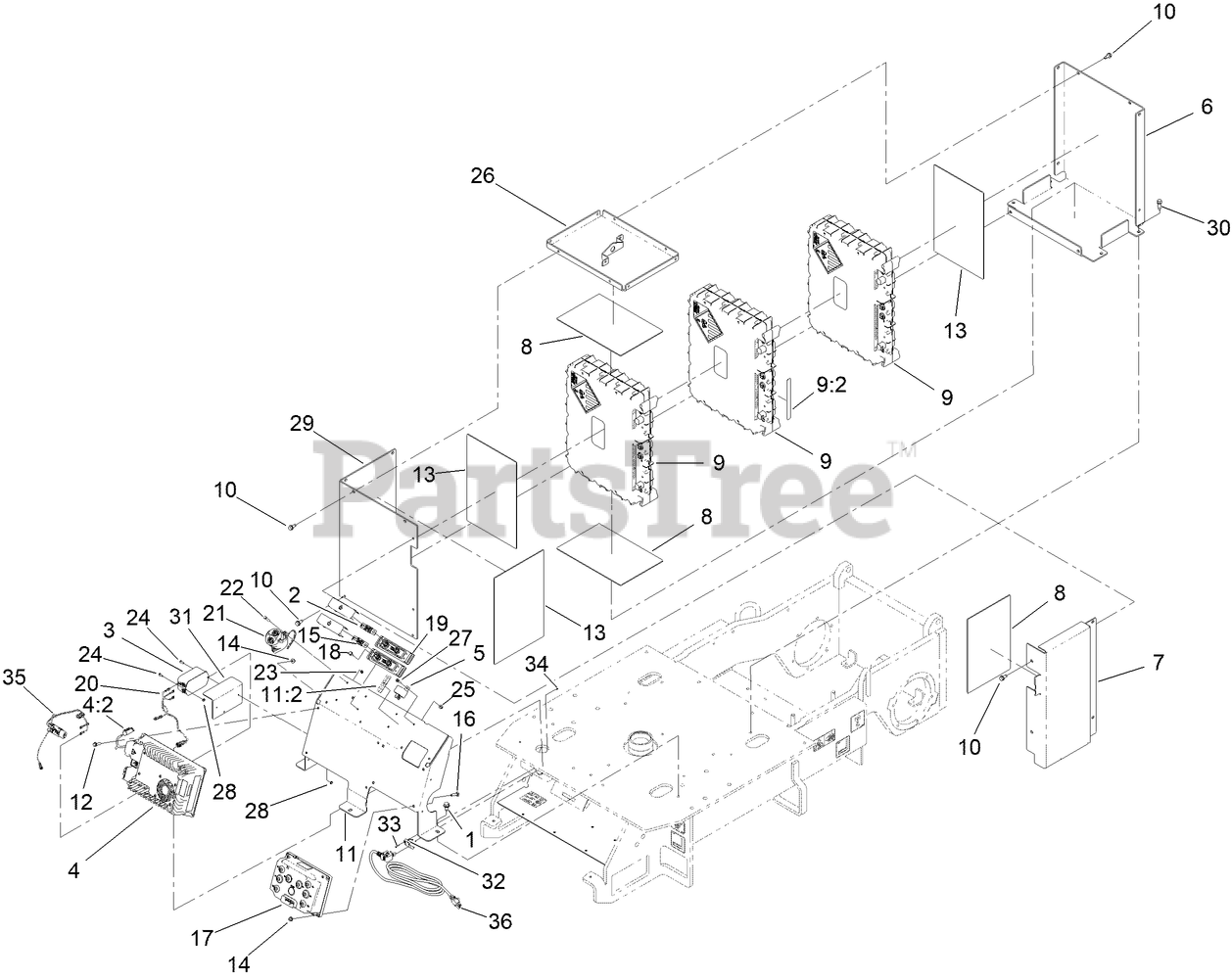

Battery Assembly Parts Diagram

  • Title

1

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

2

Toro 122-2561

FUSE-200A

$18.99

$

Usually ships in 0 days

0

3

Toro 147-3225

FILTER

$203.99

$

Usually ships in 0 days

0

4

Toro 145-1177

CHARGER-ONBOARD

$1735.99

$

Usually ships in 0 days

0

4:2

Toro 147-3234

KIT-SERVICE, DC HARNESS

$

$

Currently unavailable

5

Toro 122-2401

RELAY, 48V COIL, 50A AT 48V

$84.99

$

Usually ships in 3-6 days

0

6

Toro 145-4919-0P

MOUNT-BATTERY, BASE

$281.99

$

Usually ships in 0 days

0

7

Toro 145-4995-0P

COVER-BATTERY, SIDE

$

$

Currently unavailable

8

Toro 145-4925

PAD-FOAM

$8.49

$

Usually ships in 3-6 days

0

9

Toro 145-5320

BATTERY ASM

$2456.99

$

Usually ships in 0 days

0

9:2

Toro 144-0276

DECAL-WARNING, BATTERY

$

$

Currently unavailable

10

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

11

Toro 147-3223

BRACKET-ELECTRICAL

$

$

Currently unavailable

11:2

Toro 145-1173

DECAL-FUSE

$3.49

$

Usually ships in 3-6 days

0

12

Toro 119-1066

SCREW-HFH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 145-4926

PAD-FOAM

$17.99

$

Usually ships in 3-6 days

0

14

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0

15

Toro 122-2627

FUSE-70A

$42.99

$

Usually ships in 3-6 days

0

16

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

17

Toro 138-8984

INV/CTRLR-48V,DUAL 94Arms

$2186.99

$

Usually ships in 0 days

0

18

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

19

Toro 145-4958

HOLDER-FUSE

$27.99

$

Usually ships in 3-6 days

0

20

Toro 122-2745

HARNESS-WIRE, AC CHARGER

$165.99

$

Usually ships in 0 days

0

21

Toro 122-2594

CONTACTOR-48V

$492.99

$

Usually ships in 0 days

0

22

Toro 87-5150

BOLT

$1.99

$

Usually ships in 3-6 days

0

23

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3250-26

SCREW-PPH

$7.99

$

Usually ships in 3-6 days

0

25

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

26

Toro 147-3202-0P

COVER-BATTERY [PRIMED]

$

$

Currently unavailable

27

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

28

Toro 3296-54

NUT-LOCK

$5.49

$

In Stock, only 2 left!

0

29

Toro 145-4993-0P

COVER-BATTERY, SIDE

$

$

Currently unavailable

30

Toro 121-5844

SCREW-THD FORM, HWH

$1.49

$

In Stock, only 3 left!

0

31

Toro 147-3216-0P

BRACKET-FILTER

$15.99

$

Usually ships in 0 days

0

32

Toro 147-3230

CONNECTOR-IEC

$10.99

$

Usually ships in 0 days

0

33

Toro 510-0015

Ball, Governor

$

$

Currently unavailable

34

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

35

Toro 122-2744

HARNESS-WIRE, AC CHARGER

$305.99

$

Usually ships in 0 days

0

36

Toro 137-7983

CORD-AC, 120V

$85.99

$

Usually ships in 3-6 days

0
