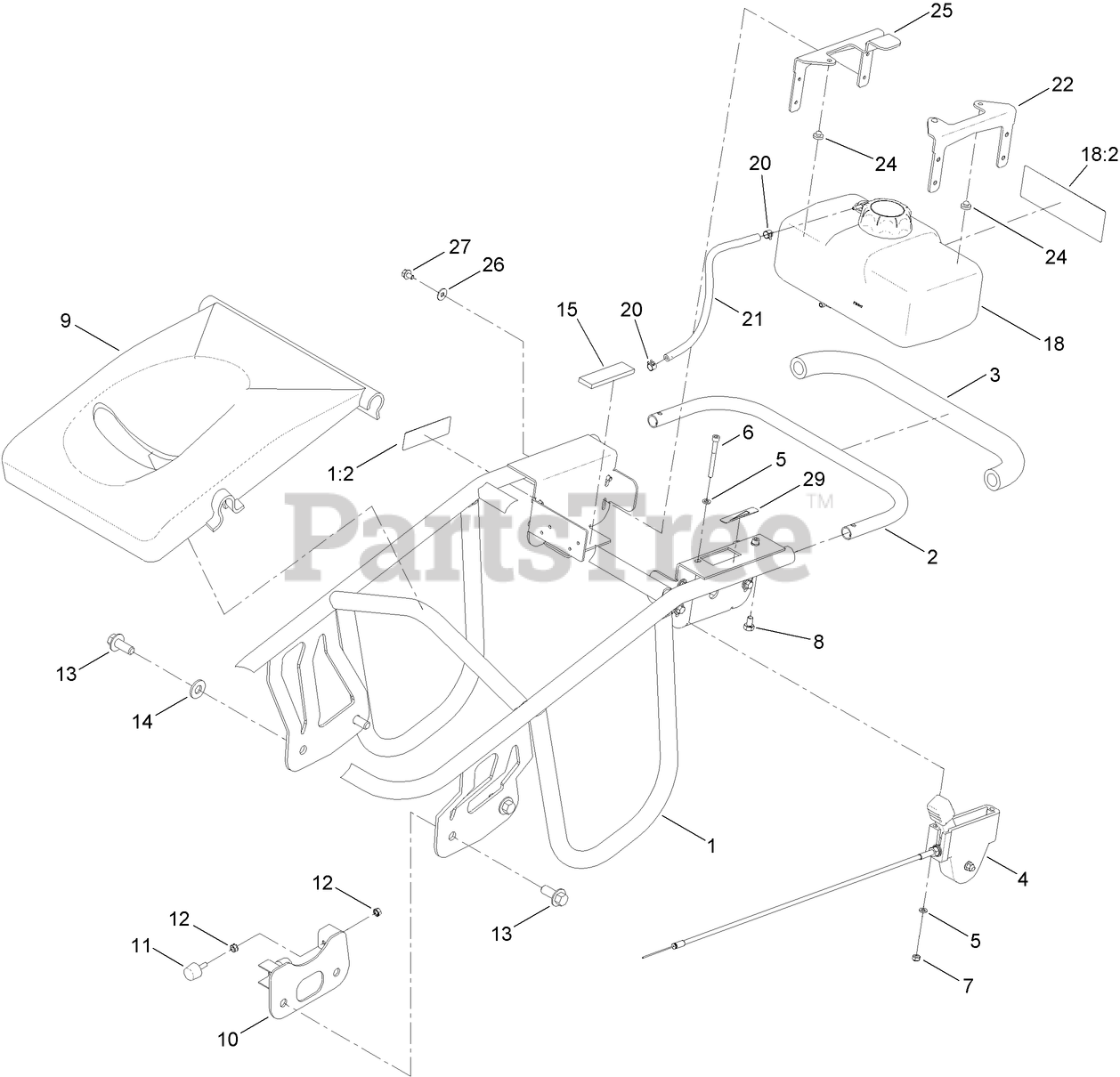

68036 (VR-3500) - Toro Rammer Compactor (SN: 314000001 - 314999999) (2014) FRAME, HANDLE AND FUEL TANK ASSEMBLY Parts Diagram

Rammer Compactor

FRAME, HANDLE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 127-2877

HANDLE ASM

$713.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

2

Toro ST39460-03

HANDLE-GRIP, TUBE

$123.99

$

Usually ships in 3-6 days

0

3

Toro ST39470

GRIP-HAND

$53.99

$

Usually ships in 3-6 days

0

4

Toro 125-8673

LEVER-THROTTLE

$185.99

$

Usually ships in 3-6 days

0

5

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro ST80940

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 115-7373

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

8

Toro ST80586

SCREW-HWH
(Superseded to 9266934)

$8.99

$

In Stock, only 2 left!

0

9

Toro 125-4804

COVER-ENGINE

$246.99

$

Usually ships in 3-6 days

0

10

Toro ST39424-03

STOPPER

$79.99

$

Usually ships in 3-6 days

0

11

Toro ST39427

MOUNT-SHOCK

$17.99

$

Usually ships in 3-6 days

0

12

Toro 98-5845

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

13

Toro 33106-020

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

14

Toro 29-8910

WASHER

$0.99

$

In Stock, only 1 left!

0

15

Toro 125-6239

PAD-TANK, FUEL

$2.49

$

Usually ships in 3-6 days

0

18

Toro 127-7574

1 GALLON FUEL TANK ASM

$548.99

$

Usually ships in 3-6 days

0

18:2

Toro 125-8191

DECAL-WARNING

$

$

Currently unavailable

20

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

21

Toro 115-4735

HOSE-FUEL

$9.99

$

Usually ships in 3-6 days

0

22

Toro ST66668-03

BRACKET-TOP, FUEL TANK

$61.99

$

Usually ships in 3-6 days

0

24

Toro ST47292

BUMPER-RUBBER

$2.49

$

Usually ships in 3-6 days

0

25

Toro 127-7556-03

GUARD-FUEL TANK, TOP

$62.99

$

Usually ships in 3-6 days

0

26

Toro ST81181

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

29

Toro 125-8182

DECAL-THROTTLE

$2.99

$

Usually ships in 3-6 days

0
