68027 (FP-4000) - Toro Forward Plate Compactor (SN: 402300000 - 404319999) Engine Assembly Parts Diagram

Forward Plate Compactor

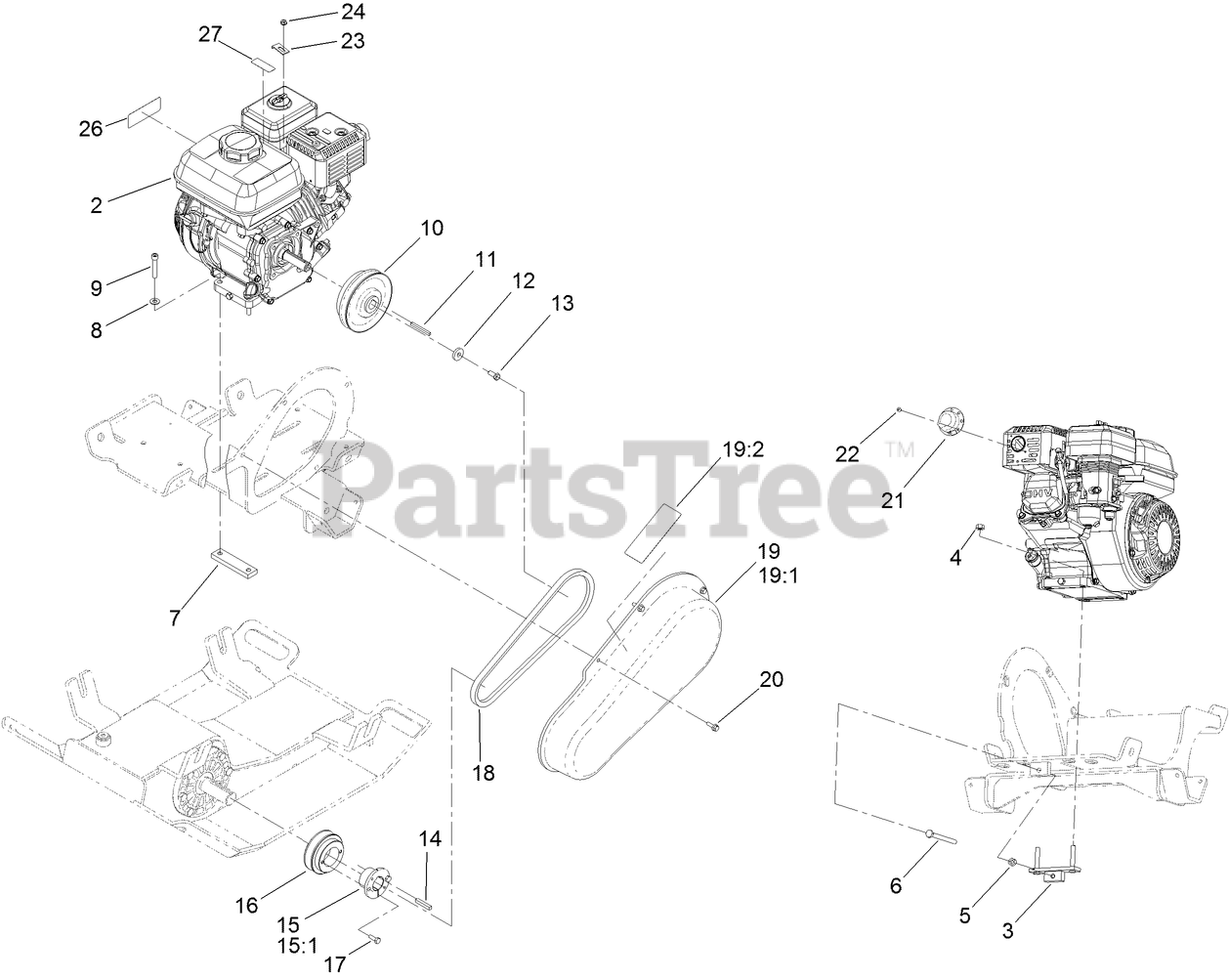

Engine Assembly Parts Diagram

  • Title

2

Toro 125-4813

ENGINE-HONDA, GX160

$1392.99

$

Usually ships in 3-6 days

0

3

Toro ST50257

BRACKET-ADJUSTER, ENGINE

$63.99

$

Usually ships in 3-6 days

0

4

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0

5

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

6

Toro ST81191

SCREW

$7.99

$

Usually ships in 3-6 days

0

7

Toro ST50506

PLATE-NUT, ENGINE

$48.99

$

Usually ships in 3-6 days

0

8

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

9

Toro 127-0517

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

10

Toro ST32347

CLUTCH, S-PLATE

$389.99

$

Usually ships in 3-6 days

0

11

Toro ST80611

See Supercession: 105-9716
(Superseded to 105-9716)

$7.99

$

In Stock, only 1 left!

0

12

Toro ST39233

WASHER

$3.99

$

Usually ships in 3-6 days

0

13

Toro 323-56

SCREW-HH

$

$

Not available

14

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 9

0

15

Toro 138-3106

BUSHING-LOCKING

$56.99

$

Usually ships in 3-6 days

0

15:1

Toro 3245-42

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

16

Toro ST28314

SHEAVE-ECCENTRIC

$129.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro ST50500

BELT-V

$66.99

$

In Stock, only 2 left!

0

19

Toro 127-2819

GUARD-BELT

$482.99

$

Usually ships in 3-6 days

0

19:1

Toro 125-4805

See Supercession: 127-2819
(Superseded to 127-2819)

$482.99

$

Usually ships in 3-6 days

0

19:2

Toro 125-4943

DECAL-WARNING, PLATE

$3.49

$

Usually ships in 3-6 days

0

20

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

21

Toro 125-3866

DEFLECTOR

$45.99

$

Usually ships in 3-6 days

0

22

Toro 125-0519

SCREW-SELF TAPPING

$1.99

$

In Stock, only 2 left!

0

23

Toro ST42790

CLIP-THROTTLE

$8.49

$

Usually ships in 3-6 days

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 12

0

26

Toro 133-5619

DECAL-ARRESTER, SPARK

$3.49

$

Usually ships in 3-6 days

0

27

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0
