68024 (MM-12511H-S) - Toro Mortar Mixer (SN: 314000001 - 314999999) (2014) FRAME AND AXLE ASSEMBLY Parts Diagram

Mortar Mixer

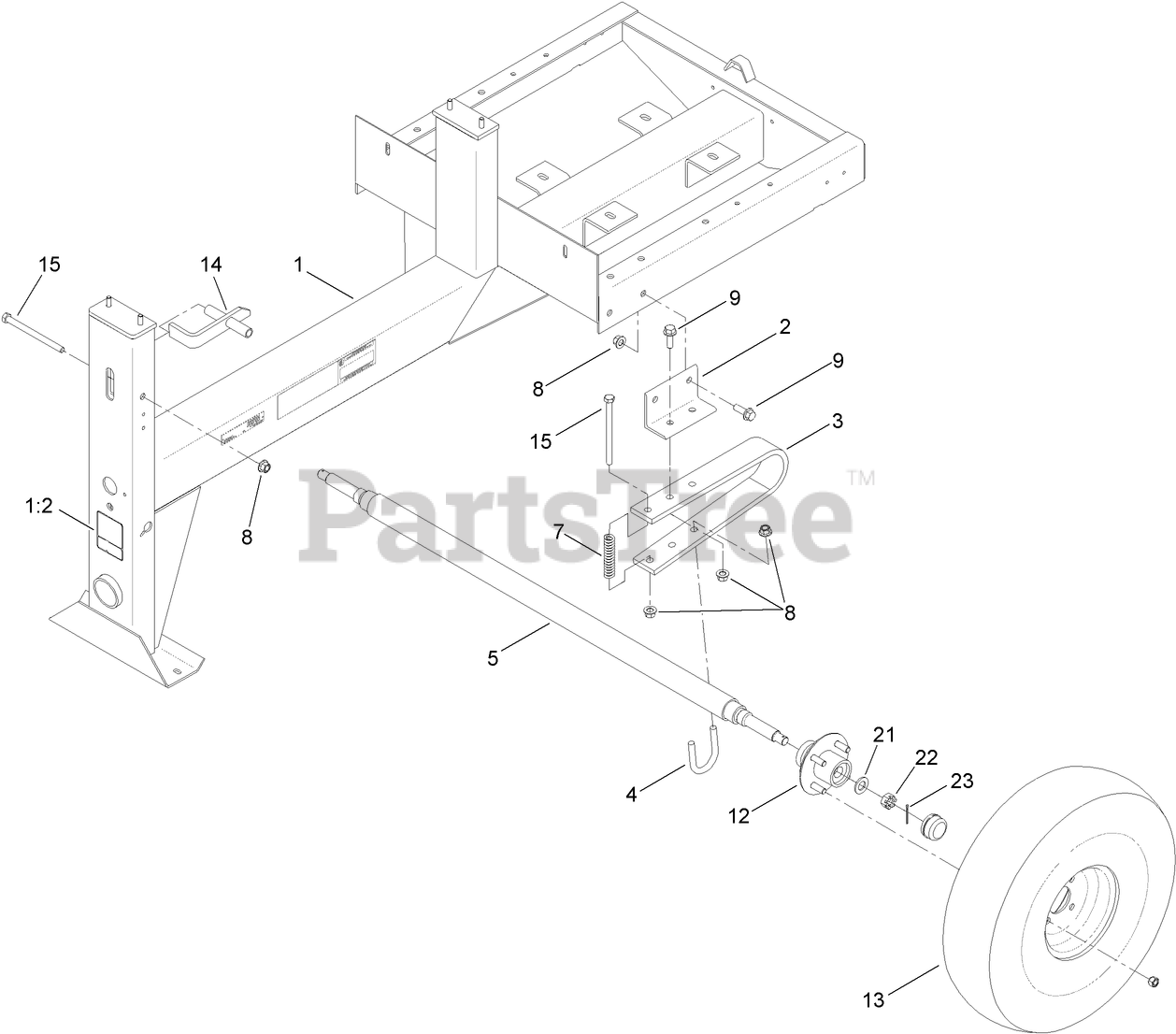

FRAME AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1682

FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-8216

DECAL-SAFETY CHAIN, TOWING

$1.99

$

Usually ships in 3-6 days

0

2

Toro ST26949-03

BRACKET-AXLE, SPRING

$100.99

$

Usually ships in 3-6 days

0

3

Toro ST26971

SPRING-LEAF

$210.99

$

In Stock, only 1 left!

0

4

Toro ST26195

BOLT-U

$13.99

$

Usually ships in 3-6 days

0

5

Toro ST21460-03

AXLE-SPRING

$1119.99

$

Usually ships in 3-6 days

0

7

Toro ST34972

SPRING-COIL

$16.99

$

Usually ships in 3-6 days

0

8

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

9

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

12

Toro 125-8171

HUB ASM
(Superseded to 139-1328)

$197.99

$

Usually ships in 3-6 days

0

13

Toro ST32307

TIRE AND RIM ASM

$258.99

$

In Stock, only 2 left!

0

14

Toro ST24027-03

LATCH-DRUM
(Superseded to 132-7154-03)

$47.99

$

Usually ships in 3-6 days

0

15

Toro 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

21

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

22

Toro ST80054

NUT

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 9

0
