68024 C (MM-12511H-S) - Toro Mortar Mixer (SN: 314000001 - 314999999) (2014) ENGINE AND GEARCASE ASSEMBLY Parts Diagram

Mortar Mixer

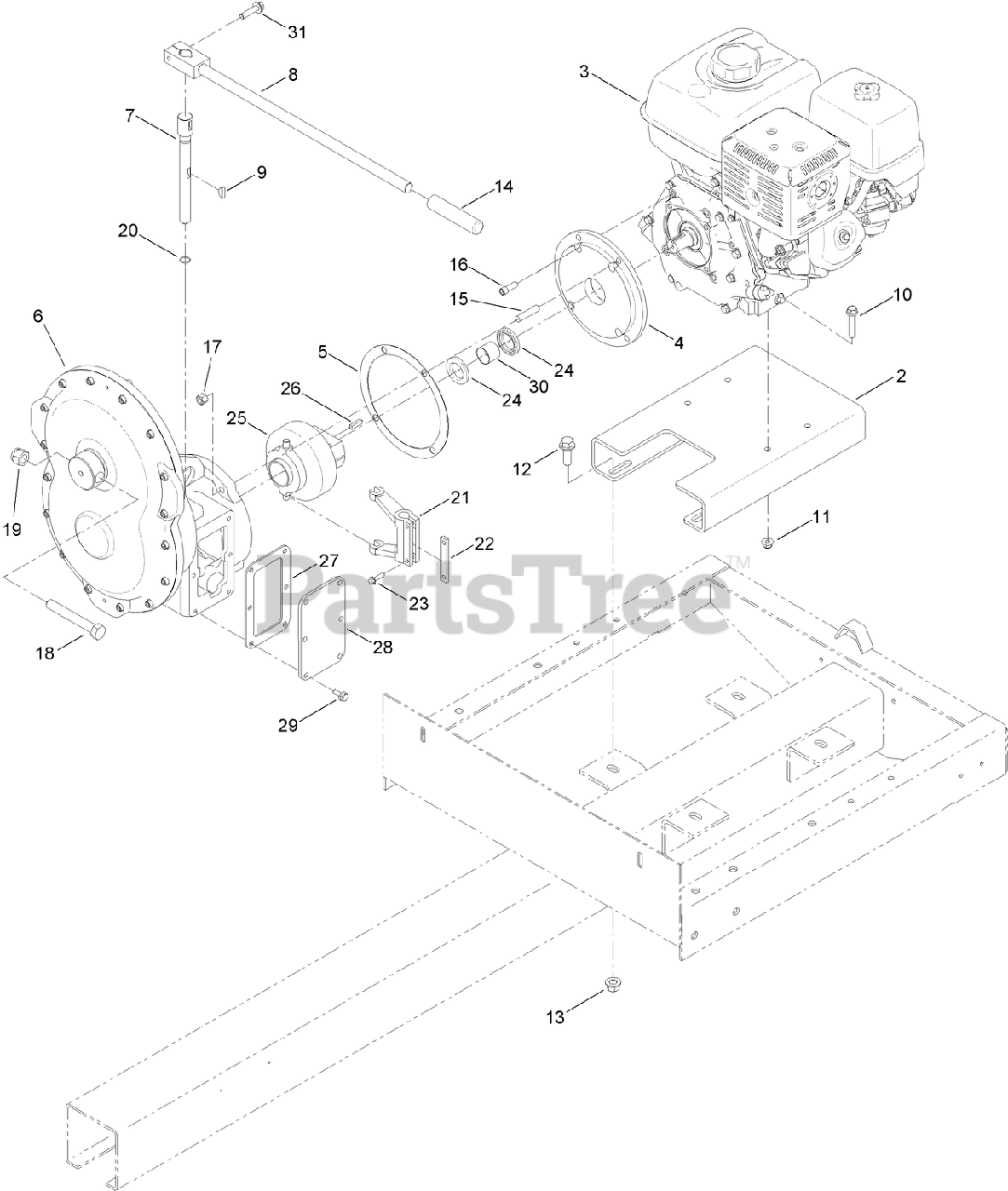

ENGINE AND GEARCASE ASSEMBLY Parts Diagram

  • Title
2

Toro ST28399-03

BASE-MOTOR

$312.99

$

Usually ships in 3-6 days

0

3

Toro 125-4993

ENGINE-HONDA, GX340

Note: Obtain parts from www.honda-engines.com

$2954.99

$

Usually ships in 3-6 days

0

4

Toro ST28398

ADAPTOR-ENGINE

$731.99

$

Usually ships in 3-6 days

0

5

Toro ST27010

GASKET-ADAPTER, ENGINE

$7.99

$

Usually ships in 3-6 days

0

6

Toro ST22075-03

GEARCASE ASM
(Superseded to ST22075)

$4539.99

$

Usually ships in 3-6 days

0

7

Toro ST28094

SHAFT-CLUTCH

$186.99

$

Usually ships in 3-6 days

0

8

Toro ST22099-03

HANDLE-CLUTCH

$256.99

$

Usually ships in 3-6 days

0

9

$6.99

$

Usually ships in 3-6 days

0

10

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

13

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro ST34765

GRIP-FLEX

$4.99

$

Usually ships in 3-6 days

0

15

$41.99

$

Usually ships in 3-6 days

0

16

Toro ST29469

SCREW-HSH

$14.99

$

Usually ships in 3-6 days

0

17

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 327-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

19

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro ST47180

O-Ring

$0.99

$

Usually ships in 3-6 days

0

21

Toro ST28093

FORK-CLUTCH

$237.99

$

Usually ships in 3-6 days

0

22

Toro ST28181

SPACER-FORK, CLUTCH

$13.99

$

Usually ships in 3-6 days

0

23

Toro 120-4654

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

24

Toro ST32179

SEAL-SHAFT

$33.99

$

Usually ships in 3-6 days

0

25

Toro ST30401

CLUTCH-DISCONNECT, SLIP

$1566.99

$

Usually ships in 3-6 days

0

26

$5.99

$

In Stock, only 1 left!

0

27

Toro ST32253

GASKET-ACCESS, CLUTCH

$18.99

$

Usually ships in 3-6 days

0

28

Toro ST42461-03

COVER-CLUTCH ACCESS

$29.99

$

Usually ships in 3-6 days

0

29

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

30

Toro ST28844

BUSHING-SHAFT

$56.99

$

In Stock, only 1 left!

0

31

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0
