68024 C (MM-12511H-S) - Toro Mortar Mixer (SN: 314000001 - 314999999) (2014) DRUM ASSEMBLY Parts Diagram

Mortar Mixer

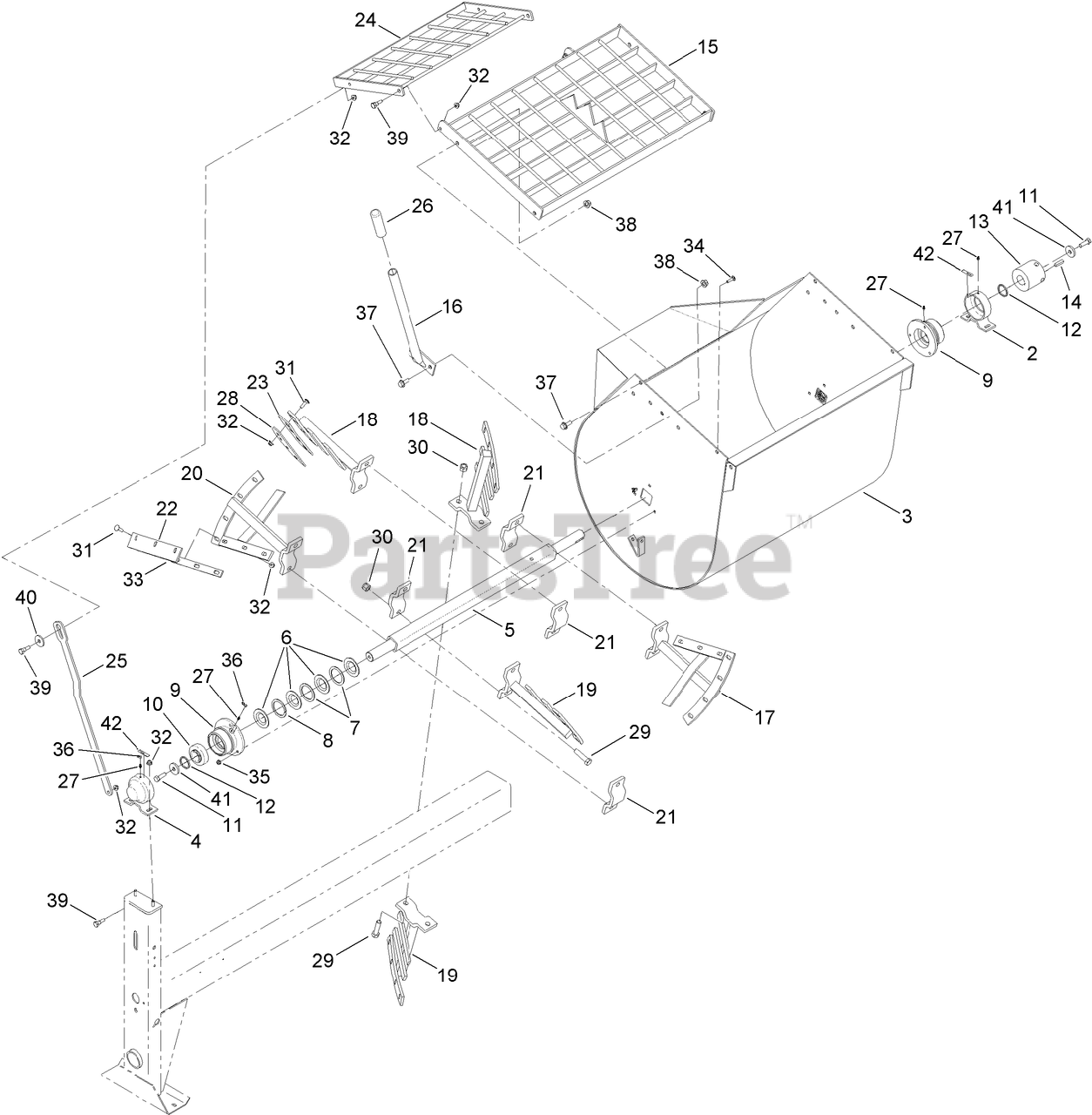

DRUM ASSEMBLY Parts Diagram

  • Title
2

Toro ST24021-01

TRUNNION

$103.99

$

In Stock, only 1 left!

0

$2605.99

$

Usually ships in 3-6 days

0

4

Toro ST36574-01

TRUNNION-CAPPED

$100.99

$

Usually ships in 3-6 days

0

5

Toro ST22215-01

SHAFT-DRUM
(Superseded to ST22345)

$513.99

$

Usually ships in 3-6 days

0

6

Toro ST32324

SEAL-DRUM

$11.99

$

In Stock, only 2 left!

0

7

Toro ST24017

WASHER-FLAT

$5.49

$

In Stock, only 4 left!

0

8

Toro ST25881

WASHER-SPLIT

$13.99

$

In Stock, only 2 left!

0

9

Toro ST32326-01

HOUSING-BEARING
(Superseded to 132-4117)

$181.99

$

In Stock, only 1 left!

0

10

Toro ST32003

BEARING-BALL

$138.99

$

In Stock, only 3 left!

0

11

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

12

Toro ST44284

SPACER-SHAFT, DRUM
(Superseded to 138-3163)

$11.99

$

Usually ships in 3-6 days

0

13

Toro ST28087-03

COUPLING-SHAFT

$203.99

$

Usually ships in 3-6 days

0

14

Toro ST81060

KEY-SQUARE

$2.99

$

In Stock, only 1 left!

0

15

$1034.99

$

Usually ships in 3-6 days

0

16

Toro ST24763-01

HANDLE-DUMP

$95.99

$

Usually ships in 3-6 days

0

17

$214.99

$

Usually ships in 3-6 days

0

18

$196.99

$

Usually ships in 3-6 days

0

19

$196.99

$

Usually ships in 3-6 days

0

20

$214.99

$

Usually ships in 3-6 days

0

21

Toro ST26882-01

CLAMP-PADDLE

$95.99

$

Usually ships in 3-6 days

0

22

Toro ST24105

BLADE-RUBBER, SHORT
(Superseded to 132-4144)

$10.99

$

Usually ships in 3-6 days

0

23

Toro ST24106

BLADE-RUBBER, LONG
(Superseded to 132-4142)

$14.99

$

Usually ships in 3-6 days

0

24

Toro 125-6273-01

GUARD-MOVEABLE

$384.99

$

Usually ships in 3-6 days

0

25

Toro 125-8154-03

BAR-GUARD LIFT

$102.99

$

Usually ships in 3-6 days

0

26

Toro ST47023

GRIP-HAND

$11.99

$

Usually ships in 3-6 days

0

27

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 4 left!

0

28

Toro ST28137-01

BAR-LONG, BACKER

$79.99

$

Usually ships in 3-6 days

0

29

Toro 327-7

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

30

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

32

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro ST24103-01

BAR-BACKER, SHORT

$71.99

$

Usually ships in 3-6 days

0

34

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

36

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

37

Toro 3234-38

SCREW-HHF

$5.99

$

In Stock, only 3 left!

0

38

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 80-1300

BOLT-SHOULDER

$48.99

$

Usually ships in 3-6 days

0

40

Toro 106-2008

Washer-Thrust

$7.99

$

Usually ships in 3-6 days

0

41

Toro ST26326

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

42

Toro 125-8175

DECAL-GREASE

$1.49

$

In Stock, only 4 left!

0
