68021 C (MM-858H-P) - Toro Mortar Mixer (SN: 313000001 - 313999999) (2013) DRUM ASSEMBLY Parts Diagram

Mortar Mixer

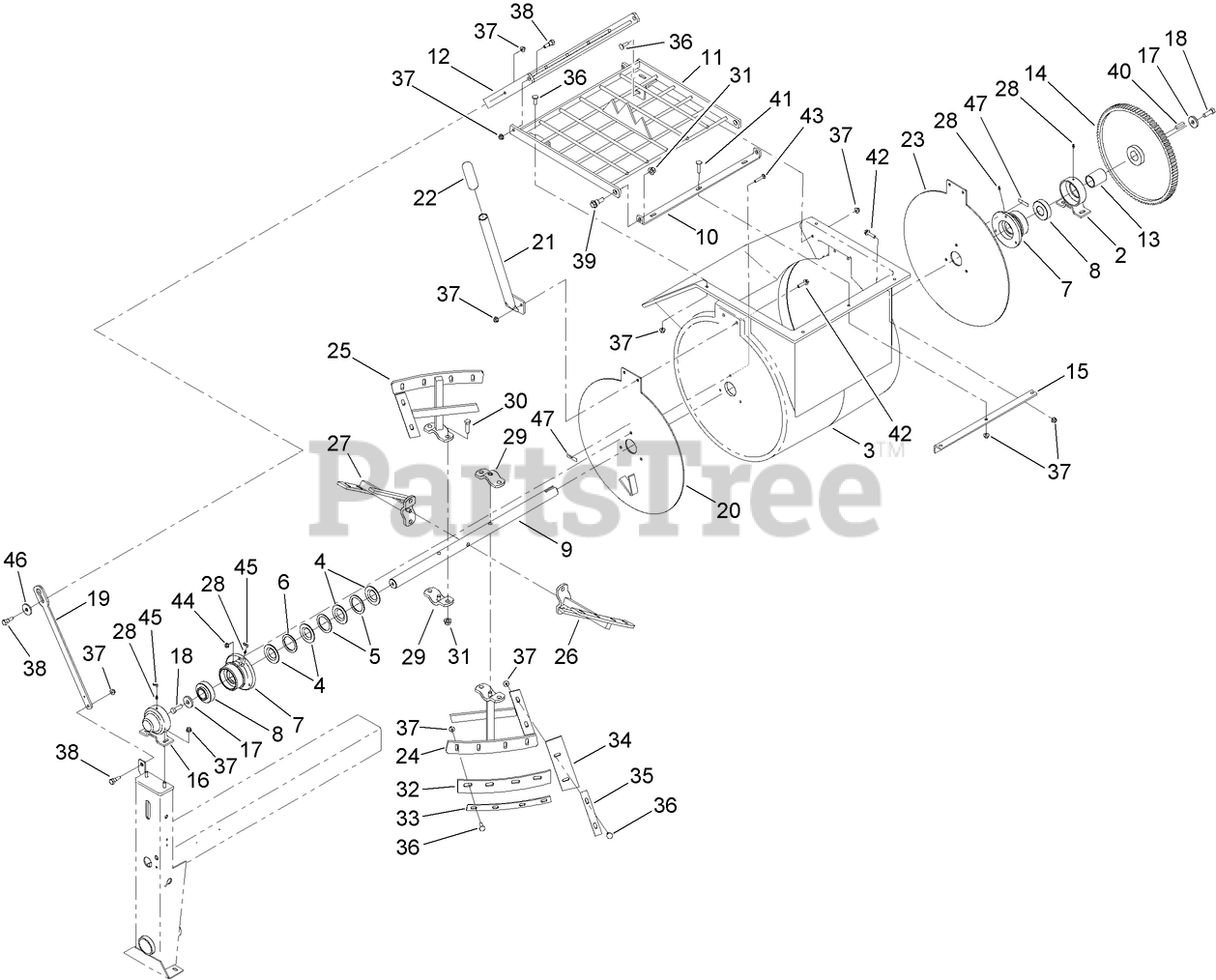

DRUM ASSEMBLY Parts Diagram

  • Title

2

Toro ST24021-03

TRUNNION
(Superseded to ST24021-01)

$103.99

$

In Stock, only 1 left!

0

3

Toro 125-6303

DRUM

$2731.99

$

Usually ships in 3-6 days

0

4

Toro ST32324

SEAL-DRUM

$11.99

$

In Stock, only 2 left!

0

5

Toro ST24017

WASHER-FLAT

$5.49

$

In Stock, only 4 left!

0

6

Toro ST25881

WASHER-SPLIT

$13.99

$

In Stock, only 2 left!

0

7

Toro ST32326-01

HOUSING-BEARING
(Superseded to 132-4117)

$181.99

$

In Stock, only 1 left!

0

8

Toro ST32003

BEARING-BALL

$138.99

$

In Stock, only 2 left!

0

9

Toro ST45854-01

SHAFT-DRUM

$451.99

$

Usually ships in 3-6 days

0

10

Toro ST42641-01

MOUNT-GUARD

$105.99

$

Usually ships in 3-6 days

0

11

Toro 125-6296-01

GUARD-STATIONARY

$1218.99

$

Usually ships in 3-6 days

0

12

Toro 125-6297-01

GUARD-DRUM

$479.99

$

Usually ships in 3-6 days

0

13

Toro ST25928

SPACER-SHAFT

$49.99

$

Usually ships in 3-6 days

0

14

Toro ST26933-03

GEAR-94 TEETH

$632.99

$

Usually ships in 3-6 days

0

15

Toro ST43115-01

SUPPORT-GUARD

$86.99

$

Usually ships in 3-6 days

0

16

Toro ST36574-03

TRUNNION-CAPPED
(Superseded to ST36574-01)

$100.99

$

Usually ships in 3-6 days

0

17

Toro ST26326

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

18

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

19

Toro 125-6290-03

BAR-GUARD, LIFTER

$25.99

$

Usually ships in 3-6 days

0

20

Toro ST45845-01

END-DRUM

$216.99

$

Usually ships in 3-6 days

0

21

Toro ST24406-01

HANDLE

$77.99

$

Usually ships in 3-6 days

0

22

Toro ST47023

GRIP-HAND

$11.99

$

Usually ships in 3-6 days

0

23

Toro ST45846-01

END-DRUM

$232.99

$

Usually ships in 3-6 days

0

24

Toro ST45848-01

PADDLE

$218.99

$

Usually ships in 3-6 days

0

25

Toro ST45849-01

PADDLE

$197.99

$

Usually ships in 3-6 days

0

26

Toro ST45852-01

PADDLE

$218.99

$

Usually ships in 3-6 days

0

27

Toro ST45853-01

PADDLE

$218.99

$

Usually ships in 3-6 days

0

28

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 4 left!

0

29

Toro ST24107-01

CLAMP

$36.99

$

Usually ships in 3-6 days

0

30

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

31

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

32

Toro ST24106

BLADE-RUBBER, LONG
(Superseded to 132-4142)

$14.99

$

Usually ships in 3-6 days

0

33

Toro ST24104-01

BAR-BACKER, LONG

$18.99

$

Usually ships in 3-6 days

0

34

Toro ST47331

BLADE-RUBBER, SHORT
(Superseded to 132-4143)

$13.99

$

In Stock, only 4 left!

0

35

Toro ST42707-01

BAR-BACKER, SIDE

$19.99

$

Usually ships in 3-6 days

0

36

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

37

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 80-1300

BOLT-SHOULDER

$48.99

$

Usually ships in 3-6 days

0

39

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, only 2 left!

0

40

Toro ST81060

KEY-SQUARE

$2.99

$

In Stock, only 1 left!

0

41

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

42

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

43

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

44

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

46

Toro 106-2008

Washer-Thrust

$7.99

$

Usually ships in 3-6 days

0

47

Toro 125-8175

DECAL-GREASE

$1.49

$

In Stock, only 4 left!

0
