68016 C (MM-658H-S) - Toro Mortar Mixer (SN: 314000001 - 314999999) (2014) ENGINE AND PINION ASSEMBLY Parts Diagram

Mortar Mixer

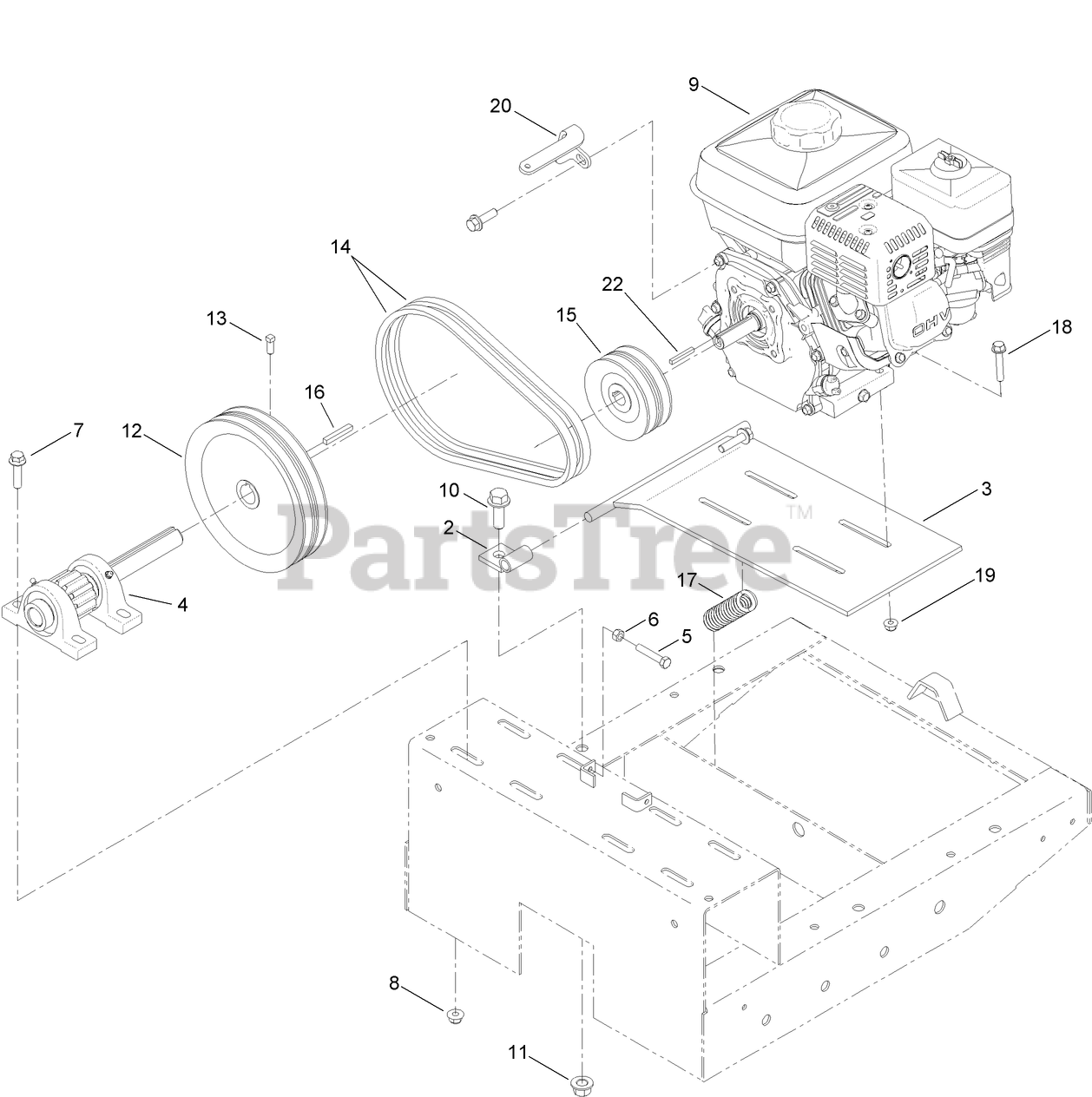

ENGINE AND PINION ASSEMBLY Parts Diagram

  • Title

2

Toro ST57786-03

MOUNT-MOTOR

$32.99

$

Usually ships in 3-6 days

0

3

Toro ST39557-03

BASE-MOTOR

$101.99

$

Usually ships in 3-6 days

0

4

Toro ST21471

PINION ASM
(Superseded to 131-5704)

$514.99

$

Usually ships in 3-6 days

0

5

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, Qty 14

0

6

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

7

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 125-4812

ENGINE-HONDA, GX240

Note: Obtain parts from www.honda-engines.com

$3610.99

$

Usually ships in 3-6 days

0

10

Toro 100-6116

SCREW-HHF

$9.99

$

In Stock, only 1 left!

0

11

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

12

Toro ST38450

SHEAVE

$106.99

$

In Stock, only 2 left!

0

13

Toro 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

14

Toro ST34052

BELT-V
(Superseded to 138-7144)

$59.99

$

In Stock, only 1 left!

0

15

Toro ST38449

SHEAVE

$77.99

$

Usually ships in 3-6 days

0

16

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

17

Toro ST34849

SPRING

$15.99

$

In Stock, only 1 left!

0

18

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 127-1665-03

GUIDE-BELT

$22.99

$

Usually ships in 3-6 days

0

22

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0
