68007 (CM-958H-SED) - Toro Concrete Mixer (SN: 322000001 - 322999999) (2022) Cowl Assembly Parts Diagram

Concrete Mixer

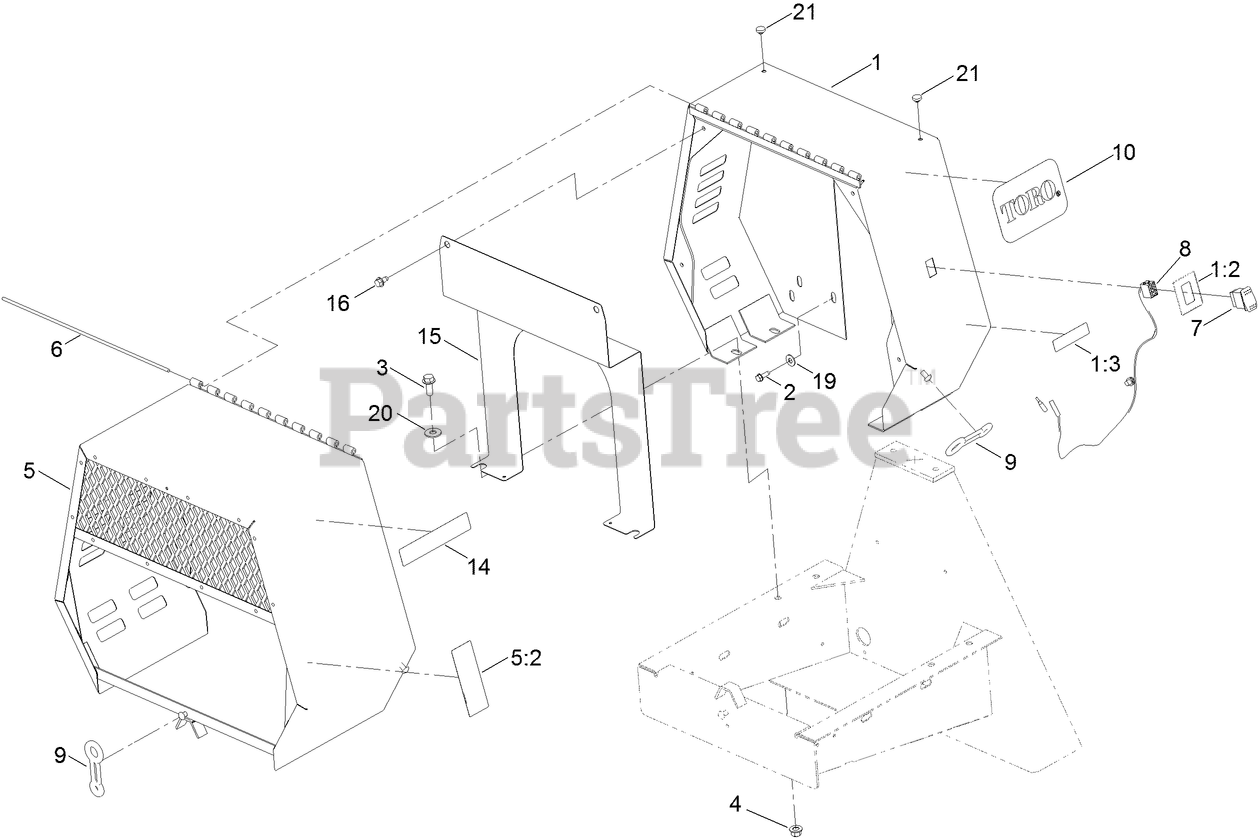

Cowl Assembly Parts Diagram

  • Title

1

Toro 127-2811

STATIONARY COWL ASM

$553.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-4940

DECAL-STOP, ENGINE

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

3

Toro 3234-38

SCREW-HHF

$5.99

$

In Stock, only 3 left!

0

4

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

5

Toro 127-1685

MOVABLE COWL ASM

$409.99

$

Usually ships in 3-6 days

0

5:2

Toro 125-4939

DECAL-WARNING

$3.99

$

Usually ships in 3-6 days

0

6

Toro ST44368

PIN

$13.99

$

Usually ships in 3-6 days

0

7

Toro 95-8999

SWITCH

$44.99

$

In Stock, only 1 left!

0

8

Toro 125-4877

HARNESS-WIRE, MIXER

$53.99

$

Usually ships in 3-6 days

0

9

Toro ST47182

LATCH-RUBBER

$11.99

$

In Stock, only 1 left!

0

10

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

14

Toro 125-4937

DECAL

$6.99

$

Usually ships in 3-6 days

0

15

Toro 125-8218-03

PLATE-ENGINE

$97.99

$

Usually ships in 3-6 days

0

16

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0
