68003 (CM-250E-PWB) - Toro Concrete Mixer (SN: 313000001 - 313999999) (2013) CONCRETE MIXER ASSEMBLY WITH STAND Parts Diagram

Concrete Mixer

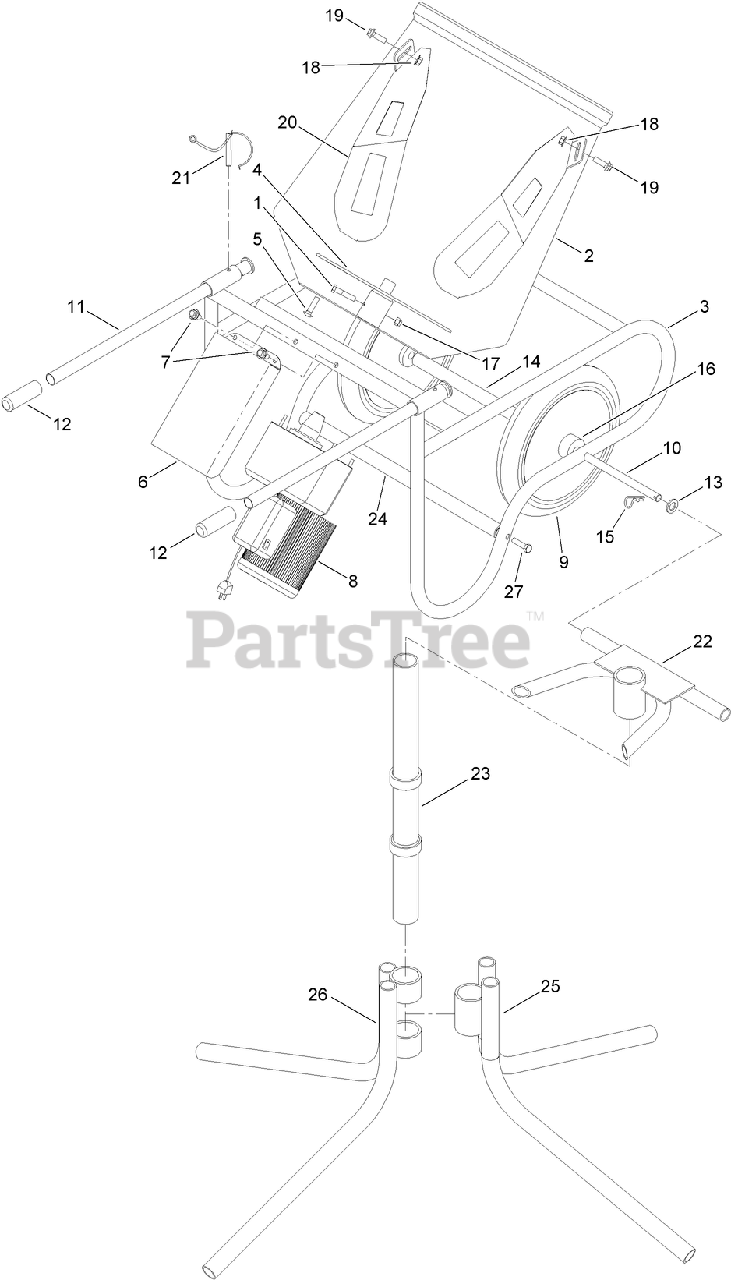

CONCRETE MIXER ASSEMBLY WITH STAND Parts Diagram

  • Title

1

Toro 127-5527

BOLT

$

$

Not available

2

Toro 127-5528

DRUM-POLYETHYLENE

$965.99

$

Usually ships in 3-6 days

0

3

Toro 127-5529

FRAME-WHEELBARROW

$826.99

$

Usually ships in 3-6 days

0

4

Toro 127-5530

INSIDE PLATE ASM (W/ STRAIGHT BUSHING)

$

$

Not available

5

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

6

Toro 127-5531

COVER-MOTOR

$91.99

$

Usually ships in 3-6 days

0

7

Toro 127-5532

SCREW-WHIZLOCK

$

$

Not available

8

Toro 127-5533

GEAR MOTOR ASM

$1020.99

$

Usually ships in 3-6 days

0

9

Toro 127-5534

FLAT FREE WHEEL ASM

$

$

Not available

10

Toro 127-5547

AXLE

$

$

Not available

11

Toro 127-5535

HANDLE-FRAME

$

$

Not available

12

Toro 127-5536

GRIP-HANDLE

$18.99

$

Usually ships in 3-6 days

0

13

Toro 1-303007

WASHER

$5.49

$

In Stock, Qty 13

0

14

Toro 127-5537

SPACER-TUBE, AXLE

$

$

Not available

15

Toro 127-5538

CLIP-R

$

$

Not available

16

Toro 127-5539

BEARING-WHEEL

$

$

Not available

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

20

Toro 127-5540

BLADE-MIXING

$129.99

$

Usually ships in 3-6 days

0

21

Toro 127-5541

PIN-LOCKING (W/ LANYARDS)

$

$

Not available

22

Toro 127-5542

BRACE-SUPPORT, TRI-POD STAND

$

$

Not available

23

Toro 127-5543

SUPPORT-VERTICAL, TRI-POD STAND

$

$

Not available

24

Toro 127-5544

BRACKET-HORIZONTAL, TRI-POD STAND

$

$

Not available

25

Toro 127-5545

PIPE-SUPPORT, LEG 1 (TRI-POD STAND)

$

$

Not available

26

Toro 127-5546

PIPE-SUPPORT, LEG 2 (TRI-POD STAND)

$

$

Not available

27

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0
