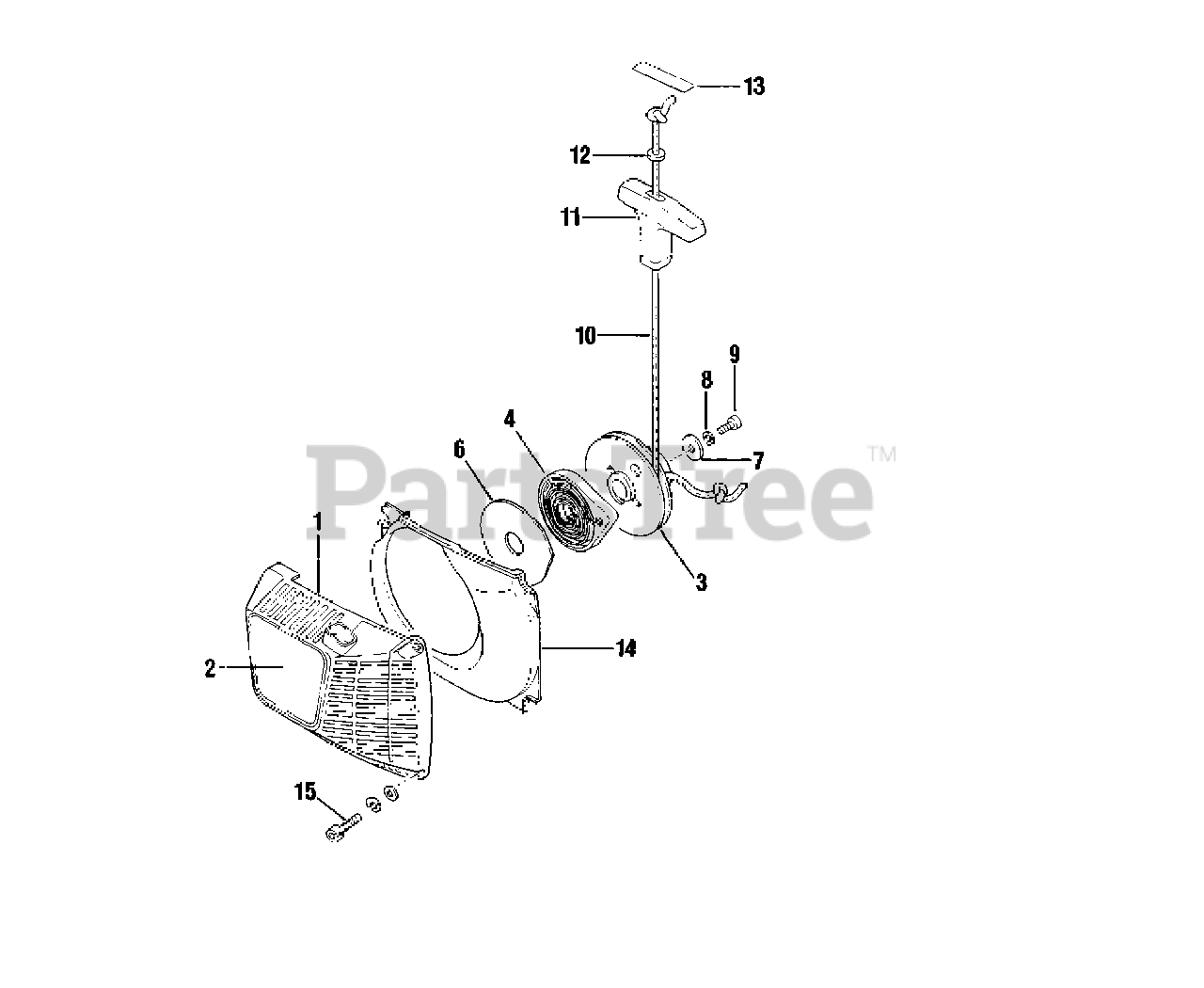

680 - Shindaiwa Chainsaw Starter Assy. Parts Diagram

Chainsaw

Starter Assy. Parts Diagram

  • Title

Echo 22152-75100

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 22152-75210

CASE, STARTER
(Superseded to Discontinued)

Note: REPLACES P/N 72230-75000

$

$

Not available

2

Echo 72230-75230

NAME PLATE
(Superseded to Discontinued)

Note: REPLACES P/N 72230-75200

$

$

Not available

3

Echo 22150-75310

REEL, ROPE
(Superseded to A506000410)

$23.99

$

Usually ships in 2-4 days

0

4

Echo 22155-75410

REWIND SPRING ASSY
(Superseded to A504000190)

Note: REPLACES P/N 22150-75410

$18.99

$

In Stock, only 1 left!

0

6

Echo 22150-75431

SLIDE PLATE
(Superseded to Discontinued)

$

$

Not available

7

$1.49

$

Usually ships in 2-4 days

0

8

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

9

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

10

Echo 22150-75510

ROPE
(Superseded to A509000400)

$6.99

$

Usually ships in 2-4 days

0

11

Echo 22150-75520

GRIP, STARTER
(Superseded to A511000250)

$7.49

$

Usually ships in 2-4 days

0

12

Echo 22150-75530

RETAINER, ROPE
(Superseded to V352000220)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 20010-75230

TAPE
(Superseded to X707000050)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 22155-75610

DEFLECTOR, AIR
(Superseded to A172001470)

Note: REPLACES P/N 22150-75610

$5.49

$

Usually ships in 2-4 days

0

15

Echo 01020-05200

SCREW - 5X20
(Superseded to 90010505020)

$1.49

$

In Stock, Qty 20+

0

?16

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

?17

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0
