678 (190-678-100) - Cub Cadet Twin Bagger att General Assembly Parts Diagram

Twin Bagger

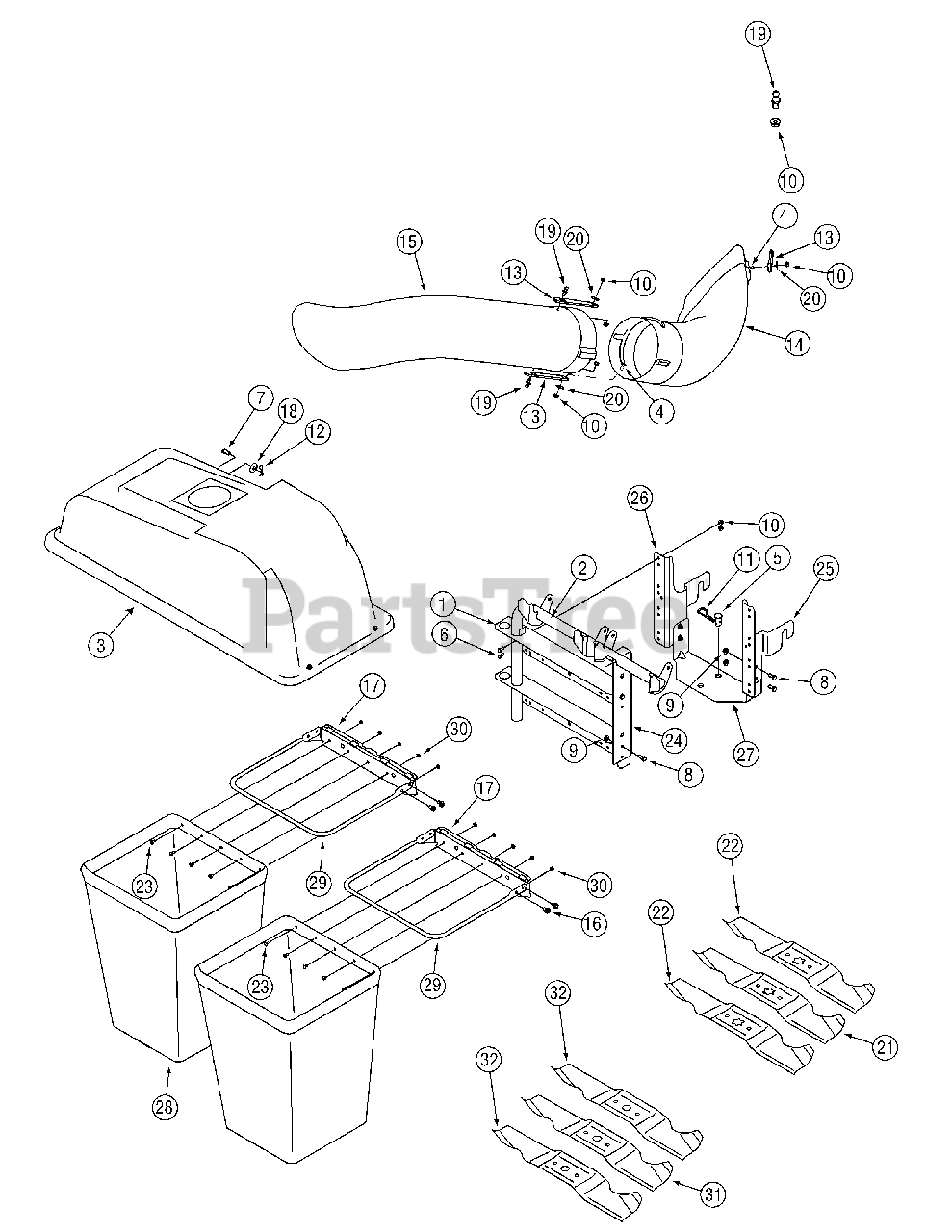

General Assembly Parts Diagram

  • Title

1

Cub Cadet 16587D

Support Bracket: Bagger
(Superseded to 16587D-0637)

Variations

Cub Cadet 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 664-04017

Grass catcher Cover Assembly

$

$

Not available

4

Cub Cadet 710-0597

Screw 1/4-20 x 1"

$3.99

$

In Stock, Qty 14

0

5

Cub Cadet 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-0751

Hex Head Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-1421

Clevis Pin

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 731-04159

Discharge Chute 46"
(Superseded to 931-04159A)

$113.99

$

In Stock, only 3 left!

0

15

Cub Cadet 731-0926B

Catcher Tube

$142.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0604A

Self-Tapping Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 16591A

Bag Hanger Bracket
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-04069

Grass catcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3092

Flat Washer

$3.99

$

In Stock, Qty 9

0

21

Cub Cadet 742-0645

Blade 14.88" Lg. Star Hole
(Superseded to 942-0645)

$25.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 742-0644

Blade 16.28" Lg. Star Hole
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0473

Machine Screw, , #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 783-0601

Mounting Bracket
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-0673B

Catcher Support Bracket (RH)
(Superseded to 783-0673B-0637)

Variations

Cub Cadet 783-0673B-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-0764B

Catcher Support Bracket (LH)
(Superseded to 783-0764B-0637)

Variations

Cub Cadet 783-0764B-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-0765

Bracket: Cross Support
(Superseded to 783-0765-0637)

Variations

Cub Cadet 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

28

Cub Cadet 764-0221

Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

29

Cub Cadet 749-0701A

Grass Bag Frame
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0272

Hex Sems Nut, #10-24

$3.99

$

In Stock, only 1 left!

0

31

Cub Cadet 742-3010

Blade 14.88" Lg. Round Hole
(Superseded to 759-3818)

Variations

Cub Cadet 742-3010-0637

Mower Blade, 14.88" - POWDER BLACK (0637)

$27.99

$

In Stock, only 3 left!

0

$27.99

$

In Stock, only 3 left!

0

32

Cub Cadet 742-3011

Blade 16.38" Lg. Round Hole
(Superseded to 759-3819)

Variations

Cub Cadet 742-3011-0637

Mower Blade, 16.28" Lg - POWDER BLACK (0637)

$

$

Not available

$

$
