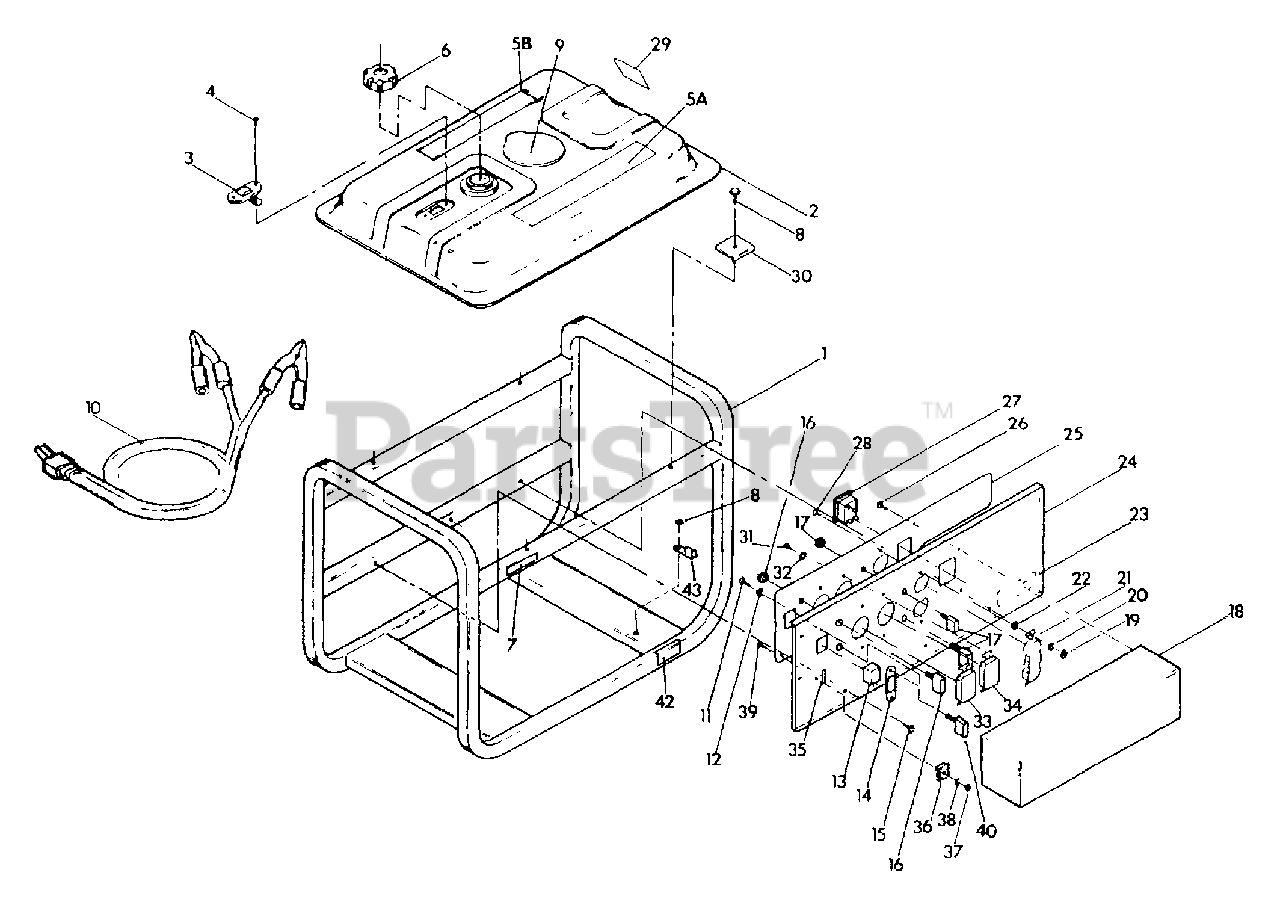

675031 (9116-1) - Craftsman 4,000 Watt Portable Generator Panel & Cradle (10/95) Parts Diagram

4,000 Watt Portable Generator

Panel & Cradle (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 77801

CRADLE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 73715

TANK, FUEL
(Superseded to 7073715YP)

$

$

Not available

3

Briggs & Stratton 66391B

GAUGE, FUEL LEVEL

$

$

Not available

4

Briggs & Stratton 52749

SCREW, PAN HEAD MACHINE - M5-0.80 x 12MM

$

$

Currently unavailable

5A

Briggs & Stratton 77587

DECAL, FUEL TANK (ENGLISH)

$

$

Currently unavailable

5B

Briggs & Stratton 77587A

DECAL, FUEL TANK (FRENCH)

$

$

Currently unavailable

6

Briggs & Stratton 69658

CAP, FUEL TANK

$

$

Currently unavailable

7

Briggs & Stratton 66824

DECAL, CAUTION - HOT!

$

$

Currently unavailable

8

Briggs & Stratton 56893

CRIMPTITE - 10-24 x 1/2" LONG
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 70728

SCREW, PAN HEAD MACH - M3-0.50 x 5MM

$

$

Currently unavailable

12

Briggs & Stratton 43182

LOCKWASHER - M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66821

RECEPTACLE, BATTERY CHARGE
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66822

RETAINER, RECEPTACLE
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75494

SCREW, SELF DRILLING

$

$

Not available

16

Briggs & Stratton 75207B

BREAKER, CIRCUIT - 10AMP
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207D

BREAKER, CIRCUIT - 15AMP
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75937

COVER, BACK PANEL

$

$

Not available

19

Briggs & Stratton 22471

NUT, HEX - NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCKWASHER - NO. 8

$

$

Not available

21

Briggs & Stratton 76248

RECEPTACLE, DUPLEX TYPE (NEMA 5-20R)

$

$

Currently unavailable

22

Briggs & Stratton 23365

LOCKWASHER - (SHAKE-PROOF) - NO. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 29084

DECAL - USDA APPROVAL

$

$

Currently unavailable

24

Briggs & Stratton 77802A

PANEL, RECEPTACLE

$

$

Currently unavailable

25

Briggs & Stratton 75924A

DECAL - RECEPTACLE PANEL

$

$

Currently unavailable

26

Briggs & Stratton 63036

SCREW (CRIMPTITE) - NO. 8-32 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66817

SWITCH (WITH AC ON LAMP)
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36917

SCREW, PAN HD MACH - NO. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 73054

DECAL - FUEL SHUT-OFF

$

$

Not available

30

Briggs & Stratton 76221

CLIP, FUEL TANK

$

$

Not available

31

Briggs & Stratton 36901

SCREW, PAN HD MACH - NO. 6-32 x 3/8"

$

$

Currently unavailable

32

Briggs & Stratton 22155

LOCKWASHER - NO. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 68867

RECEPTACLE - 120/240 VOLTS (NEMA L14-20R)
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 68868

RECEPTACLE - 120 VOLTS, 30AMP (NEMA L5-30R)
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 27565

TAPE, ELECTRICAL - 38MM LONG

$

$

Currently unavailable

36

Briggs & Stratton 65795

RECTIFIER, BATTERY CHARGE
(Superseded to 65795GS)

$

$

Not available

37

Briggs & Stratton 22158

NUT, HEX - NO. 8-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 22152

LOCKWASHER - NO. 8
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 36935

SCREW, PAN HD MACH - NO. 8-32 x 3/4"

$

$

Not available

40

75207A

BREAKER, CIRCUIT - 30AMP

$

$

Not available

41

Briggs & Stratton 77815

MANUAL, OWNERS

$

$

Currently unavailable

42

Briggs & Stratton 74728

DECAL - GROUNDED NEUTRAL
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available
