675030 (9116-0) - Craftsman 4,000 Watt Portable Generator Panel & Cradle No. 76228-A Parts Diagram

4,000 Watt Portable Generator

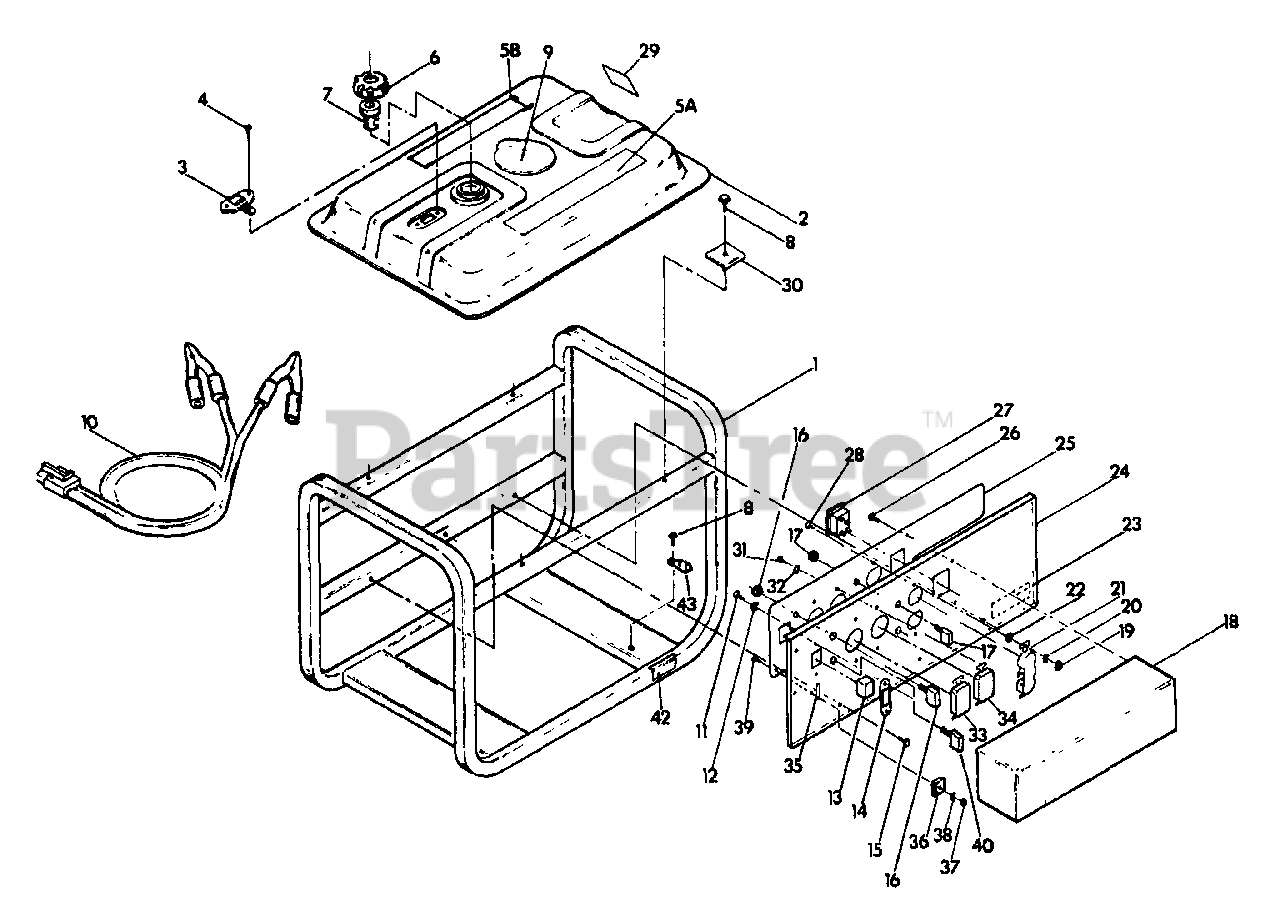

Panel & Cradle No. 76228-A Parts Diagram

  • Title

1

Briggs & Stratton 75932

CRADLE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 73715

TANK, FUEL
(Superseded to 7073715YP)

$

$

Not available

3

Briggs & Stratton 66391B

GAUGE, FUEL LEVEL

$

$

Not available

4

Briggs & Stratton 52749

SCREW,PAN HEAD MACH.-M5-0.80 x 12MM

$

$

Currently unavailable

5A

Briggs & Stratton 77587

DECAL, FUEL TANK (ENGLISH)

Note: Contact Generac for quantity required

$

$

Currently unavailable

5B

Briggs & Stratton 77587A

DECAL, FUEL TANK (FRENCH)

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 69658

CAP, FUEL TANK

$

$

Currently unavailable

7

Briggs & Stratton 70630

STRAINER, FUEL TANK FILLER

$

$

Currently unavailable

8

Briggs & Stratton 56892

SCREW (CRIMPTITE)-NO. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 70728

SCREW, PAN HEAD MACH.-M3-0.50 x 5MM

$

$

Currently unavailable

12

Briggs & Stratton 43182

LOCKWASHER-M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66821

RECEPTACLE, BATTERY CHARGE
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66822

RETAINER, RECEPTACLE
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75494

SCREW, SELF DRILLING

$

$

Not available

16

Briggs & Stratton 75207B

BREAKER, CIRCUIT-10AMP
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207D

BREAKER, CIRCUIT-15AMP
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75937

COVER, BACK PANEL

$

$

Not available

19

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCKWASHER-NO. 8

$

$

Not available

21

Briggs & Stratton 76248

RECEPTACLE, DUPLEX TYPE (NEMA 5-20R)-

$

$

Currently unavailable

22

Briggs & Stratton 23365

LOCKWASHER-(SHAKE-PROOF)-NO.8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 29084

DECAL-USDA APPROVAL

$

$

Currently unavailable

24

Briggs & Stratton 75936A

PANEL, RECEPTACLE

$

$

Currently unavailable

25

Briggs & Stratton 75924A

DECAL-RECEPTACLE PANEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 63036

SCREW (CRIMPTITE)-NO.8-32 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66817

SWITCH (WITH AC ON LAMP)-
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36917

SCREW, PAN HD. MACH.-NO.8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 73054

DECAL-FUEL SHUT-OFF

$

$

Not available

30

Briggs & Stratton 76221

CLIP, FUEL TANK

$

$

Not available

31

Briggs & Stratton 36901

SCREW, PAN HD. MACH.-NO.6-32 x 3/8"

$

$

Currently unavailable

32

Briggs & Stratton 22155

LOCKWASHER-NO.6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 68867

RECEPTACLE-120/240 VOLTS (NEMA L14-20R)
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 68868

RECEPTACLE-120VOLTS, 30AMP (NEMA L5-30R)
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 27565

TAPE, ELECTRICAL-38MM LONG

$

$

Currently unavailable

36

Briggs & Stratton 65795

RECTIFIER, BATTERY CHARGE
(Superseded to 65795GS)

$

$

Not available

37

Briggs & Stratton 22158

NUT, HEX-NO.8-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 22152

LOCKWASHER-NO.8
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 36935

SCREW, PAN HD. MACH.-NO.8-32 x 3/4"

$

$

Not available

40

75207A

BREAKER, CIRCUIT-30AMP

Note: Contact Generac for quantity required

$

$

Not available

41

Briggs & Stratton 77559

MANUAL, OWNERS
(Superseded to 77559GS)

$14.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74728

DECAL-GROUNDED NEUTRAL
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

Briggs & Stratton 37806

PLUG, CONNECTOR (NEMA L5 30P)-120VOLTS, 30AMP
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, CONNECTOR (NEMA L14-20P)-120/240VOLTS
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
