675030 (9116-0) - Craftsman 4,000 Watt Portable Generator Carburetor No. 632499 Parts Diagram

4,000 Watt Portable Generator

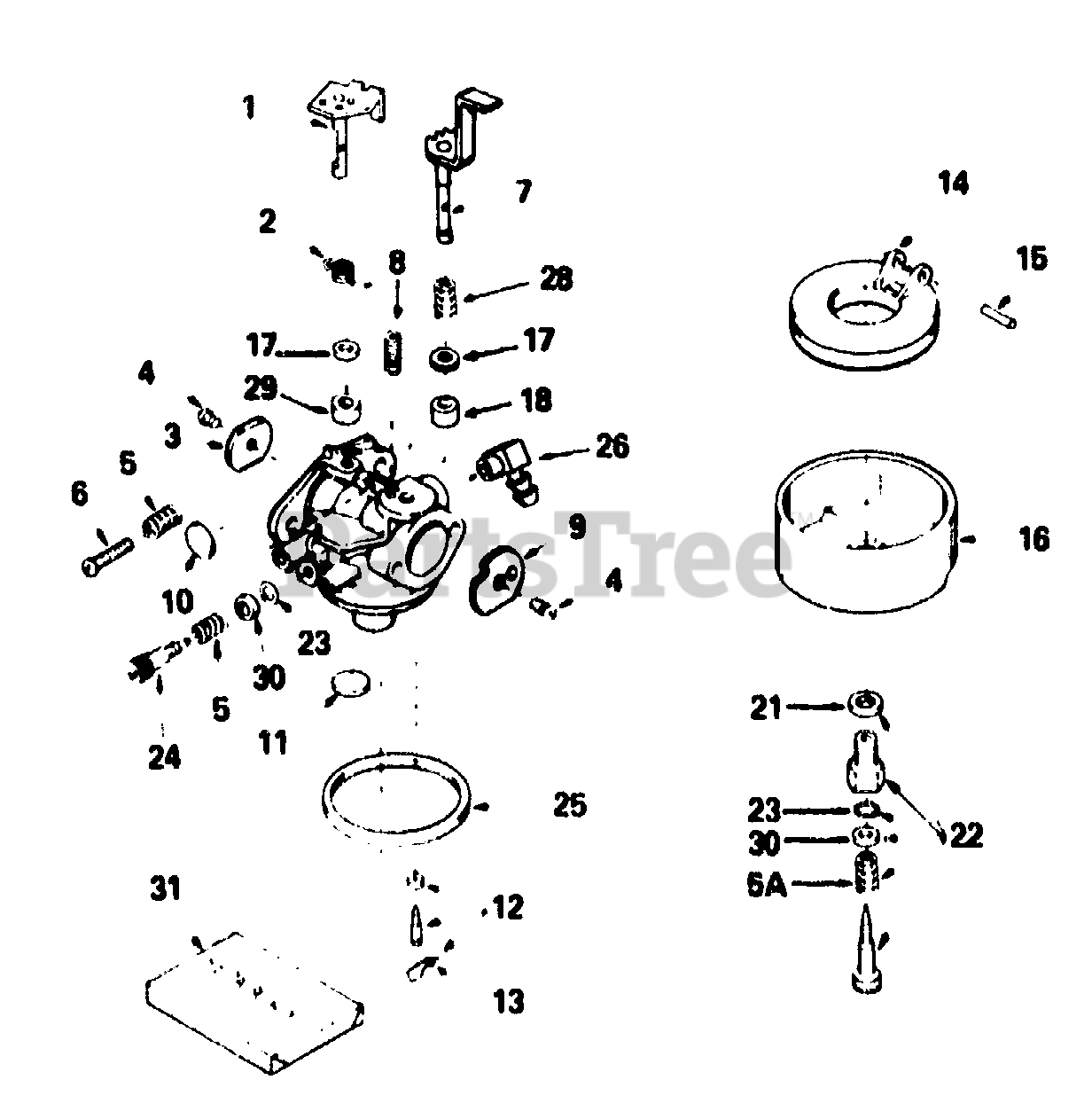

Carburetor No. 632499 Parts Diagram

  • Title

Briggs & Stratton 632499

Carburetor

Note: Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 631776

Shaft & Lever Assy., Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 631970

Spring, Throttle return

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 631778

Shutter, Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 650506

Screw, Throttle & Choke shutter

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 630766

Spring, Idle regulating screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

5A

Briggs & Stratton 630738

Spring, Main adjustment screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 650417

Screw, Idle regulating

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 631812

Shaft & Lever Assy., Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 630735

Spring, Choke positioning

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 631753

Shutter, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 630748

Plug, Welch

Note: Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 631027

Plug, Welch

Note: Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 631021

Inlet Needle, Seat & Clip Assy.

Note: (Incl. No. 13); Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 631022

Clip, Inlet needle

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 632019

Float, Carburetor

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 631024

Shaft, Float

Note: Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 631867

Bowl, Float

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 631184

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 631183

Washer, Felt

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 27110

Gasket, Bowl-to-body
(Superseded to 7027110YP)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 632239

Adjustment Screw Assy., Main

Note: (Incl. Nos. 5A, 21, 23 & 30); Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 630740

"O" Ring, Adjustment screw

Note: Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 632281

Screw, Idle adjustment

Note: Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 631028

Gasket, Bowl-to-body

Note: Included in Repair Kit; Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 631807

Fitting, Fuel

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 632043

Spring, Choke return

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 631971

Seal, Dust

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 630739

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 632347

Repair Kit

Note: (Incl. Items 10, 11, 12, 15, 22, 23, 24 & 25); Contact Generac for quantity required

$

$

Currently unavailable
