243cc Engine

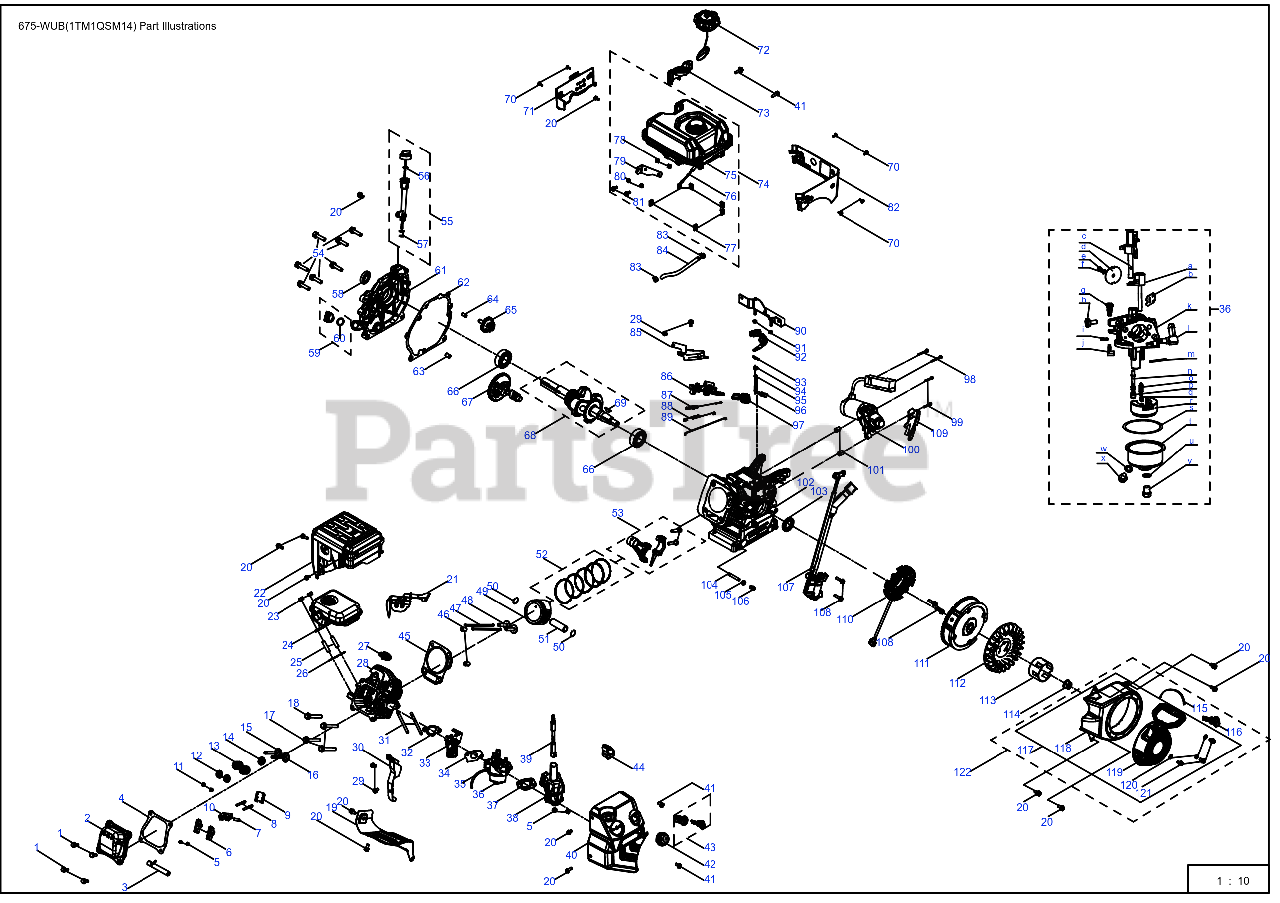

675-WUB General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 908-05028

VALVE COVER

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 921-04673

VALVE COVER GASKET

$8.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

6

Cub Cadet 951-15533

ROCKER ARM ASSEMBLY

$13.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 911-06214

ROCKER ARM SHAFT

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 910-06092

PIVOT BOLT

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 908-05066

PUSH ROD GUIDE

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-14373

ROCKER ARM PIVOT BLOCK

$23.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-12002

EXHAUST VALVE ADJUSTER
(Superseded to 751P12002A)

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-12003

EXHAUST VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

14

Cub Cadet 951-11894

INTAKE VALVE SEAL

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-14100

EXHAUST VALVE
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 951-14099

INTAKE VALVE
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-06065

SCREW M10-1.25 x 65 x GR10.9

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-06291

BOLT M10-1.25 x 70

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 951-11113

AIR SHIELD

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 951-15591

SHROUD

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-15155

MUFFLER GUARD

$69.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

24

Cub Cadet 951-15158

MUFFLER

$75.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-04911

STUD M8 x 36

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-11289

MUFFLER GASKET
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

27

Cub Cadet 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 919-05073

CYLINDER HEAD

$99.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-05103

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet 951-15185

SNOW GUARD

$12.99

$

In Stock, only 1 left!

0

31

Cub Cadet 951-15580

STUD M6 x 90

$5.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-11567

CARBURETOR INSULATOR GASKET
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

33

Cub Cadet 951-15160

INSULATOR

$7.49

$

In Stock, Qty 11

0

34

Cub Cadet 951-11569A

CARBURETOR GASKET
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

35

Cub Cadet 935-05038

PRIMER HOSE

$12.99

$

In Stock, only 3 left!

0

36

Cub Cadet 951-05444

CARBURETOR ASSEMBLY 175SC

$99.99

$

In Stock, only 3 left!

0

37

Cub Cadet 951-11897

CARBURETOR GASKET PLATE
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

38

Cub Cadet 951-15186

HEATER BOX

$

$

Not available

39

Cub Cadet 951-15581

CHOKE LINKAGE
(Superseded to 751P18086)

$5.99

$

In Stock, Qty 20+

0

40

Cub Cadet 951-15164

CONTROL PANEL
(Superseded to 951-15164A)

$25.99

$

In Stock, only 4 left!

0

41

Cub Cadet 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, only 4 left!

0

42

Cub Cadet 951-10639A

PRIMER

$15.99

$

In Stock, Qty 20+

0

43

Cub Cadet 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$10.99

$

In Stock, only 2 left!

0

44

Cub Cadet 951-15450

CHOKE LEVER

$

$

Not available

45

Cub Cadet 921-04674

CYLINDER HEAD GASKET

$13.99

$

In Stock, only 1 left!

0

46

Cub Cadet 750-06168

PIN 12X16

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-14370

PUSH ROD (SINGLE)

$7.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-14470

TAPPET

$10.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 919-05074

PISTON

$38.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-11632

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-11633

PISTON PIN

$7.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-14471

PISTON RING SET

$24.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-11573

CONNECTING ROD ASSEMBLY
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 11

0

54

Cub Cadet 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-05020A

DIPSTICK ASSEMBLY
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 921-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-12397

OIL FILL TUBE O-RING

$5.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-11368

OIL SEAL
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

59

Cub Cadet 931-09966

OIL PLUG

$6.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-11577

O-RING 15.8 x 2.5

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 951-12125

CRANKCASE COVER

$115.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-11371

CRANKCASE COVER GASKET
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

63

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-11576

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-15055

BALL BEARING

$17.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-05058

CAMSHAFT

$67.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-05059

CRANKSHAFT ASSEMBLY

$215.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

70

Cub Cadet 951-15189

BOLT: M5 x 14

$4.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-15191

FUEL TANK SHROUD (RH)

$7.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-15172

FUEL CAP

$

$

Not available

73

Cub Cadet 951-15170

DECORATIVE COVER

$6.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-15173

FUEL TANK

$

$

Not available

75

Cub Cadet 751-15173

FUEL TANK
(Superseded to 951-15173)

$

$

Not available

76

Cub Cadet 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

77

Cub Cadet 951-15578

FUEL TANK MOUNT THREADED TAB

$3.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 712-05186

NUT M6

$4.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-15577

FUEL TANK MOUNT TAB

$4.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-05197

WASHER 6.5 x 1.5 x 12

$4.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 710-06567

BOLT M6 x 20

$4.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-15231

DECORATIVE SHEET (LH)

$7.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-15169

FUEL HOSE 6.3 x 12.5 x 162
(Superseded to 951-15169A)

$22.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-15168

GOVERNOR SHIELD

$6.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-15153

GOVERNOR GEAR BRACKET ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-14882

GOVERNOR SPRING
(Superseded to 751P19229)

$7.99

$

In Stock, only 4 left!

0

88

Cub Cadet 951-10664

THROTTLE RETURN SPRING
(Superseded to 751P10664A)

$2.49

$

Usually ships in 3-6 days

0

89

Cub Cadet 951-10665

GOVERNOR ROD
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

90

Cub Cadet 951-15174

FUEL TANK BRACKET

$11.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

92

Cub Cadet 951-14089

GOVERNOR LEVER

$7.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

94

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

95

Cub Cadet 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 951-14053

GOVERNOR SHAFT

$15.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-10757

THROTTLE KNOB
(Superseded to 951-11224)

$7.99

$

In Stock, Qty 5

0

98

Cub Cadet 751-15472

SCREW

$4.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 710-05182

BOLT M6-1 x 32 GR8.8

$4.49

$

In Stock, only 1 left!

0

100

Cub Cadet 951-15229

ELECTRIC STARTER

$367.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 715-04088

DOWEL PIN
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

102

Cub Cadet 919-05075

CRANKCASE

$212.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 951-11370

OIL SEAL
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

104

Cub Cadet 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

105

Cub Cadet 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

106

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 13

0

107

Cub Cadet 951-15151

IGNITION MODULE

$98.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

109

Cub Cadet 951-11109

BLOWER HOUSING SHIELD

$7.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-15539A

CHARGING COIL

$78.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-15540A

FLYWHEEL

$184.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-15025

COOLING FAN

$24.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-14887

STARTER CUP

$14.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

115

Cub Cadet 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

116

Cub Cadet 951-10630

IGNITION KEY

$6.99

$

In Stock, Qty 6

0

117

Cub Cadet 951-05442

RECOIL STARTER

$79.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 951-15228

BLOWER HOUSING

$44.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 951-15538

RECOIL STARTER ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 710-06354

BOLT M6 x 10

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 951-05444

CARBURETOR ASSEMBLY 175SC

$99.99

$

In Stock, only 3 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Screw, M3×6

$

$

Not available

f

Cub Cadet 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Idle Jet

$

$

Not available

h

Idle Adjusting Screw

$

$

Not available

i

Mixture Screw

$

$

Not available

j

Cub Cadet 937-05005

PRIMER LINE

$5.99

$

Usually ships in 3-6 days

0

k

Cub Cadet 751-15884

FUEL CAP ASSEMBLY

$33.99

$

Usually ships in 3-6 days

0

l

Fuel Nipple

$

$

Not available

m

Float Pin

$

$

Not available

n

Nozzle Tube

$

$

Not available

o

Needle Valve

$

$

Not available

p

Main Jet

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

Cub Cadet 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Cub Cadet 908-05000

FLOAT BOWL

$

$

Not available

u

Cub Cadet 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

v

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 13

0

w

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 10

0
