243cc Engine

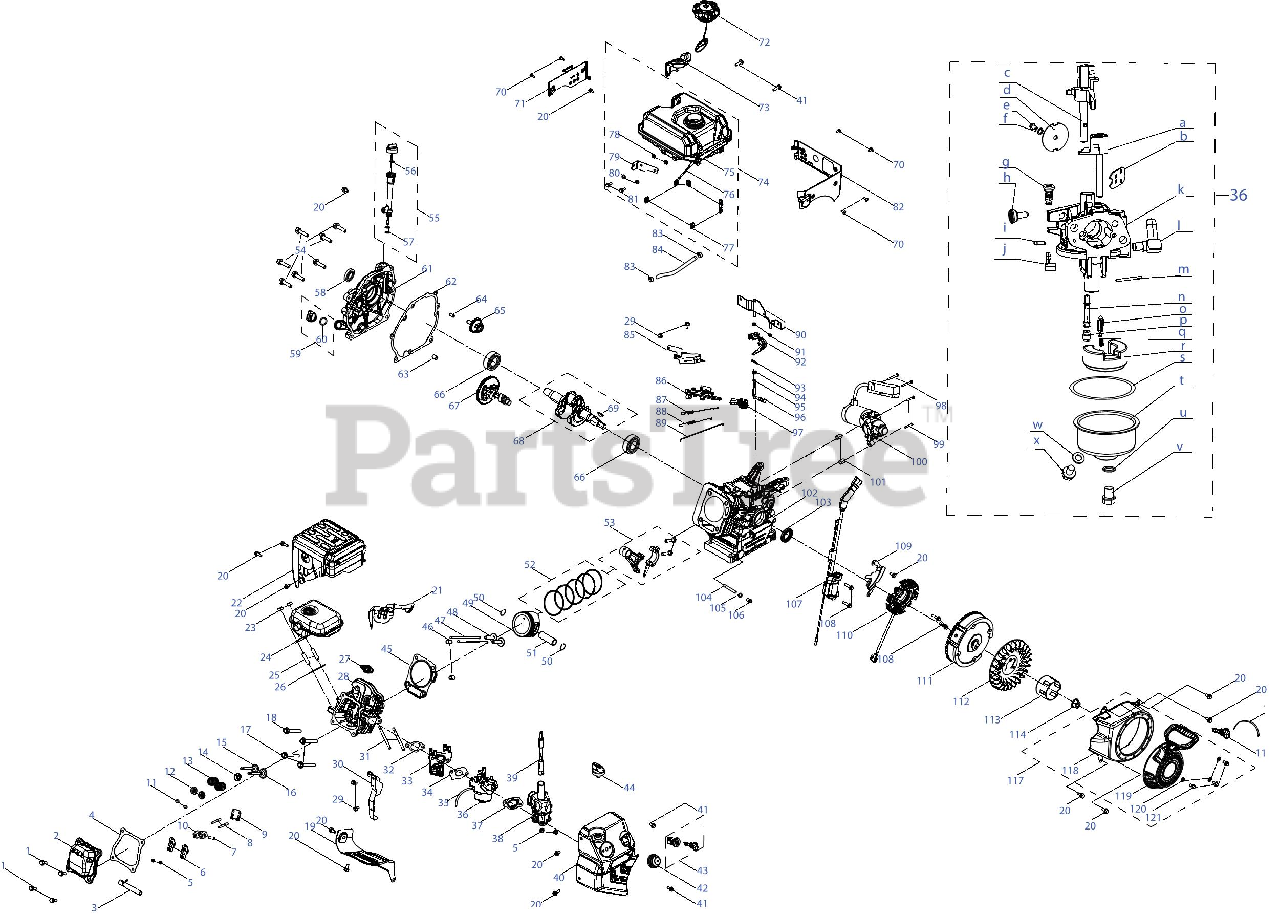

675-WUA General Assembly Parts Diagram

  • Title

1

MTD 710-04968

Bolt, M6x16

$6.99

$

In Stock, only 3 left!

0

2

MTD 908-05028

Valve Cover

$33.99

$

Usually ships in 3-6 days

0

3

MTD 951-15045

Breather Hose

$6.49

$

Usually ships in 3-6 days

0

4

MTD 921-04673

Gasket, Valve Cover

$8.99

$

Usually ships in 3-6 days

0

5

MTD 712-05015

Nut, M6

$6.99

$

In Stock, Qty 20+

0

6

MTD 951-15533

Rocker Arm Assembly

$13.99

$

Usually ships in 3-6 days

0

7

MTD 911-06214

Rocker Arm Shaft

$4.99

$

Usually ships in 3-6 days

0

8

MTD 910-06092

Bolt

$6.49

$

Usually ships in 3-6 days

0

9

MTD 908-05066

Rocker Arm Base

$8.49

$

Usually ships in 3-6 days

0

10

MTD 951-14373

Rocker Arm Seat

$23.99

$

Usually ships in 3-6 days

0

11

MTD 951-12002

Valve Adjust Cap, Exhaust
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

12

MTD 951-12003

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

13

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

14

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

15

MTD 951-14100

Exhaust Valve
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

16

MTD 951-14099

Intake Vavle
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

17

MTD 710-06065

Bolt, M10x1.25x65

$6.49

$

Usually ships in 3-6 days

0

18

MTD 710-06291

Bolt, M10x1.25x70

$4.99

$

Usually ships in 3-6 days

0

19

MTD 951-11113

Shroud

$9.49

$

Usually ships in 3-6 days

0

20

MTD 710-04915

Bolt, M6x12

$4.49

$

In Stock, Qty 20+

0

21

MTD 951-15591

Shroud

$13.99

$

Usually ships in 3-6 days

0

22

MTD 951-15155

Muffler Guard

$69.99

$

Usually ships in 3-6 days

0

23

MTD 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

24

MTD 951-15158

Muffler

$75.99

$

Usually ships in 3-6 days

0

25

MTD 710-04911

Stud, M8x34

$4.49

$

Usually ships in 3-6 days

0

26

MTD 951-11289

Gasket, Muffler
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

27

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

28

MTD 919-05073

Cylinder Head

$99.99

$

Usually ships in 3-6 days

0

29

MTD 710-05103

Bolt, M6x12

$4.49

$

In Stock, only 2 left!

0

30

MTD 951-15185

Snow Guard

$12.99

$

In Stock, only 1 left!

0

31

MTD 951-15580

Stud, M6x90

$5.99

$

Usually ships in 3-6 days

0

32

MTD 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

33

MTD 951-15160

Insulator

$7.49

$

In Stock, Qty 11

0

34

MTD 951-11569A

Gasket, Carburetor
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

35

MTD 935-05038

Fuel Hose,3.2x6.5x170

$12.99

$

In Stock, only 3 left!

0

36

MTD 951-05444

Carburetor

$99.99

$

In Stock, only 2 left!

0

37

MTD 951-11897

Gasket, Air Filter
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

38

MTD 951-15186

Heater Box

$

$

Not available

39

MTD 951-15581

Choke Linkage
(Superseded to 751P18086)

$5.99

$

In Stock, Qty 20+

0

40

MTD 951-15164

Control Panel
(Superseded to 951-15164A)

$25.99

$

In Stock, only 3 left!

0

41

MTD 710-05003

Bolt, M6x18

$4.49

$

In Stock, only 4 left!

0

42

MTD 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

43

MTD 951-15022

Stop Switch
(Superseded to 951-15022A)

$10.99

$

In Stock, only 2 left!

0

44

MTD 951-15450

Choke Lever

$

$

Not available

45

MTD 921-04674

Gasket, Cylinder Head

$13.99

$

In Stock, only 1 left!

0

46

MTD 750-06168

Pin, 12x16

$5.49

$

Usually ships in 3-6 days

0

47

MTD 951-14370

Push Rod

$7.49

$

Usually ships in 3-6 days

0

48

MTD 951-14470

Tappet

$10.99

$

Usually ships in 3-6 days

0

49

MTD 919-05074

Piston

$38.99

$

Usually ships in 3-6 days

0

50

MTD 951-11632

Circlip

$4.49

$

Usually ships in 3-6 days

0

51

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

52

MTD 951-14471

Piston Ring Set

$24.99

$

Usually ships in 3-6 days

0

53

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

54

MTD 710-04932

Bolt, M8x32

$4.49

$

Usually ships in 3-6 days

0

55

MTD 951-05020A

Dipstick
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

56

MTD 921-04663

O-Ring, 21x2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

57

MTD 951-12397

O-Ring, 15.2x1.5

$5.49

$

Usually ships in 3-6 days

0

58

MTD 951-11368

Oil Seal, 25x41.25x6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

59

MTD 931-09966

Oil Plug

$6.49

$

Usually ships in 3-6 days

0

60

MTD 951-11577

O-Ring, 15.8x2.5

$4.49

$

Usually ships in 3-6 days

0

61

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

62

MTD 951-11371

Gasket, Crankcase
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

63

MTD 715-04096

Pin, 9x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

MTD 715-04092

Pin, 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

65

MTD 951-11576

Governor Gear
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

66

MTD 951-15055

Bearing, 6205

$17.99

$

Usually ships in 3-6 days

0

67

MTD 951-05058

Camshaft

$67.99

$

Usually ships in 3-6 days

0

68

MTD 951-05059

Crankshaft

$215.99

$

Usually ships in 3-6 days

0

69

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

70

MTD 951-15189

Bolt, M5x14

$4.49

$

Usually ships in 3-6 days

0

71

MTD 951-15191

Decorative Sheet, Right

$7.49

$

Usually ships in 3-6 days

0

72

MTD 951-15172

Fuel Cap

$

$

Not available

73

MTD 951-15170

Decorative Cover

$6.99

$

Usually ships in 3-6 days

0

74

MTD 951-15173

Fuel Tank Assembly

$

$

Not available

75

Fuel Tank

$

$

Not available

76

MTD 951-12296

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

77

MTD 951-15578

Fuel Tank Mount Thread Tab

$3.99

$

Usually ships in 3-6 days

0

78

MTD 712-05186

Nut, M6

$4.99

$

Usually ships in 3-6 days

0

79

MTD 951-15577

Fuel Tank Mount Tab

$4.99

$

Usually ships in 3-6 days

0

80

MTD 736-05197

Washer, 6.5x1.5x12

$4.99

$

Usually ships in 3-6 days

0

81

MTD 710-06567

Bolt, M6x20

$4.49

$

Usually ships in 3-6 days

0

82

MTD 951-15231

Decorative Sheet, Left

$7.49

$

Usually ships in 3-6 days

0

83

MTD 951-11700

Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

84

MTD 951-15169

Fuel Hose, 6.3x12.5x162
(Superseded to 951-15169A)

$22.99

$

Usually ships in 3-6 days

0

85

MTD 951-15168

Governor Shield

$6.99

$

Usually ships in 3-6 days

0

86

MTD 951-15153

Governor Gear Bracket Assembly

$18.99

$

Usually ships in 3-6 days

0

87

MTD 951-14882

Governor Spring
(Superseded to 751P19229)

$7.99

$

In Stock, only 4 left!

0

88

MTD 951-10664

Idle Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

89

MTD 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

90

MTD 951-15174

Fuel Tank Bracket

$11.99

$

Usually ships in 3-6 days

0

91

MTD 712-05015

Nut, M6

$6.99

$

In Stock, Qty 20+

0

92

MTD 951-14089

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

93

MTD 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

94

MTD 951-11902

Oil Seal, 6x11x4
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

95

MTD 736-04461

O-Ring, 5.2x1.9

$3.99

$

Usually ships in 3-6 days

0

96

MTD 951-14053

Governor Gear Shaft

$15.99

$

Usually ships in 3-6 days

0

97

MTD 951-10757

Throttle Lever Knob
(Superseded to 951-11224)

$7.99

$

In Stock, only 3 left!

0

98

MTD 751-15472

Screw, M4x48

$4.99

$

Usually ships in 3-6 days

0

99

MTD 710-05182

Bolt, M6x32

$4.49

$

In Stock, only 1 left!

0

100

MTD 951-15229

Electric Starter

$367.99

$

Usually ships in 3-6 days

0

101

MTD 715-04088

Pin, 8x8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

102

MTD 919-05075

Crankcase

$212.99

$

Usually ships in 3-6 days

0

103

MTD 951-11370

Oil Seal, 25x41.25x6
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

104

MTD 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

105

MTD 736-04440

Washer, 10x1.5x16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

106

MTD 710-04906

Earth Bolt

$6.99

$

In Stock, Qty 12

0

107

MTD 951-15151

Ignition Module

$98.99

$

Usually ships in 3-6 days

0

108

MTD 710-04919

Bolt, M6x25

$4.49

$

Usually ships in 3-6 days

0

109

MTD 951-11109

Lower Shield

$7.49

$

Usually ships in 3-6 days

0

110

MTD 951-15539A

Charging Coil

$78.99

$

Usually ships in 3-6 days

0

111

MTD 951-15540A

Flywheel

$184.99

$

Usually ships in 3-6 days

0

112

MTD 951-15025

Cooling Fan

$24.99

$

Usually ships in 3-6 days

0

113

MTD 951-14887

Starter Cup

$14.99

$

Usually ships in 3-6 days

0

114

MTD 712-04287

Nut, M14x1.5

$6.99

$

In Stock, only 1 left!

0

115

MTD 725-06031

Tape, L=150mm

$2.49

$

Usually ships in 3-6 days

0

116

MTD 951-10630

Stop Switch Key

$6.99

$

Usually ships in 3-6 days

0

117

MTD 951-05442

Recoil Starter

$79.99

$

Usually ships in 3-6 days

0

118

MTD 951-15228

Blower Housing

$44.99

$

Usually ships in 3-6 days

0

119

MTD 951-15538

Recoil Starter

$70.99

$

Usually ships in 3-6 days

0

120

MTD 736-04455

Washer, 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

121

MTD 710-06354

Bolt, M6x10

$6.99

$

Usually ships in 3-6 days

0

36

MTD 951-05444

Carburetor

$99.99

$

In Stock, only 2 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Screw, M3x6

$

$

Not available

f

MTD 736-04638

Washer, 3
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Idle Jet

$

$

Not available

h

Idle Adjusting Screw

$

$

Not available

i

Mixture Screw

$

$

Not available

j

MTD 937-05005

Primer Line

$5.99

$

Usually ships in 3-6 days

0

k

Carburetor Body

$

$

Not available

l

Fuel Nipple

$

$

Not available

m

Float Pin

$

$

Not available

n

Nozzle Tube

$

$

Not available

o

Needle Valve

$

$

Not available

p

Main Jet

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

MTD 951-11589

O-Ring, Float Bowl
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

MTD 908-05000

Float Bowl

$

$

Not available

u

MTD 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

v

MTD 710-04945

Bolt

$4.49

$

In Stock, Qty 13

0

w

MTD 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

MTD 710-04938

Drain Bolt

$4.49

$

In Stock, Qty 10

0

MTD 952Z675-WUA

Complete Engine
(Superseded to 952Z675-WUB)

$1121.99

$

Usually ships in 3-6 days

0
