675 EXI (2691764-00) - Murray 21" Self-Propelled Walk-Behind Mower Deck & Engine Group Parts Diagram

21" Self-Propelled Walk-Behind Mower

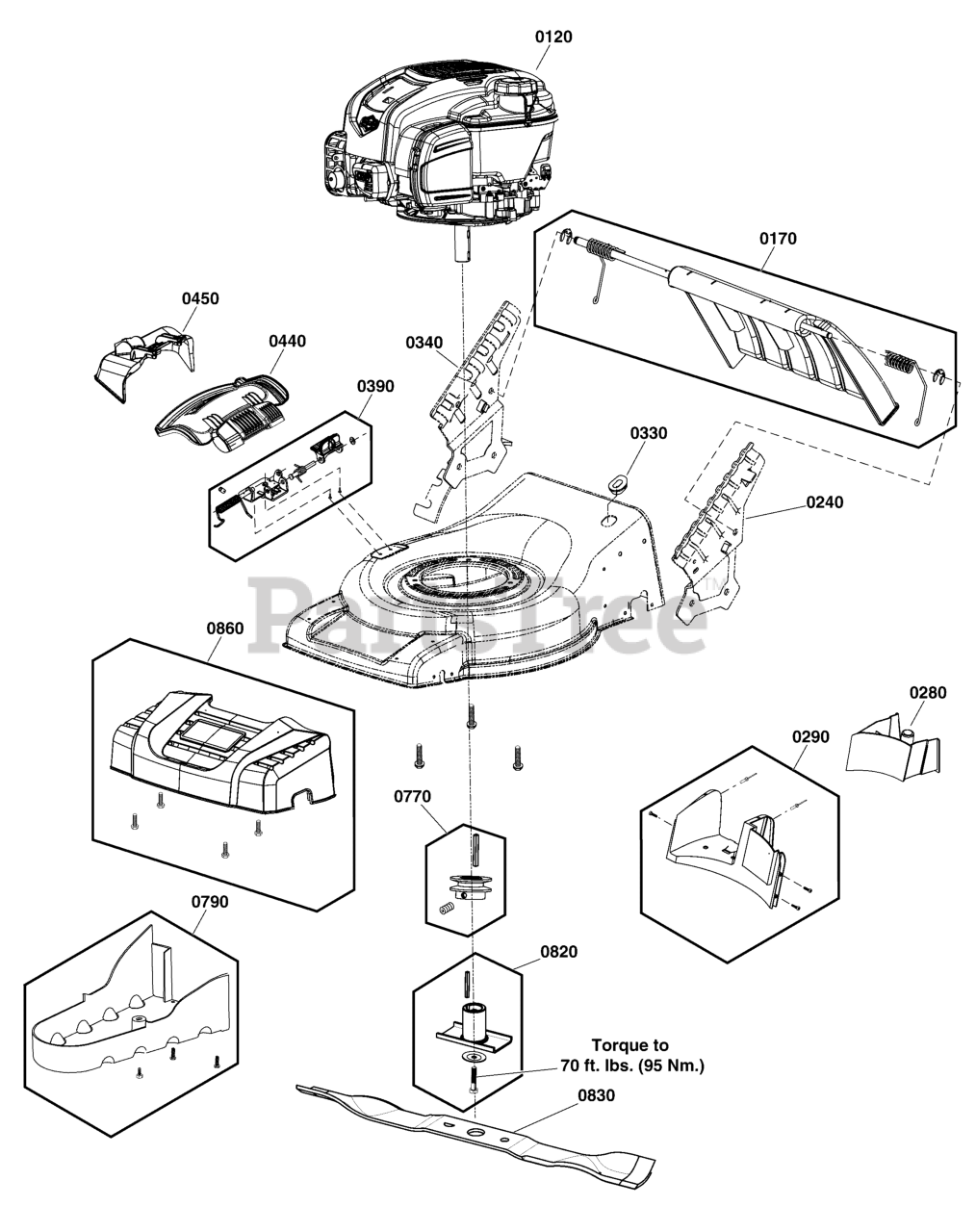

Deck & Engine Group Parts Diagram

  • Title

0120

Briggs & Stratton 103M02-0011-H5

*ENGINE

Note: (Refer to Note: *)

$

$

Currently unavailable

0170

Briggs & Stratton 84002851

KIT, Deflector, Rear

$57.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 84005135

KIT, Bracket, Left

$25.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 84002859

PLUG, Mulch

$31.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 84002846

KIT, Baffle Assembly

$56.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 84002885

SLEEVE

$2.99

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 84005136

KIT, Bracket, Right

$30.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 84005152

KIT, Hardware, Deflector

$10.99

$

Usually ships in 2-12 days

0

0440

Briggs & Stratton 707311

COVER, Mulching

$15.99

$

Usually ships in 2-12 days

0

0450

Briggs & Stratton 707312

CHUTE, Side Discharge

$37.99

$

Usually ships in 2-12 days

0

0770

Briggs & Stratton 84005157

PULLEY ASSEMBLY

$23.99

$

Usually ships in 2-12 days

0

0790

Briggs & Stratton 84005273

KIT, Belt Cover

$20.99

$

Usually ships in 2-12 days

0

0820

Briggs & Stratton 84005137

KIT, Hub

$19.99

$

Usually ships in 2-12 days

0

0830

Briggs & Stratton 84005059

BLADE, Mower

$26.99

$

Usually ships in 2-12 days

0

0860

Briggs & Stratton 84005057

KIT, Cover, Axle

$45.99

$

Usually ships in 2-12 days

0
