674 (190-674-100) - Cub Cadet 46" Dozer Blade att General Assembly Parts Diagram

46" Dozer Blade

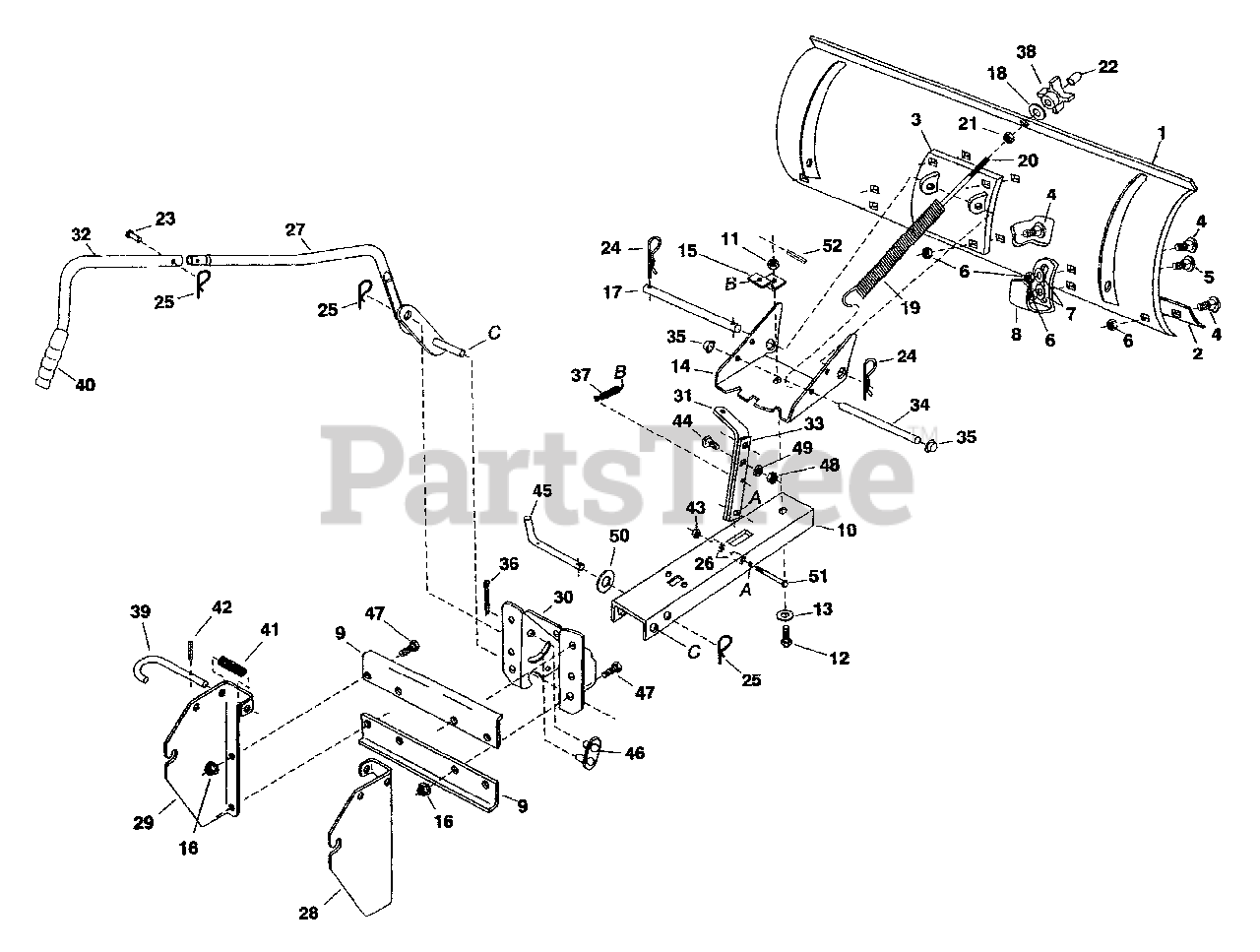

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-63821

Blade - 46"

$180.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-24524

Wear Plate - 46"

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-62980

Reinforcement Plate Assy.

$136.99

$

Usually ships in 3-6 days

0

4

Cub Cadet AF-43080

Bolt, Carriage 5/16-18 x 3/4"
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet AF-43079

Bolt, Carriage 5/16-18 x 1"
(Superseded to 710-0276)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet AF-43064

Hex Lock Nut, 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

7

Cub Cadet AF-43081

Washer, 5/16"
(Superseded to 936-0159)

$

$

Not available

8

Cub Cadet AF-23070

Skid Shoe
(Superseded to AF-24690)

$25.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-24520

Bracket, Angle Support

$33.99

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-24347

Push Channel

$68.99

$

Usually ships in 3-6 days

0

11

Cub Cadet AF-43262

Hex Lock Nut, 1/2 - 13 Thd.
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

12

Cub Cadet AF-23131

Bolt, Special Pivot

$15.99

$

Usually ships in 3-6 days

0

13

Cub Cadet AF-1540-118

Washer, Flat 1/2"

$

$

Currently unavailable

14

Cub Cadet AF-23958

Plate, Pivot 7 Ga.

$102.99

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-23130

Bracket, Spring Mt.

$

$

Not available

16

Cub Cadet AF-47572

Fl. Lock Nut, 3/8-16 Thd.

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet AF-23122

Shaft,. Pivot

$59.99

$

Usually ships in 3-6 days

0

18

Cub Cadet AF-43070

Washer, 3/8" STD.

$8.49

$

Usually ships in 3-6 days

0

19

Cub Cadet AF-9466R

Spring, Blade Adjust
(Superseded to AF-48090)

$73.99

$

Usually ships in 3-6 days

0

20

Cub Cadet AF-44071

Hex Bolt, 3/8-16 x 3-1/2"

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet AF-43015

Hex Nut, 3/8-16 Thd.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

22

Cub Cadet AF-44074

Plastic Cap

$17.99

$

Usually ships in 3-6 days

0

23

Cub Cadet AF-41-42

Pin, Clevis 1/4" x 1-1/2"

$12.99

$

Usually ships in 3-6 days

0

24

Cub Cadet AF-43343

Pin, Hair Cotter #4 (1/8")

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet AF-43055

Pin, Hair Cotter #3 (3/32")
(Superseded to AF-47134)

$6.99

$

In Stock, only 1 left!

0

26

Cub Cadet AF-46053

Spacer, .28 ID x 1"

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet AF-63283

Lift Handle Assembly, Lwr.

$246.99

$

Usually ships in 3-6 days

0

28

Cub Cadet AF-24518

Hitch Bracket, R.H.

$51.99

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-24519

Hitch Bracket, L.H.

$51.99

$

Usually ships in 3-6 days

0

30

Cub Cadet AF-24023

Pivot Support Bracket
(Superseded to AF-24023-0637)

Variations

Cub Cadet AF-24023-0637

Pivot Support Bracket - POWDER BLACK (0637)

$174.99

$

Usually ships in 3-6 days

0

$174.99

$

Usually ships in 3-6 days

0

31

Cub Cadet AF-23129

Angle Lock Bar (Long)

$21.99

$

Usually ships in 3-6 days

0

32

Cub Cadet AF-46553

Lift Handle, Upper

$110.99

$

Usually ships in 3-6 days

0

33

Cub Cadet AF-23151

Angle Lock Bar (Short)

$38.99

$

Usually ships in 3-6 days

0

34

Cub Cadet AF-23856

Spring Mount Rod

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet AF-44917

Palnut, 3/8"
(Superseded to 926-0100)

$

$

Not available

36

Cub Cadet AF-43010

Cotter Pin 1/8" x 1"
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet AF-43348

Angle Lock Spring

$36.99

$

In Stock, only 1 left!

0

38

Cub Cadet AF-47501

Knob

$36.99

$

Usually ships in 3-6 days

0

39

Cub Cadet AF-47553

Pin, Attachment

$17.99

$

Usually ships in 3-6 days

0

40

Cub Cadet AF-43362

Handle, Grip
(Superseded to 720-0204)

$13.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet AF-43659

Pin, Spring 3/16" x 1"

$7.99

$

Usually ships in 3-6 days

0

43

Cub Cadet AF-43013

Hex Lock Nut, 1/4-20 Thd.
(Superseded to 912-0291)

$

$

Not available

44

Cub Cadet 710-0305

Carriage Bolt, 3/8-16 x 1-1/4"
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet AF-46065

Channel Pivot Pin

$45.99

$

In Stock, only 1 left!

0

46

Cub Cadet AF-63034

Lift Link Assembly
(Superseded to AF-69740)

$22.99

$

In Stock, Qty 9

0

47

Cub Cadet AF-43001

Hex Bolt, 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet AF-43082

Hex Lock Nut, 3/8-16 Thd.
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

49

Cub Cadet AF-43003

Lock Washer 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet AF-R19171616

Washer

$10.99

$

Usually ships in 3-6 days

0

51

Cub Cadet AF-46071

Hex Bolt, 1/4-20 x 3-1/4" Lg.Gr 5

$

$

Not available

52

Cub Cadet AF-43349

1/4" x 1" Spring Pin
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0
