673 (190-673-100) - Cub Cadet 42" Snow Thrower Attachment att Housing Assembly Parts Diagram

42" Snow Thrower Attachment

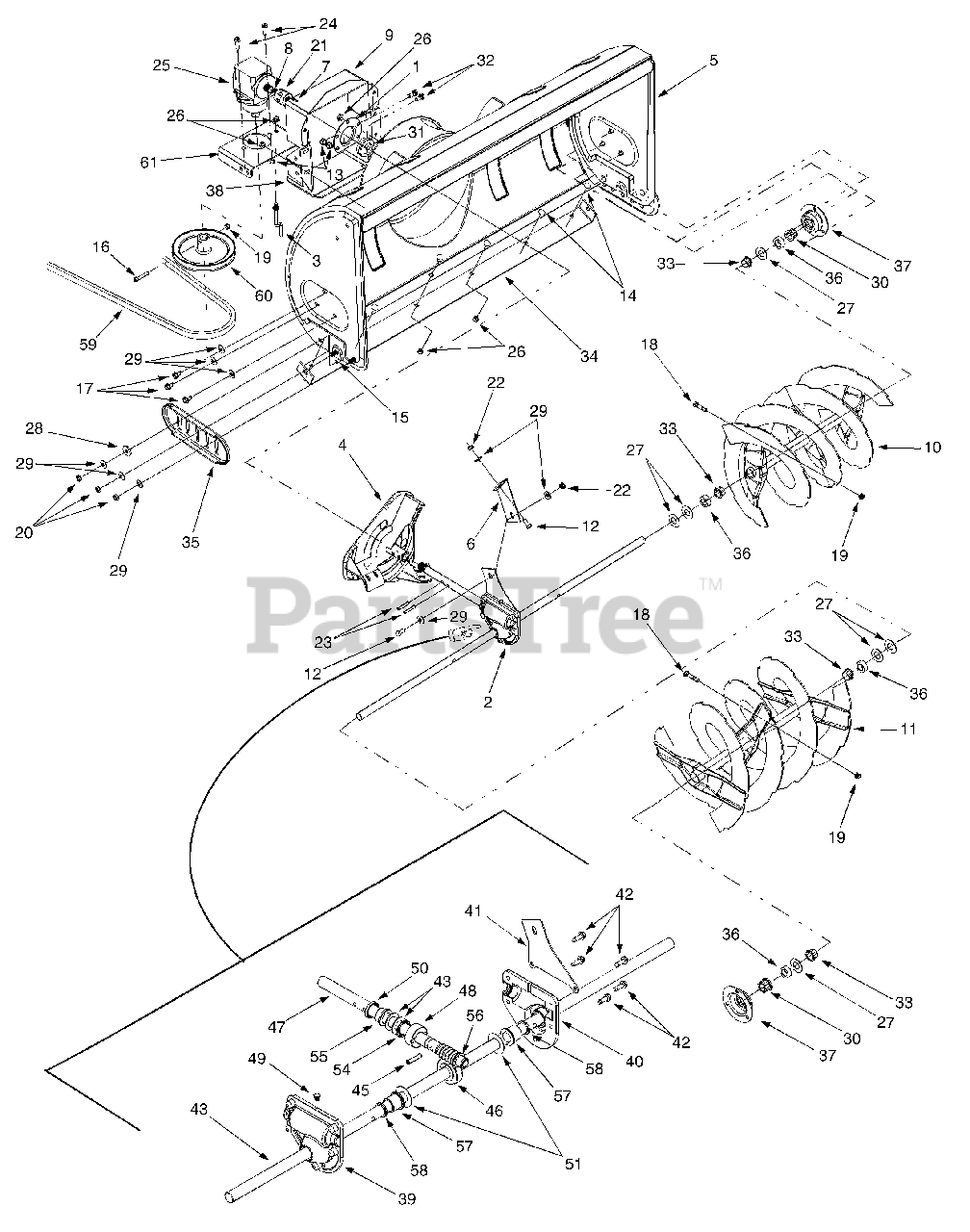

Housing Assembly Parts Diagram

  • Title

1

Cub Cadet 05931A

Bearing Housing, 1.85 ID

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0407

Auger Gear Case

Note: (Incl. Ref. 39-58)

$274.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 747-1257

Belt Keeper Rod

$21.99

$

In Stock, only 2 left!

0

4

Cub Cadet 684-0158

Impeller Assembly, 12"
(Superseded to 684-06296-0637)

Variations

Cub Cadet 684-0158-0637

Impeller Assembly - POWDER BLACK (0637)

$89.99

$

Usually ships in 3-6 days

0

$89.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-0148

Housing Assembly

Variations

Cub Cadet 684-0148-0637

HOUSING ASM-42"ATTCHMT - POWDER BLACK (0637)

$885.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0148-0716

HOUSING ASM-42"ATTCHMT - CUB YELLOW-99 (0716)

$823.99

$

Usually ships in 3-6 days

0

$823.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2734

Housing Brace Bracket

Variations

Cub Cadet 703-2734-0498

BRACKET-HOUSING BRACE - OLD CUB YELLOW (0498)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2734-0637

BRACKET-HOUSING BR - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2734-0716

BRACKET-HOUSING BRACE - CUB YELLOW-99 (0716)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-0122

Square Key, 3/16 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0126

Hi-pro Key, 3/16 x .75

$4.99

$

In Stock, Qty 16

0

9

Cub Cadet 703-2736

Belt Cover

Variations

Cub Cadet 703-2736-0498

COVER-BELT - OLD CUB YELLOW (0498)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2736-0637

COVER-BELT - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 705-5269

LH Spiral Auger, 40"
(Superseded to 753-05285-0637)

Variations

Cub Cadet 705-5269-0498

USE 753-05285-0637 KIT:SPIRAL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 705-5269-0637

USE 753-05285-0637 KIT:SPIRAL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 705-5269-0716

USE 753-05285-0637 KIT:SPIRAL - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 705-5270

RH Spiral Auger, 40"

Variations

Cub Cadet 705-5270-0498

SPIRAL ASSEMBLY (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 705-5270-0637

SPIRAL ASSEMBLY (RH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 705-5270-0716

SPIRAL ASSEMBLY (RH) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

Cub Cadet 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

13

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 10

0

16

Cub Cadet 710-3251

Socket Head Cap Screw, 5/16-18 x 1.75

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0890A

Shear Bolt, 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0429

Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 718-0691

Coupling
(Superseded to 918-0691)

$170.99

$

In Stock, only 3 left!

0

22

Cub Cadet 712-3057

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

23

Cub Cadet 715-0114

Spirol Pin, 1/4 x 1-1/2

$9.49

$

In Stock, Qty 5

0

24

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 717-1714A

Right Angle Drive
(Superseded to 917-1714B)

$621.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0231

Flat Washer, .344 x 1.125 x .12

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0242

Bell Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0245

Hex Flange Bearing, .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

31

Cub Cadet 741-0309

Flange Ball Bearing, .75 x 1.85
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

33

Cub Cadet 741-0493A

Flange Bushing, .80 x .91
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 784-0396A

Skid Plate Bracket, 42"
(Superseded to 784-0396C-0637)

Variations

Cub Cadet 784-0396A-0637

Shave Plate, 42" - POWDER BLACK (0637)

$64.99

$

In Stock, Qty 10

0

$64.99

$

In Stock, Qty 10

0

35

Cub Cadet 784-5038B

Slide Shoe
(Superseded to 784-5038B-0637)

Variations

Cub Cadet 784-5038B-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5038B-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 711-0469

Spacer, .75 x .125 x .5

$7.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-5618

Hex Bearing Housing, 1.0
(Superseded to 784-5618A-0637)

Variations

Cub Cadet 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

38

Cub Cadet 784-0402

Skid Plate
(Superseded to 784-0402-0637)

Variations

Cub Cadet 784-0402-0637

PLATE-SKID - POWDER BLACK (0637)

$112.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 618-0123

RH Reducer Housing
(Superseded to 918-0123A)

Note: (Incl. Ref. 57, 58)

$52.99

$

In Stock, Qty 20+

0

40

Cub Cadet 618-0124

LH Reducer Housing
(Superseded to 918-0124A)

Note: (Incl. Ref. 57, 58)

$52.99

$

In Stock, Qty 17

0

41

Cub Cadet 703-2733A

Housing Brace Plate

Variations

Cub Cadet 703-2733A-0498

PLATE-HOUSING - OLD CUB YELLOW (0498)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2733A-0637

PLATE-HOUSING - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2733A-0716

PLATE-HOUSING - CUB YELLOW-99 (0716)

$19.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 711-1395

Spiral Axle, 41.5"

$130.99

$

Usually ships in 3-6 days

0

?44

Cub Cadet 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 715-0143

Spring Spirol Pin, .25 x 1.25

$4.99

$

In Stock, Qty 15

0

46

Cub Cadet 717-0528

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

47

Cub Cadet 717-3320

Worm Shaft

$135.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 718-0513

Thrust Collar

$13.99

$

In Stock, Qty 5

0

49

Cub Cadet 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0351

Flat Washer, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

?52

Cub Cadet 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

?53

Cub Cadet 736-0617

Thrust Washer, .75 x 1.25 x .0615

$11.99

$

In Stock, Qty 15

0

54

Cub Cadet 741-0150

Thrust Bearing, .75 x 1.25 x .078
(Superseded to IH-324105-R92)

$11.99

$

In Stock, Qty 9

0

55

Cub Cadet 741-0700

Flange Bearing, .75 x 1.0 x .59

$11.99

$

In Stock, Qty 7

0

56

Cub Cadet 748-0108

Flange Bearing, .503 x .75
(Superseded to 948-0108)

$8.99

$

In Stock, Qty 20+

0

57

Cub Cadet 741-0661

Flange Bearing, .754 x 1.0 x .925
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 11

0

58

Cub Cadet 721-0179

Grease Seal

$8.99

$

In Stock, only 1 left!

0

59

Cub Cadet 754-0125A

Lower V-belt
(Superseded to 954-0125A)

$55.99

$

In Stock, Qty 5

0

60

Cub Cadet 756-1181A

Drive Pulley, 7"

$113.99

$

In Stock, only 1 left!

0

61

Cub Cadet 783-1014A

Drive Mounting Bracket
(Superseded to 783-1014A-0637)

Variations

Cub Cadet 783-1014A-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

$86.99

$

Usually ships in 3-6 days

0
