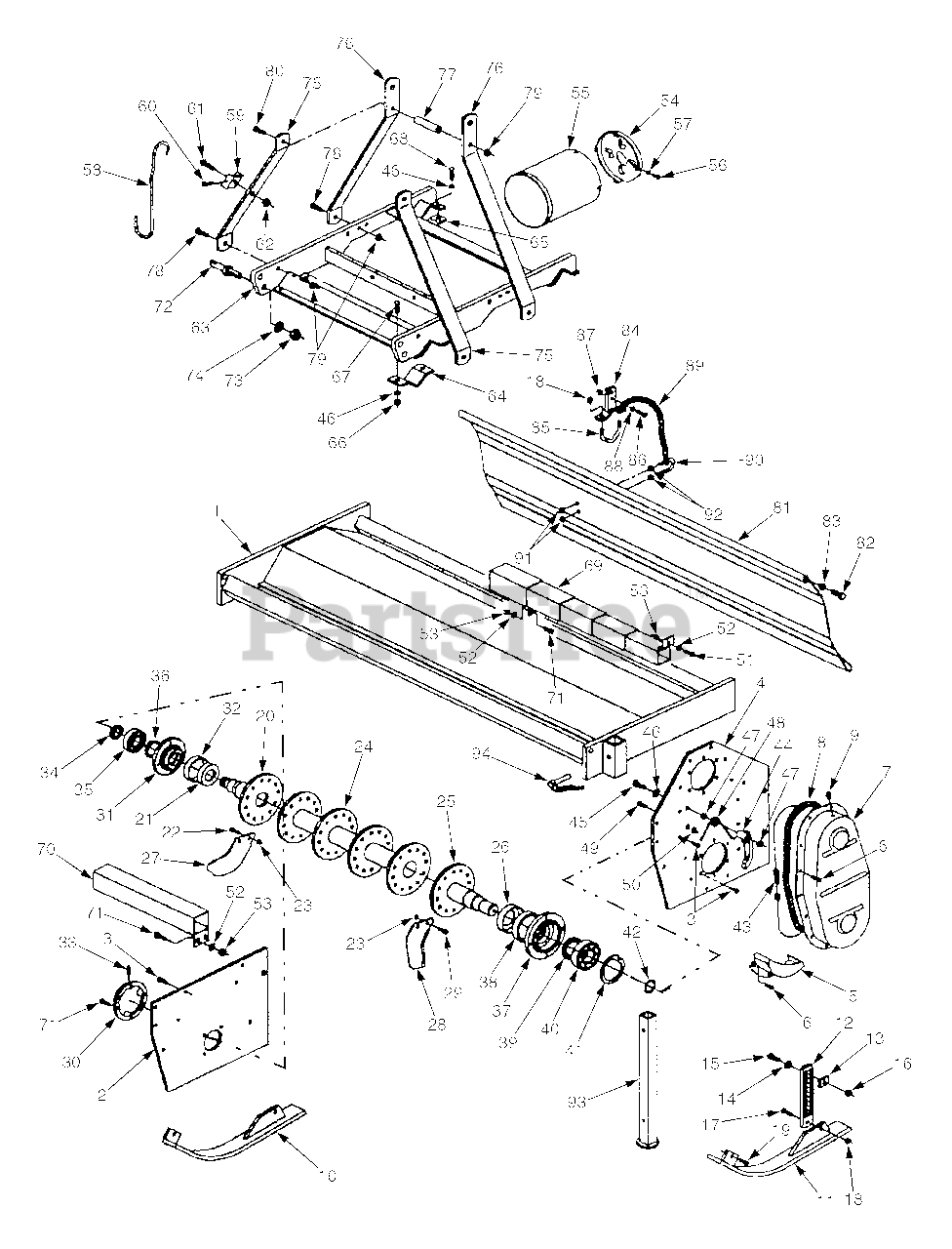

671 (590-671-100) - Cub Cadet 74" Tiller Attachment Main Frame Parts Diagram

74" Tiller Attachment

Main Frame Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet BF-008-0011

Right Side Panel

$

$

Not available

3

$

$

Not available

4

Cub Cadet BF-008-0021

Drive Panel

$

$

Not available

5

Cub Cadet BF-008-0027

Chain Case Protection

$

$

Not available

6

Cub Cadet BF-000-1008

Bolt, 10 x 30

$

$

Not available

7

Cub Cadet BF-008-0033

Chain Case Cover

$

$

Not available

$

$

Not available

9

Cub Cadet BF-001-0035

Breather Cap

$

$

Not available

10

Cub Cadet BF-018-0051

Skid - Right

$

$

Not available

11

Cub Cadet BF-028-0051

Skid - Left

$

$

Not available

12

Cub Cadet BF-008-0056

Adjustment Arm

$

$

Not available

$

$

Not available

14

Cub Cadet BF-003-0066

Threaded Washer

$

$

Not available

15

$

$

Not available

16

Cub Cadet BF-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

17

$

$

Not available

$

$

Not available

19

$

$

Not available

20

Cub Cadet BF-008-7052

Flanged Pivot - RH

$

$

Not available

21

Cub Cadet BF-008-0075

Dirt Shield

$

$

Not available

22

Cub Cadet BF-007-7055

Bolt, 12 x 45

$

$

Not available

$

$

Not available

$

$

Not available

25

Cub Cadet BF-008-7102

Flanged Pivot - LH

$

$

Not available

26

Cub Cadet BF-008-0091

Dirt Shield

$

$

Not available

27

Cub Cadet BF-000-1071D

C-Blade - Right

$

$

Not available

28

Cub Cadet BF-000-1071S

C-Blade - Left

$

$

Not available

29

$

$

Not available

$

$

Not available

31

Cub Cadet BF-008-0114

Right Support

$

$

Not available

32

Cub Cadet BF-008-0116

Dirt Shield

$

$

Not available

33

Cub Cadet BF-000-1065

Grease Fitting

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet BF-003-7098

Safety Nut M35x1.5

$

$

Not available

$

$

Not available

36

$

$

Not available

37

Cub Cadet BF-008-0131

Left Support

$

$

Not available

$

$

Not available

39

$

$

Not available

$

$

Not available

41

$

$

Not available

42

$

$

Not available

43

Cub Cadet BF-000-1120

Chain ASA 100 x 36

$

$

Not available

44

Cub Cadet BF-000-1115

Chain Tensioner

$

$

Not available

45

Cub Cadet BF-008-0149

Bolt, 14 x 75

$

$

Not available

46

Cub Cadet BF-000-1020

Lock Washer, M14

$

$

Not available

47

$

$

Not available

$

$

Not available

49

Cub Cadet BF-000-1102

Bolt, 14 x 60

$

$

Not available

50

$

$

Not available

51

$

$

Not available

52

Cub Cadet BF-000-2034

Flat Washer M10

$

$

Not available

$

$

Not available

54

Cub Cadet BF-001-1201

Protection Support

$

$

Not available

55

Cub Cadet BF-001-1207

PTO Shaft Protection

$

$

Not available

56

$

$

Not available

57

Cub Cadet BF-001-1209

Flat Washer M6

$

$

Not available

58

Cub Cadet BF-008-0261

Driveline Hook

$

$

Not available

59

Cub Cadet BF-002-2435

Hook Support

$

$

Not available

60

$

$

Not available

61

Cub Cadet BF-001-5012

Bolt 8 x 20

$

$

Not available

$

$

Not available

63

Cub Cadet BF-008-0271

Side Shift Complete

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

67

Cub Cadet BF-007-4232

Bolt, 14 x 40

$

$

Not available

68

Cub Cadet BF-000-1526

Bolt 14 x 35

$

$

Not available

69

$

$

Not available

70

Cub Cadet BF-048-0301

Right Protection

$

$

Not available

71

Cub Cadet BF-009-1281

Bolt, 10 x 35

$

$

Not available

72

$78.99

$

In Stock, only 2 left!

0

$3.49

$

In Stock, only 2 left!

0

74

Cub Cadet BF-000-5351

Lock Washer M20

$2.99

$

Usually ships in 3-6 days

0

75

Cub Cadet BF-008-0322

Top Hitch Support

$

$

Not available

76

Cub Cadet BF-008-0323

Top Hitch Arm

$

$

Not available

$

$

Not available

78

Cub Cadet BF-000-1018

Bolt 14 x 45
(Superseded to BF-003-7349)

$

$

Not available

79

$6.99

$

Usually ships in 3-6 days

0

80

Cub Cadet BF-009-0226

Bolt 14 x 110

$

$

Not available

81

$

$

Not available

82

Cub Cadet BF-003-7386

Bolt, 18 x 80

$

$

Not available

83

$

$

Not available

84

Cub Cadet BF-008-0341

Chain Hitch

$

$

Not available

$

$

Not available

86

Cub Cadet BF-000-1278

Bolt, 10 x 30

$

$

Not available

$

$

Not available

88

Cub Cadet BF-003-0157

Flat Washer M10

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

94

$

$

Not available
