670 SUPER II - Jonsered Chainsaw (1993-06) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

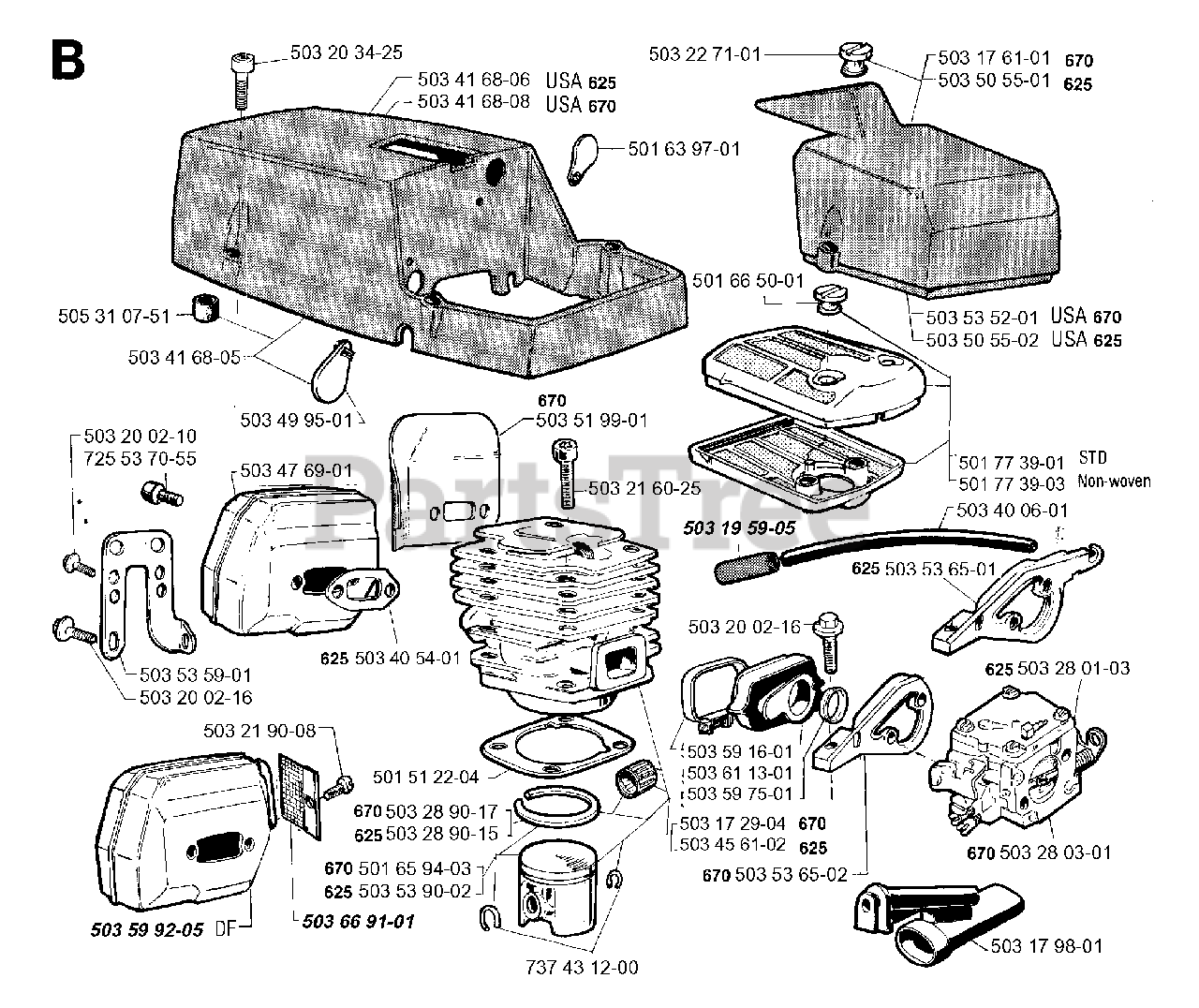

CYLINDER PISTON MUFFLER Parts Diagram

  • Title
5032034-25

Jonsered 503203425

SCREW
(Superseded to 525887001)

$4.99

$

In Stock, Qty 20+

0

5034168-06

Jonsered 503416806

CYLINDER COVER

$

$

Not available

5034168-08

Jonsered 503416808

CYLINDER COVER

$

$

Not available

5053107-51

Jonsered 505310751

IMPULSE PIPE

$10.99

$

In Stock, Qty 7

0

5034168-05

Jonsered 503416805

CYLINDER COVER

$

$

Not available

5032002-10

Jonsered 503200210

SCREW
(Superseded to 503200710)

$6.49

$

In Stock, Qty 20+

0

7255370-55

Jonsered 725537055

SCREW MC6S 6X20

$10.99

$

In Stock, Qty 20+

0

5034995-01

$

$

Not available

5034769-01

Jonsered 503476901

MUFFLER
(Superseded to 503599205)

$85.99

$

Usually ships in 3-10 days

0

5035359-01

$8.07

$

Usually ships in 3-10 days

0

5032002-16

$4.99

$

In Stock, Qty 20+

0

5032190-08

Jonsered 503219008

SCREW
(Superseded to 503205508)

$

$

Not available

5035992-05

$85.99

$

Usually ships in 3-10 days

0

5036691-01

$

$

Not available

5035390-02

Jonsered 503539002

%PISTON
(Superseded to 544223802)

$106.99

$

Usually ships in 3-10 days

0

5016594-03

$

$

Not available

5032890-15

Jonsered 503289015

PISTON RING

$31.99

$

In Stock, only 3 left!

0

5032890-17

Jonsered 503289017

PISTON RING

$31.99

$

In Stock, only 1 left!

0

5015122-04

$5.99

$

In Stock, Qty 9

0

5034054-01

$6.99

$

In Stock, Qty 5

0

5035199-01

Jonsered 503519901

DEFLECTOR

$7.99

$

Usually ships in 3-10 days

0

5032160-25

$4.99

$

Usually ships in 3-10 days

0

7374312-00

Jonsered 737431200

No Description Available

$7.49

$

In Stock, only 2 left!

0

5035365-02

$

$

Not available

5034561-02

Jonsered 503456102

CYLINDER CPL.

$347.34

$

Usually ships in 3-10 days

0

5031729-04

Jonsered 503172904

CYLINDER CPL.

$

$

Not available

5035975-01

$

$

Not available

5036113-01

Jonsered 503611301

INDUCTION PIPE

$

$

Not available

5035916-01

$

$

Not available

5032002-16

$4.99

$

In Stock, Qty 20+

0

5031959-05

$

$

Not available

5016650-01

Jonsered 501665001

SLOTTED NUT

$

$

Not available

5016397-01

Jonsered 501639701

COVER
(Superseded to 503405901)

$7.99

$

In Stock, only 4 left!

0

5032271-01

$

$

Not available

5035365-01

$

$

Not available

5031798-01

$

$

Not available

5032803-01

Jonsered 503280301

REPL BY 503 28 03-19
(Superseded to 503280319)

$

$

Not available

5032801-03

Jonsered 503280103

CARBURETOR

$

$

Not available

5034006-01

Jonsered 503400601

HOSE
(Superseded to 586227701)

$8.99

$

Usually ships in 3-10 days

0

5017739-03

Jonsered 501773903

AIRFILTER

$

$

Not available

5017739-01

Jonsered 501773901

AIR FILTER

$

$

Not available

5035055-02

Jonsered 503505502

FILTER COVER, US

$

$

Not available

5035352-01

Jonsered 503535201

FILTER COVER, US

$39.99

$

Usually ships in 3-10 days

0

5035055-01

Jonsered 503505501

AIR FILTER COVER

$

$

Not available

5031761-01

Jonsered 503176101

FILTER COVER

$

$

Not available
