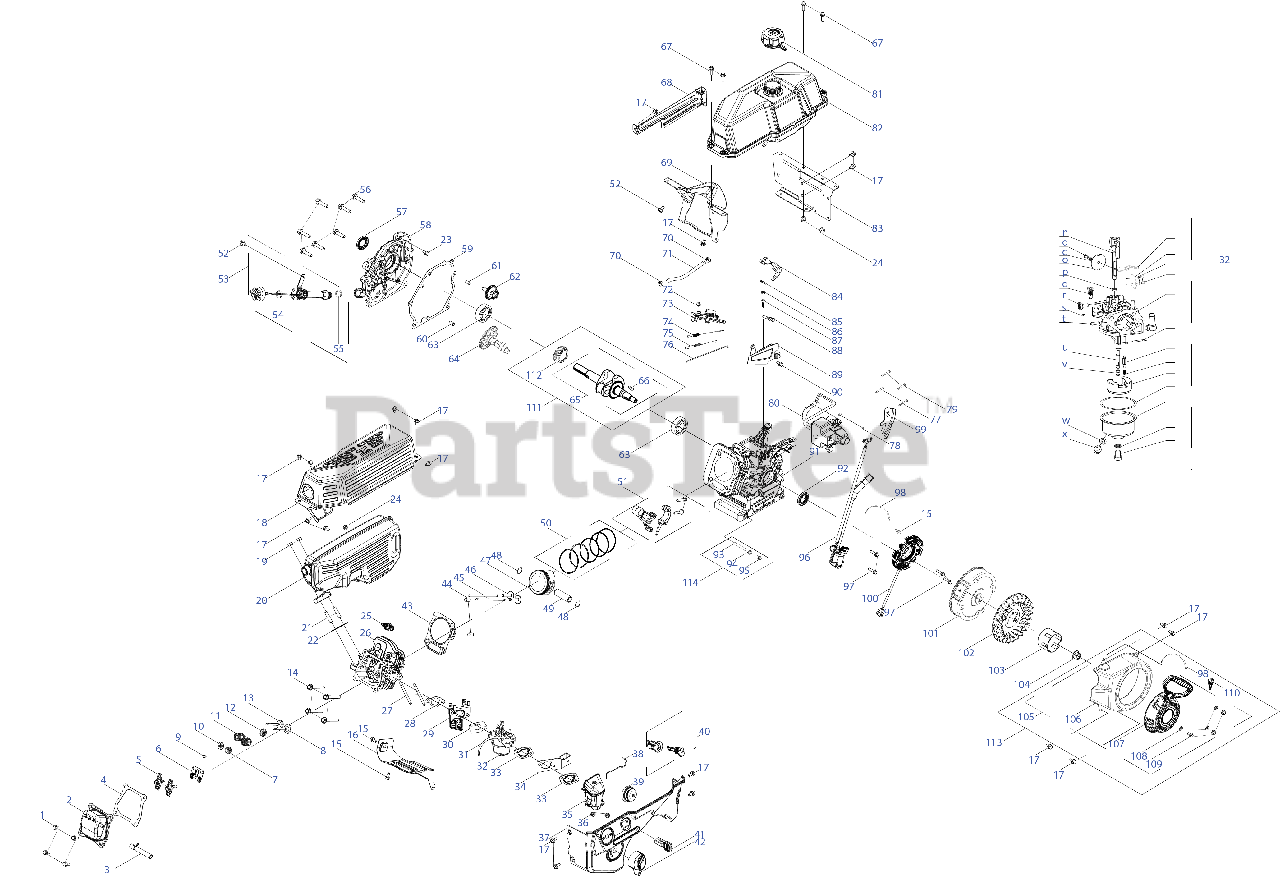

670-QUB General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11054A

VALVE COVER
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 951-11565

VALVE COVER GASKET
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 12

0

5

Troy-Bilt 951-11892

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 951-15139

ROCKER ARM BASE

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 951-12000

INTAKE VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 951-14099

INTAKE VALVE
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 951-12002

EXHAUST VALVE ADJUSTER
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 951-12003

EXHAUST VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

12

Troy-Bilt 951-11894

INTAKE VALVE SEAL

$10.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 951-14100

EXHAUST VALVE
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 710-04933

BOLT M8-1.25 x 55 GR10.9

$3.99

$

In Stock, Qty 10

0

15

Troy-Bilt 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 951-11113

AIR SHIELD

$9.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 910-06277

BOLT-M6 x 12

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 908-05112A

MUFFLER GUARD

$84.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

20

Troy-Bilt 951-05263

MUFFLER

$173.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-05001

STUD M8-1.25 x 36

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 951-11289

MUFFLER GASKET
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-05192

SCREW M6-1 x 20 CL5.8

$5.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 951-14928

CYLINDER HEAD
(Superseded to 751P14928A)

$45.99

$

In Stock, Qty 5

0

27

Troy-Bilt 710-05093

STUD M6 x 92

$4.49

$

In Stock, Qty 12

0

28

Troy-Bilt 951-11567

CARBURETOR INSULATOR GASKET
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 951-11568

CARBURETOR INSULATOR
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

30

Troy-Bilt 751-12005

CARBURETOR GASKET
(Superseded to 951-11569A)

$5.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 951-15535

PRIMER HOSE

$7.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 951-05251

CARBURETOR ASSEMBLY

$115.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 951-11897

CARBURETOR GASKET PLATE
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 951-14869

CHOKE CONTROL

$7.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 951-14870

HEATER BOX

$16.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 951-14952

CONTROL PANEL

$28.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 951-10640

PUSH ROD

$10.99

$

In Stock, Qty 5

0

39

Troy-Bilt 951-10639A

PRIMER

$15.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$10.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 951-11224

THROTTLE CONTROL KNOB

$7.99

$

In Stock, only 3 left!

0

42

Troy-Bilt 951-14838

CHOKE LEVER

$7.49

$

In Stock, Qty 11

0

43

Troy-Bilt 951-11572

CYLINDER HEAD GASKET

$11.99

$

In Stock, Qty 18

0

44

Troy-Bilt 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

45

Troy-Bilt 951-14105

PUSH ROD
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 951-11899

TAPPET

$8.49

$

In Stock, only 4 left!

0

47

Troy-Bilt 951-12007

PISTON

$35.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 951-11632

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 951-11633

PISTON PIN

$7.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 951-12111

PISTON RING SET
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 12

0

51

Troy-Bilt 951-11573

CONNECTING ROD ASSEMBLY
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

52

Troy-Bilt 910-06278

BOLT-M6 x 16

$4.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 931-05255

DIPSTICK ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 921-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 951-11577

O-RING 15.8 x 2.5

$4.49

$

Usually ships in 3-6 days

0

56

Troy-Bilt 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 951-11368

OIL SEAL
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

58

Troy-Bilt 951-14875

CRANKCASE COVER

$84.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 951-11371A

CRANKCASE COVER GASKET
(Superseded to 751P11371B)

$3.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 951-11576

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-15128

CAMSHAFT

$48.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-14147

CRANKSHAFT

$108.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

67

Troy-Bilt 951-14885

BOLT-M6 x 22

$4.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 951-14997A

FUEL TANK INSULATOR

$11.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-14872

FRONT FUEL TANK BRACKET

$34.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 951-15536

FUEL LINE

$9.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-05103

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 2 left!

0

73

Troy-Bilt 951-14881

GOVERNOR GEAR BRACKET

$23.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 751-19229

GOVERNOR SPRING
(Superseded to 751P19229)

$7.99

$

In Stock, only 4 left!

0

75

Troy-Bilt 951-10664

THROTTLE RETURN SPRING
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

76

Troy-Bilt 951-10665

GOVERNOR ROD
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

77

Troy-Bilt 710-05182

BOLT M6-1 x 32 GR8.8

$4.49

$

In Stock, only 1 left!

0

78

Troy-Bilt 715-04088

DOWEL PIN
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 910-06279

BOLT-M4 x 55

$4.49

$

Usually ships in 3-6 days

0

80

Troy-Bilt 951-10645B

ELECTRIC STARTER

$331.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 951-14884

FUEL CAP

$26.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-14883

FUEL TANK

$96.99

$

In Stock, only 1 left!

0

83

Troy-Bilt 951-14880

FUEL TANK INSULATOR

$15.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-14089

GOVERNOR LEVER

$7.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

86

Troy-Bilt 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

87

Troy-Bilt 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 951-14053

GOVERNOR SHAFT

$15.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 951-11110

AIR FLOW SHIELD

$4.49

$

Usually ships in 3-6 days

0

90

Troy-Bilt 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

91

Troy-Bilt 951-14149

CRANKCASE

$120.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 951-11370

OIL SEAL
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

93

Troy-Bilt 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

94

Troy-Bilt 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

95

Troy-Bilt 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 12

0

96

Troy-Bilt 751-15272

IGNITION MODULE
(Superseded to 751P15272)

$17.99

$

Usually ships in 3-6 days

0

97

Troy-Bilt 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

98

Troy-Bilt 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

99

Troy-Bilt 751-16487

LOWER SHIELD
(Superseded to 751P16487)

$2.99

$

Usually ships in 3-6 days

0

100

Troy-Bilt 951-15806

IGNITION MODULE

$87.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 951-15540A

FLYWHEEL

$184.99

$

Usually ships in 3-6 days

0

102

Troy-Bilt 951-15025

COOLING FAN

$24.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 951-14887

STARTER CUP

$14.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

105

Troy-Bilt 951-05424

RECOIL HOUSING ASSEMBLY

$64.99

$

Usually ships in 3-6 days

0

106

Troy-Bilt 951-15537

BLOWER HOUSING

$39.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 951-15538

RECOIL STARTER ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

108

Troy-Bilt 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

109

Troy-Bilt 710-06280

HEX FLANGE BOLT M6-1 x 10 GR8

$3.99

$

Usually ships in 3-6 days

0

110

Troy-Bilt 951-10630

IGNITION KEY

$6.99

$

Usually ships in 3-6 days

0

111

Troy-Bilt 651-05856

CRANKSHAFT

$

$

Currently unavailable

112

TIMING GEAR

$

$

Not available

113

RECOIL STARTER

$

$

Not available

114

OIL PIPE ASSEMBLY

$

$

Not available

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Troy-Bilt 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

d

Screw, M3×6

$

$

Not available

e

Carburetor Body

$

$

Not available

f

Troy-Bilt 711P06043

HINGE FLOAT PIN
(Superseded to 711-06043)

$0.99

$

Usually ships in 3-6 days

0

g

Troy-Bilt 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

h

Troy-Bilt 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

i

Float

$

$

Not available

j

Troy-Bilt 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

k

Troy-Bilt 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

l

Troy-Bilt 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

m

Troy-Bilt 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 13

0

n

Throttle Shaft

$

$

Not available

o

Throttle Plate

$

$

Not available

p

Gasket

$

$

Not available

q

Idle Jet

$

$

Not available

r

Idle Adjusting Screw

$

$

Not available

s

Mixture Screw

$

$

Not available

t

Troy-Bilt 937-05005

PRIMER LINE

$5.99

$

Usually ships in 3-6 days

0

u

Nozzle Tube

$

$

Not available

v

Main Jet

$

$

Not available

w

Troy-Bilt 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Troy-Bilt 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 10

0

Troy-Bilt 952Z670-QUB

COMPLETE ENGINE 208cc

$930.99

$

Usually ships in 3-6 days

0
