670-JUA - Cub Cadet 280cc Engine att 670-JUA General Assembly Parts Diagram

280cc Engine

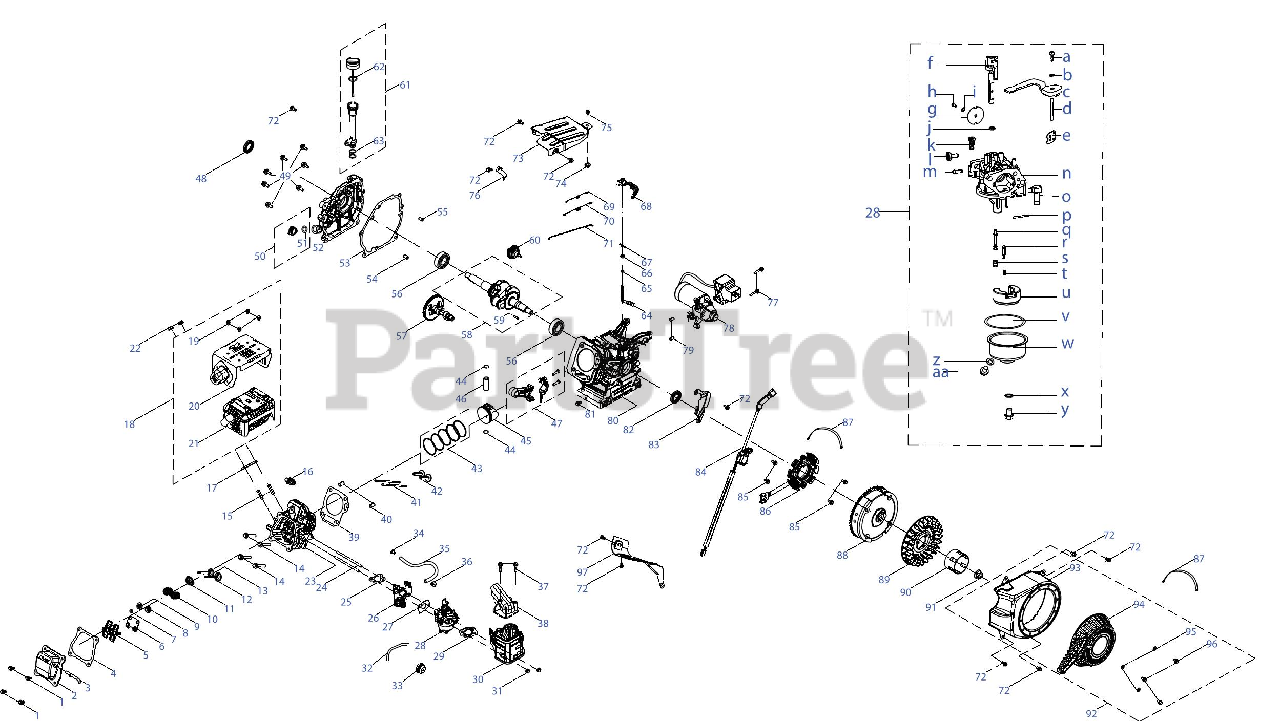

670-JUA General Assembly Parts Diagram

  • Title

1

MTD 710-04968

Bolt, M6x16

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054A

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

MTD 951-14090

Breather Hose

$7.99

$

Usually ships in 3-6 days

0

4

MTD 951-11172

Gasket, Valve Cover
(Superseded to 951-11565)

$10.99

$

In Stock, Qty 12

0

5

MTD 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

6

MTD 951-15139

Rocker Arm Base

$6.99

$

Usually ships in 3-6 days

0

7

MTD 951-12002

Valve Adjust Cap, Exhaust
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

8

MTD 951-12000

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

9

MTD 951-12003

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

10

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

11

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

12

MTD 951-14099

Intake Vavle
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

13

MTD 951-14100

Exhaust Valve
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

14

MTD 710-04933

Bolt, M8x55

$3.99

$

In Stock, Qty 10

0

15

MTD 710-04911

Stud, M8x34

$4.49

$

Usually ships in 3-6 days

0

16

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

17

MTD 951-11289

Gasket, Muffler
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

18

MTD 951-12010A

Muffler

$76.99

$

Usually ships in 3-6 days

0

19

MTD 710-06119

Bolt, M5x8

$5.99

$

Usually ships in 3-6 days

0

20

MTD 908-05055

Muffler Guard

$27.99

$

Usually ships in 3-6 days

0

21

MTD 908-05017

Muffler Body

$72.99

$

Usually ships in 3-6 days

0

22

MTD 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

23

MTD 951-05457

Cylinder Head

$146.99

$

Usually ships in 3-6 days

0

24

MTD 710-05101

Stud, M6x110

$4.49

$

In Stock, only 4 left!

0

25

MTD 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

26

MTD 951-11568

Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

27

MTD 951-11569A

Gasket, Carburetor
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

28

MTD 951-05463

Carburetor

$85.99

$

Usually ships in 3-6 days

0

29

MTD 951-11571

Gasket, Carburetor

$5.99

$

In Stock, Qty 20+

0

30

MTD 951-14796

Air Filter Base

$17.99

$

Usually ships in 3-6 days

0

31

MTD 712-04213

Nut

$6.99

$

In Stock, only 4 left!

0

32

MTD 951-14795

Fuel Hose, 3.2x6.5x530

$9.49

$

Usually ships in 3-6 days

0

33

MTD 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

34

MTD 951-14091

Plug

$4.99

$

Usually ships in 3-6 days

0

35

MTD 951-12613

Fuel Hose, 6.3x12.5x300

$12.99

$

In Stock, only 1 left!

0

36

MTD 951-11700

Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

37

MTD 710-05275

Self-tappling Screw, ST4.2x45

$3.99

$

In Stock, Qty 11

0

38

MTD 951-10961

Heater Box

$16.99

$

In Stock, only 1 left!

0

39

MTD 951-11572

Gasket, Cylinder Head

$11.99

$

In Stock, Qty 18

0

40

MTD 715-04108

Pin, 10x16

$4.49

$

In Stock, only 1 left!

0

41

MTD 951-14105

Push Rod
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

42

MTD 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

43

MTD 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 12

0

44

MTD 951-11632

Circlip

$4.49

$

Usually ships in 3-6 days

0

45

MTD 951-12007

Piston

$35.99

$

Usually ships in 3-6 days

0

46

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

47

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

48

MTD 951-11368

Oil Seal, 25x41.25x6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

49

MTD 710-04932

Bolt, M8x32

$4.49

$

Usually ships in 3-6 days

0

50

MTD 931-09966

Oil Plug

$6.49

$

Usually ships in 3-6 days

0

51

MTD 951-11577

O-Ring, 15.8x2.5

$4.49

$

Usually ships in 3-6 days

0

52

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

53

MTD 951-11371

Gasket, Crankcase
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

54

MTD 715-04096

Pin, 9x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

55

MTD 715-04092

Pin, 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

56

MTD 951-11369

Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

57

MTD 951-11575A

Camshaft

$65.99

$

Usually ships in 3-6 days

0

58

MTD 951-14098

Crankshaft

$115.99

$

Usually ships in 3-6 days

0

59

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

60

MTD 951-11576

Governor Gear
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

61

MTD 951-05020A

Dipstick
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

62

MTD 921-04663

O-Ring, 21x2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

63

MTD 951-12397

O-Ring, 15.5x1.5

$5.49

$

Usually ships in 3-6 days

0

64

MTD 951-14053

Governor Gear Shaft

$15.99

$

Usually ships in 3-6 days

0

65

MTD 736-04461

O-Ring, 5.2x1.9

$3.99

$

Usually ships in 3-6 days

0

66

MTD 951-11902

Oil Seal, 6x11x4
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

67

MTD 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

68

MTD 951-14089

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

69

MTD 951-12100

Governor Spring

$7.49

$

Usually ships in 3-6 days

0

70

MTD 951-10664

Idle Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

71

MTD 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

72

MTD 710-04915

Bolt, M6x12

$4.49

$

In Stock, Qty 20+

0

73

MTD 951-12016

Governor Shield

$7.49

$

Usually ships in 3-6 days

0

74

MTD 712-05015

Nut, M6

$6.99

$

In Stock, Qty 20+

0

75

MTD 710-04943

Bolt, M6x28

$4.49

$

Usually ships in 3-6 days

0

76

MTD 951-11104

Spring Rack

$3.99

$

Usually ships in 3-6 days

0

77

MTD 710-05182

Bolt, M6x32

$4.49

$

In Stock, only 1 left!

0

78

MTD 951-10645B

Electric Starter

$331.99

$

Usually ships in 3-6 days

0

79

MTD 715-04088

Pin, 8x8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

80

MTD 951-14097

Crankcase

$278.99

$

Usually ships in 3-6 days

0

81

MTD 710-04907

Earth Bolt
(Superseded to 951-12514A)

$6.49

$

Usually ships in 3-6 days

0

82

MTD 951-11370

Oil Seal, 25x41.25x6
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

83

MTD 951-11109

Lower Shield

$7.49

$

Usually ships in 3-6 days

0

84

MTD 951-12013

Ignition Module

$110.99

$

Usually ships in 3-6 days

0

85

MTD 710-04919

Bolt, M6x25

$4.49

$

Usually ships in 3-6 days

0

86

MTD 951-15539A

Charging Coil

$78.99

$

Usually ships in 3-6 days

0

87

MTD 725-06031

Tape, L=150mm

$2.49

$

Usually ships in 3-6 days

0

88

MTD 951-15540A

Flywheel

$184.99

$

Usually ships in 3-6 days

0

89

MTD 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

90

MTD 951-14887

Starter Cup

$14.99

$

Usually ships in 3-6 days

0

91

MTD 712-04287

Nut, M14x1.5

$6.99

$

In Stock, only 1 left!

0

92

MTD 951-05455

Recoil Starter

$64.99

$

Usually ships in 3-6 days

0

93

MTD 951-15593

Blower Housing

$36.99

$

Usually ships in 3-6 days

0

94

MTD 951-15594

Recoil Starter

$53.99

$

Usually ships in 3-6 days

0

95

MTD 736-04455

Washer, 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

96

MTD 710-06354

Bolt, M6x10

$6.99

$

Usually ships in 3-6 days

0

97

MTD 951-11113

Shroud

$9.49

$

Usually ships in 3-6 days

0

28

MTD 951-05463

Carburetor

$85.99

$

Usually ships in 3-6 days

0

a

MTD 710-05468

Mixture Screw

$3.99

$

Usually ships in 3-6 days

0

b

Washer, 3

$

$

Not available

c

MTD 951-12811

Choke Lever

$11.99

$

In Stock, only 1 left!

0

d

Choke Shaft

$

$

Not available

e

Choke Plate

$

$

Not available

f

Throttle Shaft

$

$

Not available

g

Throttle Plate

$

$

Not available

h

Screw, M3x6

$

$

Not available

i

Washer, 3

$

$

Not available

j

Gasket

$

$

Not available

k

Idle Jet

$

$

Not available

l

Idle Adjusting Screw

$

$

Not available

m

MTD 951-12019A

Primer Line

$7.49

$

In Stock, only 2 left!

0

n

Carburetor Body

$

$

Not available

o

Fuel Nipple

$

$

Not available

p

Float Pin

$

$

Not available

q

Nozzle Tube

$

$

Not available

r

Needle Valve

$

$

Not available

s

Main Jet

$

$

Not available

t

Needle Valve Spring

$

$

Not available

u

Float

$

$

Not available

v

MTD 951-11589

O-Ring, Float Bowl
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

w

MTD 908-05000

Float Bowl

$

$

Not available

x

MTD 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

y

MTD 710-04945

Bolt

$4.49

$

In Stock, Qty 13

0

z

MTD 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

aa

MTD 710-04938

Drain Bolt

$4.49

$

In Stock, Qty 10

0

MTD 952Z670-JUA

Complete Engine

$832.99

$

Usually ships in 3-6 days

0
