670 (670112) - Cub Cadet Walk-Behind Mower (1982) Deck, Adapter Plate and Chute Deflector Assemblies Parts Diagram

Walk-Behind Mower

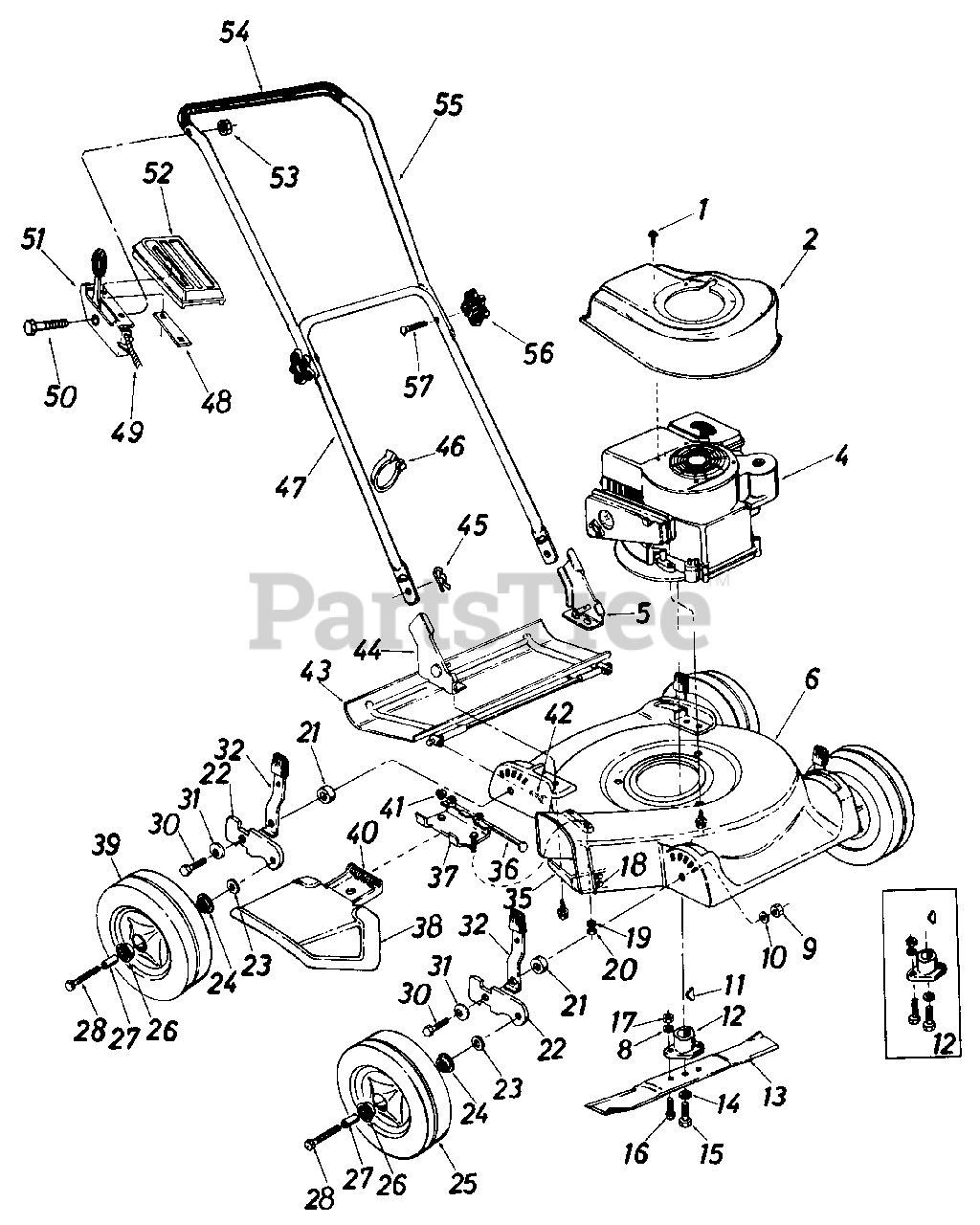

Deck, Adapter Plate and Chute Deflector Assemblies Parts Diagram

  • Title

1

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 10877

Engine Shroud

$

$

Currently unavailable

4

Engine

$

$

Not available

5

Cub Cadet 12945

Handle Mount Brkt. - L.H.

$

$

Not available

6

Cub Cadet 11442

20" Deck Ass'y.

Note: (670112)

$

$

Currently unavailable

Cub Cadet 11443

22" Deck Ass'y.

Note: (680112)

$

$

Currently unavailable

?7

Cub Cadet 710-0654

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

13

Cub Cadet 742-0123

20" Blade

Note: (670112)

$

$

Not available

Cub Cadet 742-0125

22" Blade
(Superseded to 942-0125B)

Note: (680112)

$

$

Not available

14

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 8

0

15

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. - H.T.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

16

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. - H.T.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

18

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

20

Cub Cadet 712-0117

Hex Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

21

Cub Cadet 748-0195

Shoulder Spacer

$

$

Not available

22

Cub Cadet 10937

Pivot Bar

$

$

Not available

23

Cub Cadet 736-0105

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0484

Flanged Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

25

Cub Cadet 734-0850

7" Front Wheel Ass'y. Comp.

Note: (670112)

$

$

Not available

Cub Cadet 734-0851

8" Front Wheel Ass'y. Comp.

Note: (680112)

$

$

Not available

26

Cub Cadet 741-0267

Flanged Ball Bearing 3/8" I.D.

$

$

Not available

27

Cub Cadet 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. - H.T.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

31

Cub Cadet 736-0219

Belleville Washer
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 14082

Spring Lever

$

$

Not available

35

Cub Cadet 12270

Internal Bar

$

$

Currently unavailable

36

Cub Cadet 711-0555

Pivot Pin

$

$

Not available

37

Cub Cadet 12266

Adapter Plate Ass'y.

$

$

Currently unavailable

38

Cub Cadet 12245

Chute Deflector Ass'y. Comp.

$

$

Currently unavailable

39

Cub Cadet 734-0851

Rear Wheel Ass'y. Comp.

$

$

Not available

40

Cub Cadet 732-0253

Torsion Spring

$

$

Not available

41

Cub Cadet 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-0567

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

43

Cub Cadet 11199

Rear Shield Ass'y.

$

$

Currently unavailable

44

Cub Cadet 12946

Handle Mount Brkt. - R.H.

$

$

Not available

45

Cub Cadet 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 726-0188

Cable Tie

$

$

Not available

47

Cub Cadet 749-0449

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

48

Cub Cadet 726-0134

Speed Nut #8-32 - Twin Type

$

$

Not available

49

Cub Cadet 746-0229

Conduit and Wire

$

$

Not available

50

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$5.49

$

In Stock, Qty 10

0

51

Cub Cadet 746-0202

Throttle Control
(Superseded to 746-0800A)

$61.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 731-0344

Plastic Cover

$

$

Not available

53

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet 731-3026

Grip

$

$

Currently unavailable

55

Cub Cadet 749-0384

Upper Handle

$

$

Not available

56

Cub Cadet 720-3012

Hand Knob

$

$

Not available

57

Cub Cadet 710-0405

Curved Hd. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

?58

Cub Cadet 723-0223

Gas Gauge

Note: (680112 Only); (Not Shown)

$

$

Currently unavailable
