670 (590-670-100) - Cub Cadet 58" Tiller Attachment att Main Frame Parts Diagram

58" Tiller Attachment

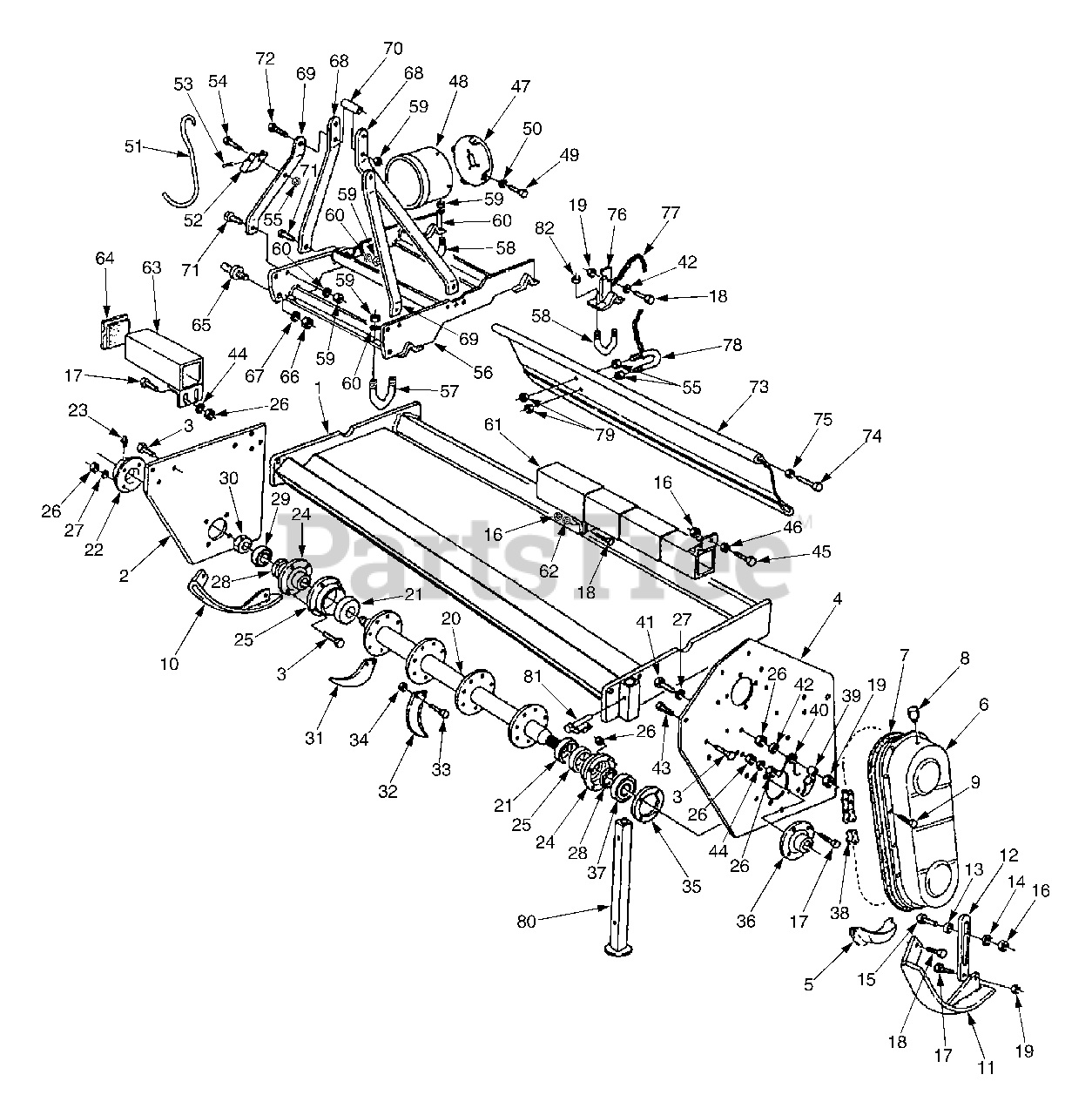

Main Frame Parts Diagram

  • Title

1

Cub Cadet BF-041-0002

Frame 58"

$

$

Currently unavailable

2

Cub Cadet BF-001-1011

Right Side Panel

$

$

Not available

3

Cub Cadet BF-000-1241

Bolt 10x25

$

$

Not available

4

Cub Cadet BF-002-4021

Drive Panel

$

$

Not available

5

Cub Cadet BF-002-4027

Chain Case Protection

$

$

Not available

6

Cub Cadet BF-001-1030

Chain Case Cover

$

$

Not available

7

Cub Cadet BF-002-2032

Gasket

$

$

Not available

8

Cub Cadet BF-001-0035

Breather Cap

$

$

Not available

9

Cub Cadet BF-000-1046

Bolt 10x20

$

$

Not available

10

Cub Cadet BF-011-1041

Skid - Right

$

$

Not available

11

Cub Cadet BF-021-1041

Skid - Left

$

$

Not available

12

Cub Cadet BF-002-1051

Adjustment Arm

$

$

Not available

13

Cub Cadet BF-002-1052

Threaded Washer

$

$

Not available

14

Cub Cadet BF-002-1053

Washer

$

$

Not available

15

Cub Cadet BF-003-0331

Bolt 10x45

$

$

Not available

16

Cub Cadet BF-000-1279

Nut M10

$

$

Not available

17

Cub Cadet BF-000-1008

Bolt 10x30

$

$

Not available

18

Cub Cadet BF-000-1278

Bolt 10x30

$

$

Not available

19

Cub Cadet BF-003-0156

Nut M10

$

$

Not available

20

Cub Cadet BF-043-4081

Rotor 58"

$

$

Not available

21

Cub Cadet BF-002-2074

Dirt Shield

$

$

Not available

22

Cub Cadet BF-003-0091

Outer Cover - Right

$

$

Not available

23

Cub Cadet BF-000-1065

Grease Fitting

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet BF-003-0092

Cover

$

$

Not available

25

Cub Cadet BF-001-0073

Cover

$

$

Not available

26

Cub Cadet BF-000-1010

Nut M10

$

$

Not available

27

Cub Cadet BF-000-1011

Washer M10

$

$

Not available

28

Cub Cadet BF-003-4098

Oil Seal

$

$

Not available

29

Cub Cadet BF-003-0094

Bearing

$74.99

$

In Stock, only 1 left!

0

30

Cub Cadet BF-003-0095

Safety Nut M30x1.5

$

$

Not available

31

Cub Cadet BF-003-0104D

C-Blade - Right

$

$

Not available

32

Cub Cadet BF-003-0104S

C-Blade - Left

$

$

Not available

33

Cub Cadet BF-002-1104

Bolt 12x30

$

$

Not available

34

Cub Cadet BF-002-1105

Nut M12

$

$

Not available

35

Cub Cadet BF-003-4121

Disk (w/Hole)

$

$

Not available

36

Cub Cadet BF-003-4122

Outer Cover Left

$

$

Not available

37

Cub Cadet BF-000-1061

Bearing

$

$

Not available

38

Cub Cadet BF-003-4141

Chain ASA 80x36

$

$

Not available

39

Cub Cadet BF-003-0148

Chain Tensioner

$

$

Not available

40

Cub Cadet BF-003-0158

Spring

$

$

Not available

41

Cub Cadet BF-017-7168

Bolt 10x65

$

$

Not available

42

Cub Cadet BF-003-0157

Flat Washer M10

$

$

Not available

43

Cub Cadet BF-000-1101

Bolt 10x45

$

$

Not available

44

Cub Cadet BF-000-2034

Flat Washer M10

$

$

Not available

45

Cub Cadet BF-003-0331

Bolt 10x50

$

$

Not available

46

Cub Cadet BF-009-0150

Nut M10

$

$

Not available

47

Cub Cadet BF-001-1201

Protection Support

$

$

Not available

48

Cub Cadet BF-001-1207

PTO Shaft Protection

$

$

Not available

49

Cub Cadet BF-001-1210

Bolt 6x12

$

$

Not available

50

Cub Cadet BF-001-1209

Flat Washer M6

$

$

Not available

51

Cub Cadet BF-002-2433

Driveline Hook

$

$

Not available

52

Cub Cadet BF-002-2435

Hook Support

$

$

Not available

53

Cub Cadet BF-005-4422

Cotter Pin D.2

$

$

Not available

54

Cub Cadet BF-009-1446

Bolt 8x25

$

$

Not available

55

Cub Cadet BF-000-1806

Nut M8

$

$

Not available

56

Cub Cadet BF-002-4241

Side Shift 3rd Point Hitch

$

$

Not available

57

Cub Cadet BF-001-1251

U Bolt

$

$

Not available

58

Cub Cadet BF-001-1253

U Bolt

$

$

Not available

59

Cub Cadet BF-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

60

Cub Cadet BF-000-1077

Washer

$

$

Not available

61

Cub Cadet BF-022-4260

Protection 58"

$

$

Not available

62

Cub Cadet BF-000-1280

Washer M10

$

$

Not available

63

Cub Cadet BF-031-1265

Right Protection 50"

$

$

Not available

64

Cub Cadet BF-001-1273

Plastic Cap

$

$

Not available

65

Cub Cadet BF-000-5550

Hitch Pin

$78.99

$

In Stock, only 2 left!

0

66

Cub Cadet BF-000-5542

Nut M20

$3.49

$

In Stock, only 2 left!

0

67

Cub Cadet BF-000-5351

Washer M20

$2.99

$

Usually ships in 3-6 days

0

68

Cub Cadet BF-001-1282

Top Hitch Arm

$

$

Not available

69

Cub Cadet BF-001-1283

Top Hitch Support

$

$

Not available

70

Cub Cadet BF-002-1285

Spacer

$

$

Not available

71

Cub Cadet BF-002-3265

Bolt 12x40

$

$

Not available

72

Cub Cadet BF-003-4286

Bolt 12x100

$

$

Not available

73

Cub Cadet BF-043-0303

Tail Gate 58"

$

$

Not available

74

Cub Cadet BF-003-0309

Bolt 16x70

$

$

Not available

75

Cub Cadet BF-000-3124

Nut M16

$

$

Not available

76

Cub Cadet BF-001-1311

Chain Hitch

$

$

Not available

77

Cub Cadet BF-001-0318

Chain

$

$

Not available

78

Cub Cadet BF-001-1327

U Bolt

$

$

Not available

79

Cub Cadet BF-001-1328

Nut M8

$

$

Not available

80

Cub Cadet BF-001-1332

Stand

$

$

Not available

81

Cub Cadet BF-001-1333

Cotter Pin 10x70

$

$

Not available

82

Cub Cadet BF-003-0064

Nut M12

$

$

Not available
