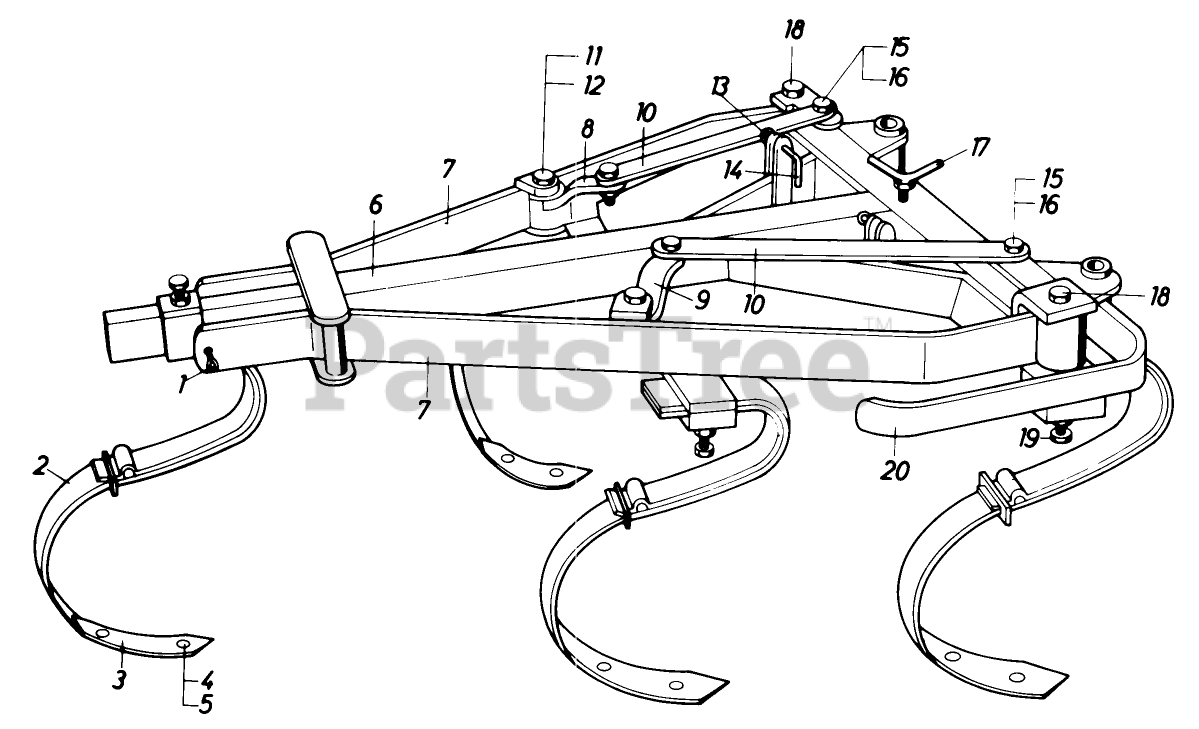

67-42CR01 - Toro 42" Cultivator Attachment (1976) PARTS LIST FOR 42" CULTIVATOR (FACTORY ORDER NUMBER 67-42CR01) Parts Diagram

42" Cultivator Attachment

PARTS LIST FOR 42" CULTIVATOR (FACTORY ORDER NUMBER 67-42CR01) Parts Diagram

  • Title

1

Toro 251208

Cotter Pin

$

$

Not available

2

Toro 251301

Tooth

$

$

Not available

3

Toro 251302

Reversible Blade

$

$

Not available

4

Toro 251303

Plow Bolt

$

$

Not available

5

Toro 250374

Nut

$

$

Not available

6

Toro 251305

Frame Assembley

$

$

Not available

7

Toro 251306

Side Support

$

$

Not available

8

Toro 251307

Pivot Arm (Left)

$

$

Not available

9

Toro 251308

Pivot Arm (Right)

$

$

Not available

10

Toro 251309

Aligning Arm

$

$

Not available

11

Toro 251310

Bolt

$

$

Currently unavailable

12

Toro 251311

Nut

$

$

Not available

13

Toro 251066

Hairpin Cotter

$

$

Not available

14

Toro 251313

"L" Shaped Clevis Pin

$

$

Not available

15

Toro 251314

Bolt

$

$

Not available

16

Toro 251315

Nut

$

$

Not available

17

Toro 251316

Adjusting Bolt

$

$

Not available

18

Toro 251317

Pivot Bolt

$

$

Not available

19

Toro 251318

Bolt

$

$

Not available

20

Toro 251319

Sliding Arm (Right)

$

$

Not available

20

Toro 251320

Sliding Arm (Left)

$

$

Not available
