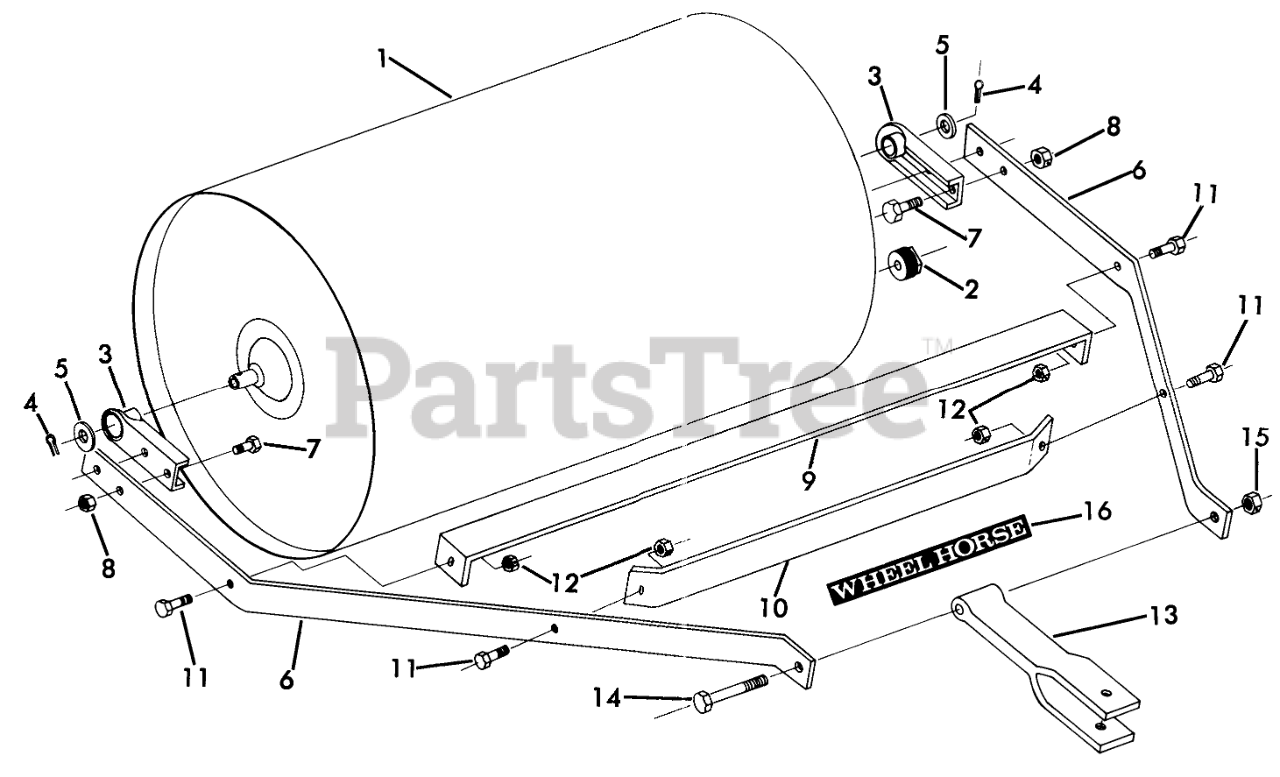

67-36RL01 - Toro 36" Roller (1976) PARTS LIST FOR 36" LAWN ROLLER (FACTORY ORDER NUMBER 67-36RL01) Parts Diagram

36" Roller

PARTS LIST FOR 36" LAWN ROLLER (FACTORY ORDER NUMBER 67-36RL01) Parts Diagram

  • Title
1

Toro 226043

Drum Assembly

$

$

Not available

2

Toro 226044

Pipe Plug

$

$

Not available

3

Toro 226042

Hub (w/Bushing)

$

$

Not available

4

Toro 932037

Pin-Cotter
(Superseded to 9320374)

$

$

Not available

5

Toro 920017

WASHER
(Superseded to 3256-62)

$1.49

$

Usually ships in 3-6 days

0

6

Toro 226045

Frame Side Bar

$

$

Not available

7

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 226046

Scraper Bar

$

$

Not available

10

Toro 226047

Frame Support

$

$

Not available

11

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

12

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

13

Toro 226041

HITCH ASSEMBLY

$

$

Not available

14

Toro 908067

Bolt 1/2-13 x 3 1/2

$

$

Not available

15

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

16

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available
