67-11WG01 - Toro 4-Wheel Wagon (1976) PARTS LIST-UTILITY WAGON Parts Diagram

4-Wheel Wagon

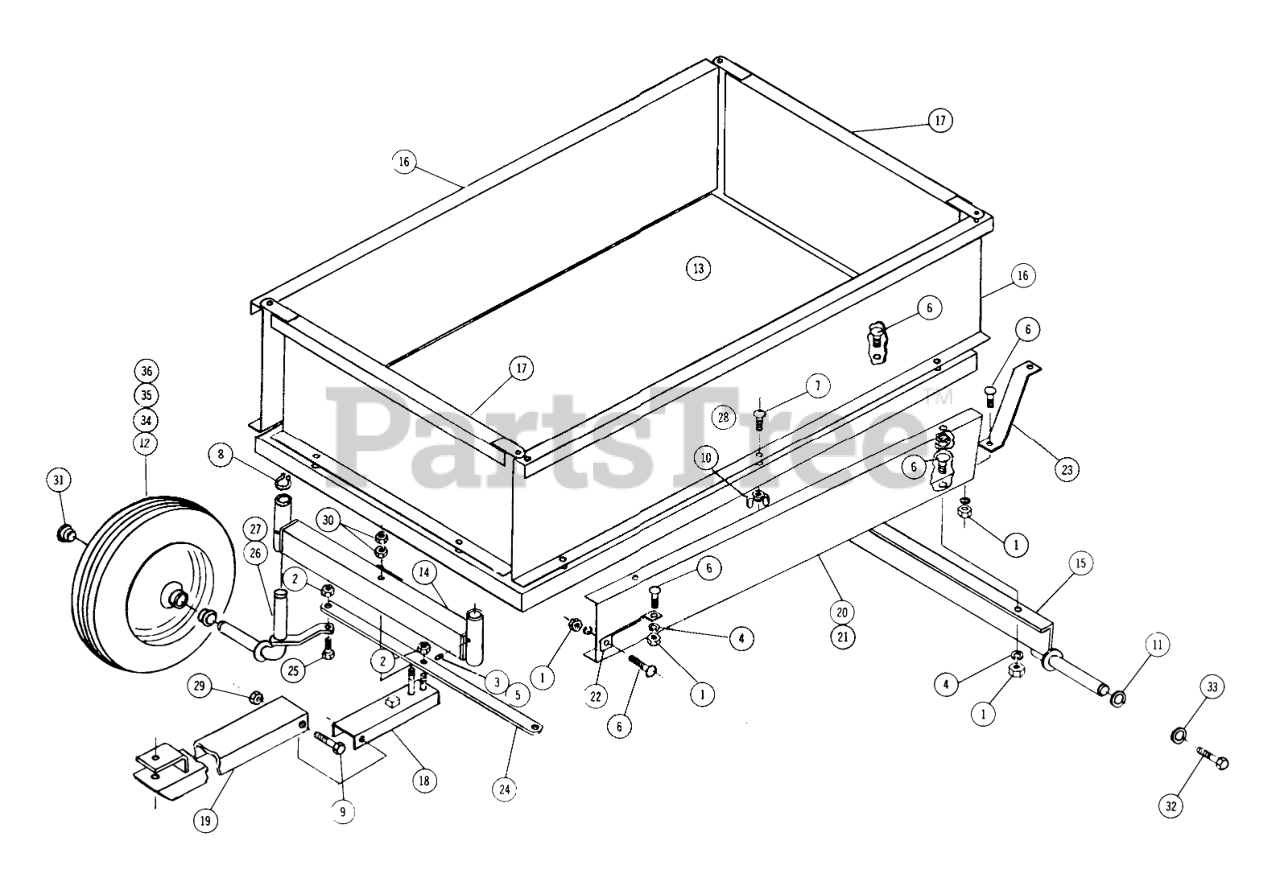

PARTS LIST-UTILITY WAGON Parts Diagram

  • Title
1

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

2

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

3

Toro 1030

Zerk

$

$

Not available

4

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

5

Toro 920218

Washer (Grease Fitting)

$

$

Currently unavailable

6

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

7

Toro 900066

Carriage Bolt
(Superseded to 323-15)

$1.99

$

In Stock, only 4 left!

0

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

9

Toro 908065

HEX HD CAP SCREW

$

$

Not available

10

Toro 915586

Wing Nut 3/8-16

$

$

Not available

11

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

12

Toro 1758

Tire & Wheel

$

$

Not available

13

Toro 3007

Bed

$

$

Currently unavailable

14

Toro 3050

Front Axle Assembly

$

$

Currently unavailable

15

Toro 3014

Rear Axle Assembly

$

$

Not available

16

Toro 3018

Side Panel

$

$

Not available

17

Toro 3019

End Panel
(Superseded to 703248)

$

$

Not available

18

Toro 3042

Swivel Hitch Assembly

$

$

Not available

19

Toro 3044

Draw Bar Assembly

$

$

Currently unavailable

20

Toro 3032

Clip

$

$

Currently unavailable

21

Toro 3033

Bed Support L.H.

$

$

Currently unavailable

22

Toro 3034

Front Brace

$

$

Not available

23

Toro 3035

Rear Brace

$

$

Currently unavailable

24

Toro 3047

Tie Rod

$

$

Not available

25

Toro 3608

Clevis Pin

$

$

Currently unavailable

26

Toro 5270

Spindle Assembly R.H.

$

$

Not available

27

Toro 5271

Spindle Assembly L.H.

$

$

Not available

28

Toro 102831

Decal
(Superseded to 108851)

$41.99

$

Usually ships in 3-6 days

0

29

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

30

Toro 915240

Jam Nut 5/8-11

$

$

Not available

31

Toro 1521

BEARING

$

$

Not available

32

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

33

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

34

Toro 1760

Tire

$

$

Not available

35

Toro 1761

Tube

$

$

Not available

36

Toro 1759

Wheel

$

$

Not available

Toro 3039

Hitch Plate

Note: Not shown or included. Use with 8-5521 Slot Hitch only.

$

$

Not available
