669 (590-669-100) - Cub Cadet 42" Tiller Attachment att Gearbox Parts Diagram

42" Tiller Attachment

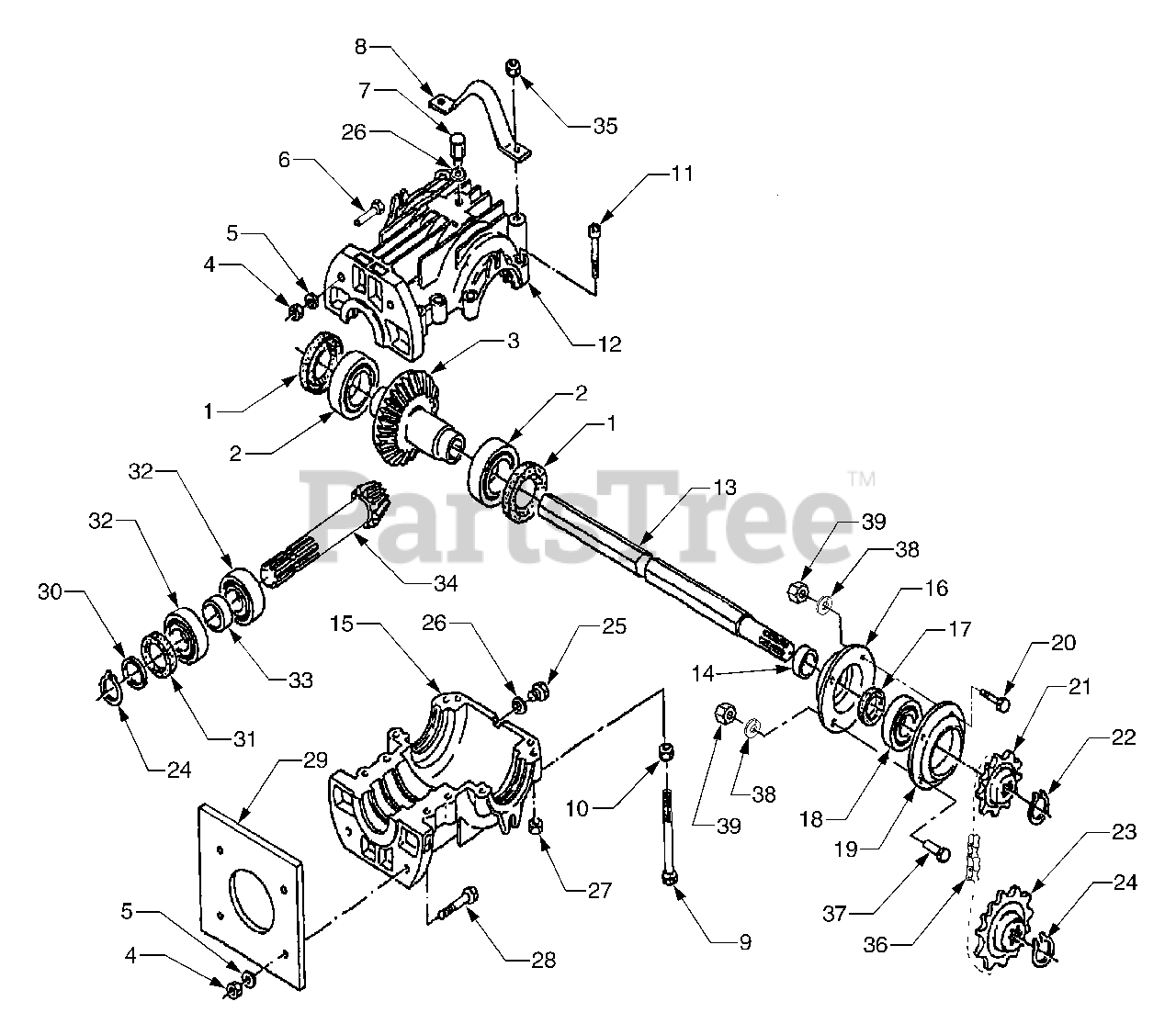

Gearbox Parts Diagram

  • Title

$26.99

$

In Stock, only 1 left!

0

$

$

Not available

3

Cub Cadet BF-001-0182

Ring Gear Complete 540 rpm

$

$

Not available

4

Cub Cadet BF-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

5

$

$

Not available

6

Cub Cadet BF-000-7255

Bolt, 12 x 35

$

$

Not available

7

Cub Cadet BF-001-0177

Breather Cap

$

$

Not available

$

$

Currently unavailable

9

Cub Cadet BF-010-1215

Bolt 10x140

$

$

Not available

$

$

Not available

11

$

$

Not available

12

Cub Cadet BF-001-1423

Gearbox Housing with Hole

$

$

Currently unavailable

13

Cub Cadet BF-021-0158

Hexagonal Shaft

$

$

Not available

$

$

Not available

15

Cub Cadet BF-005-6681

Gearbox Housing without Hole

$

$

Not available

$

$

Not available

17

$

$

Not available

$74.99

$

In Stock, only 1 left!

0

19

Cub Cadet BF-001-0143

Outer Cover - Left

$

$

Not available

20

Cub Cadet BF-002-6329

Bolt M10 x 45

$

$

Not available

21

Cub Cadet BF-001-1118

Sprocket Z14 540 rpm

$

$

Not available

22

Cub Cadet BF-001-0122

Snap Ring 30 External

$

$

Not available

23

Cub Cadet BF-001-0112

Sprocket Z16 540 rpm

$

$

Not available

24

Cub Cadet BF-004-2122

Snap Ring 35 External

$

$

Not available

25

$

$

Not available

$

$

Not available

$

$

Not available

28

$

$

Not available

29

Cub Cadet BF-001-0168

Metal Cover

$

$

Not available

30

Cub Cadet BF-003-4196

Spacer Washer

$

$

Not available

31

$28.99

$

Usually ships in 3-6 days

0

$

$

Not available

$

$

Not available

34

Cub Cadet BF-001-0187

Pinion Gear

$

$

Not available

$

$

Not available

36

Cub Cadet BF-001-0125

Chain ASA 60x46

$

$

Not available

37

Cub Cadet BF-000-3176

Bolt M10 x 25

$

$

Currently unavailable

38

Cub Cadet BF-000-1280

Lockwasher, 10mm

$

$

Not available

39

$

$

Not available

Cub Cadet BF-050-0666

Gearbox Complete

$

$

Currently unavailable
