66 - Husqvarna Chainsaw (1988-08) Crankcase Assembly Parts Diagram

Chainsaw

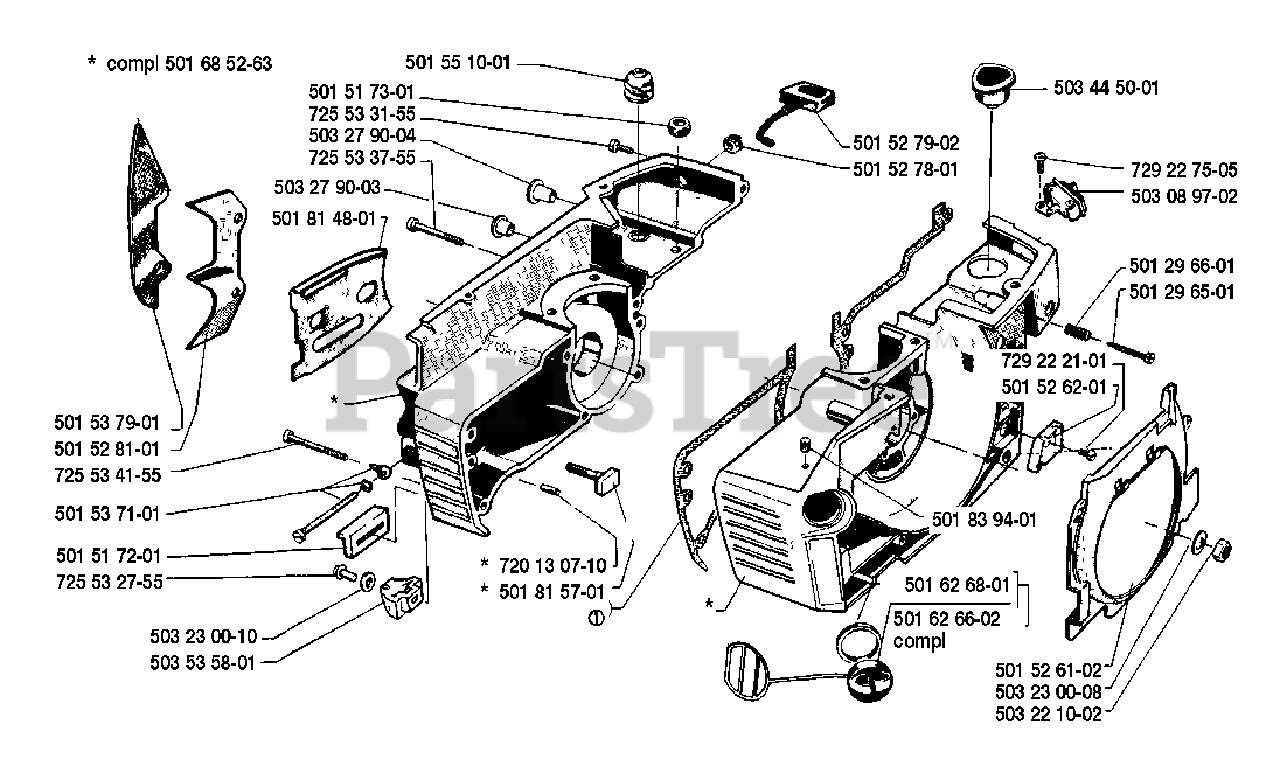

Crankcase Assembly Parts Diagram

  • Title
501685263

Husqvarna 501685263

CRANK CASE W/BEARINGS

$

$

Not available

501551001

$

$

Not available

501517301

Husqvarna 501517301

RUBBER BELLOWS

$

$

Not available

725533155

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

503279004

$

$

Not available

725533755

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 6

0

503279003

$

$

Not available

501814801

Husqvarna 501814801

PROTECTION PLATE

$8.99

$

In Stock, only 2 left!

0

501537901

Husqvarna 501537901

FELLING DOG NLA

$

$

Not available

501528101

Husqvarna 501528101

FELLING DOG

$13.99

$

Usually ships in 3-10 days

0

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 7

0

501537101

Husqvarna 501537101

CHAIN TENSIONER

$24.99

$

In Stock, only 3 left!

0

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 2 left!

0

725532755

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, only 3 left!

0

503230010

Husqvarna 503230010

WASHER 5.3X10

$

$

Not available

720130710

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

501815701

$7.49

$

In Stock, only 2 left!

0

503535801

Husqvarna 503535801

CHAIN CATCHER

$8.99

$

In Stock, Qty 11

0

501526201

$

$

Not available

501839401

Husqvarna 501839401

OIL TANK VENT

$5.99

$

Usually ships in 3-10 days

0

501626801

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, only 1 left!

0

501626602

$13.99

$

Usually ships in 3-10 days

0

501526102

Husqvarna 501526102

AIR CONDUCTOR

$

$

Not available

503230008

Husqvarna 503230008

WASHER 10.5X16

$3.49

$

In Stock, Qty 5

0

503221002

$6.99

$

In Stock, Qty 6

0

501527801

$7.49

$

In Stock, only 2 left!

0

501527902

Husqvarna 501527902

CHOKE CONTROL

$9.49

$

In Stock, only 1 left!

0

503445001

$6.99

$

In Stock, Qty 11

0

729227505

Husqvarna 729227505

SCREW CSK B6X6
(Superseded to 503212806)

$6.49

$

Usually ships in 3-10 days

0

503089702

Husqvarna 503089702

SWITCH
(Superseded to 503717901)

$17.99

$

In Stock, Qty 6

0

501296601

$4.99

$

In Stock, Qty 9

0

501296501

$3.49

$

In Stock, Qty 11

0

729222101

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available
