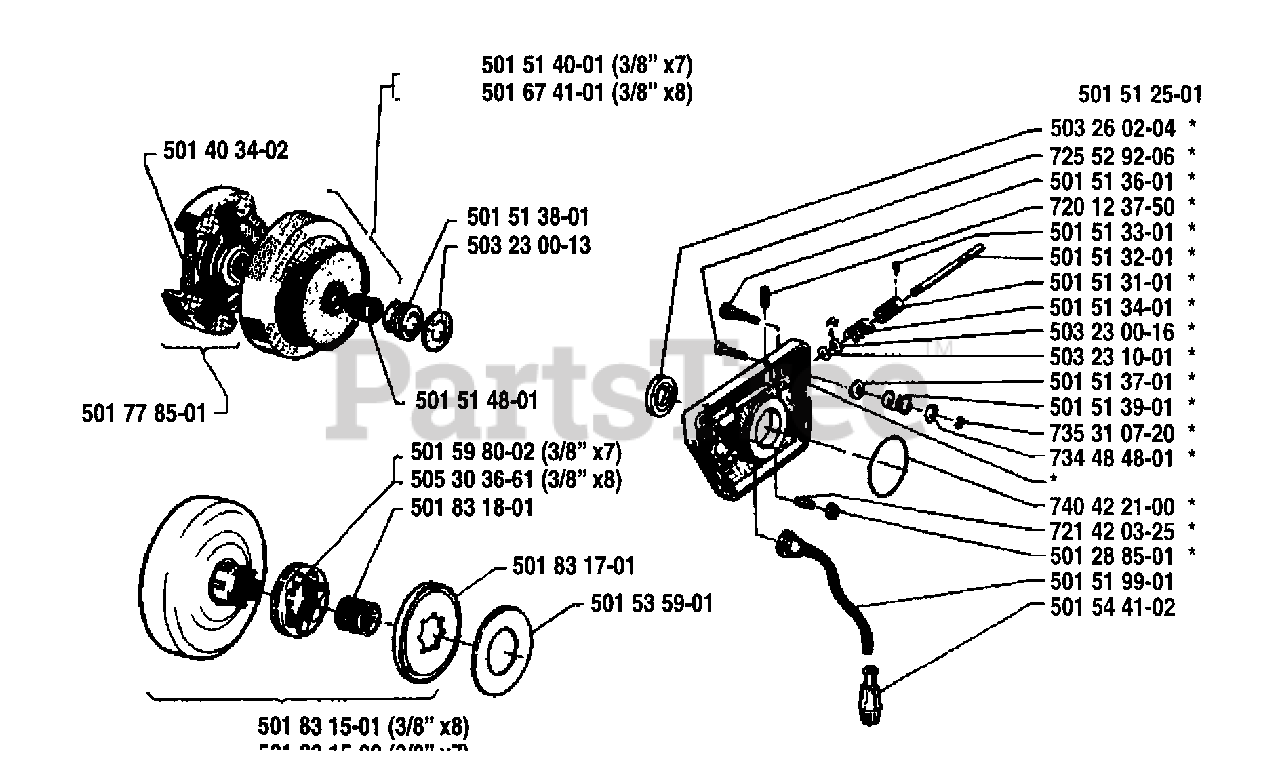

66 - Husqvarna Chainsaw (1987-06) Oil Pump/Clutch Parts Diagram

Chainsaw

Oil Pump/Clutch Parts Diagram

  • Title
501403402

Husqvarna 501403402

CLUTCH SPRING

$5.99

$

Usually ships in 3-10 days

0

501514001

Husqvarna 501514001

CLUTCH DRUM 3/8 X 7
(Superseded to 503650901)

$

$

Not available

501674101

Husqvarna 501674101

CLUTCH DRUM 3/8 X 8
(Superseded to 503650901)

$

$

Not available

501513801

Husqvarna 501513801

WORM WHEEL

$7.99

$

In Stock, Qty 6

0

503230013

Husqvarna 503230013

WASHER 13.1X20

$4.99

$

In Stock, only 1 left!

0

501514801

Husqvarna 501514801

SUPPORT BUSHING

$34.99

$

Usually ships in 3-10 days

0

501778501

Husqvarna 501778501

CLUTCH CPL
(Superseded to 503744402)

$60.99

$

Usually ships in 3-10 days

0

501598002

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$8.49

$

In Stock, Qty 5

0

505303661

Husqvarna 505303661

Power Mate Rim
(Superseded to 640200216)

$7.99

$

Usually ships in 3-10 days

0

501831801

Husqvarna 501831801

NEEDLE BEARING
(Superseded to 640200011)

$

$

Not available

501831701

Husqvarna 501831701

DUST PROTECTION

$7.99

$

In Stock, only 4 left!

0

501535901

$5.99

$

In Stock, Qty 7

0

501831501

Husqvarna 501831501

SPROCKET DRUM 3/8 X 8T
(Superseded to 501831503)

$62.99

$

In Stock, only 1 left!

0

501512501

$113.99

$

In Stock, only 1 left!

0

503260204

Husqvarna 503260204

SEALING RING

$14.99

$

In Stock, Qty 6

0

725529206

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, only 2 left!

0

501513601

Husqvarna 501513601

CONTROL SCREW

$3.49

$

In Stock, only 2 left!

0

720123750

Husqvarna 720123750

PARALLEL PIN 3X18

$4.99

$

Usually ships in 3-10 days

0

501513301

$3.49

$

Usually ships in 3-10 days

0

501513201

$9.49

$

Usually ships in 3-10 days

0

501513101

Husqvarna 501513101

GEAR WHEEL

$33.99

$

In Stock, only 1 left!

0

501513401

$5.99

$

Usually ships in 3-10 days

0

503230016

Husqvarna 503230016

WASHER 5.1X8.5

$4.99

$

In Stock, Qty 20+

0

503231001

Husqvarna 503231001

WASHER 5.1X8.5

$

$

Not available

501513701

$4.99

$

Usually ships in 3-10 days

0

501513901

$5.99

$

Usually ships in 3-10 days

0

735310720

Husqvarna 735310720

E-RING 3.2

$3.49

$

Usually ships in 3-10 days

0

734484801

$4.99

$

Usually ships in 3-10 days

0

740422100

$4.99

$

In Stock, only 3 left!

0

721420325

Husqvarna 721420325

SPRING PIN 3X6

$3.49

$

Usually ships in 3-10 days

0

501288501

$8.99

$

In Stock, only 1 left!

0

501519901

$11.99

$

Usually ships in 3-10 days

0

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0
