66-7700 - Toro Electric Start Kit for 12VDC, B&S Power Shift Snow Thrower 12V ELECTRIC STARTER KIT Parts Diagram

Electric Start Kit for 12VDC, B&S Power Shift Snow Thrower

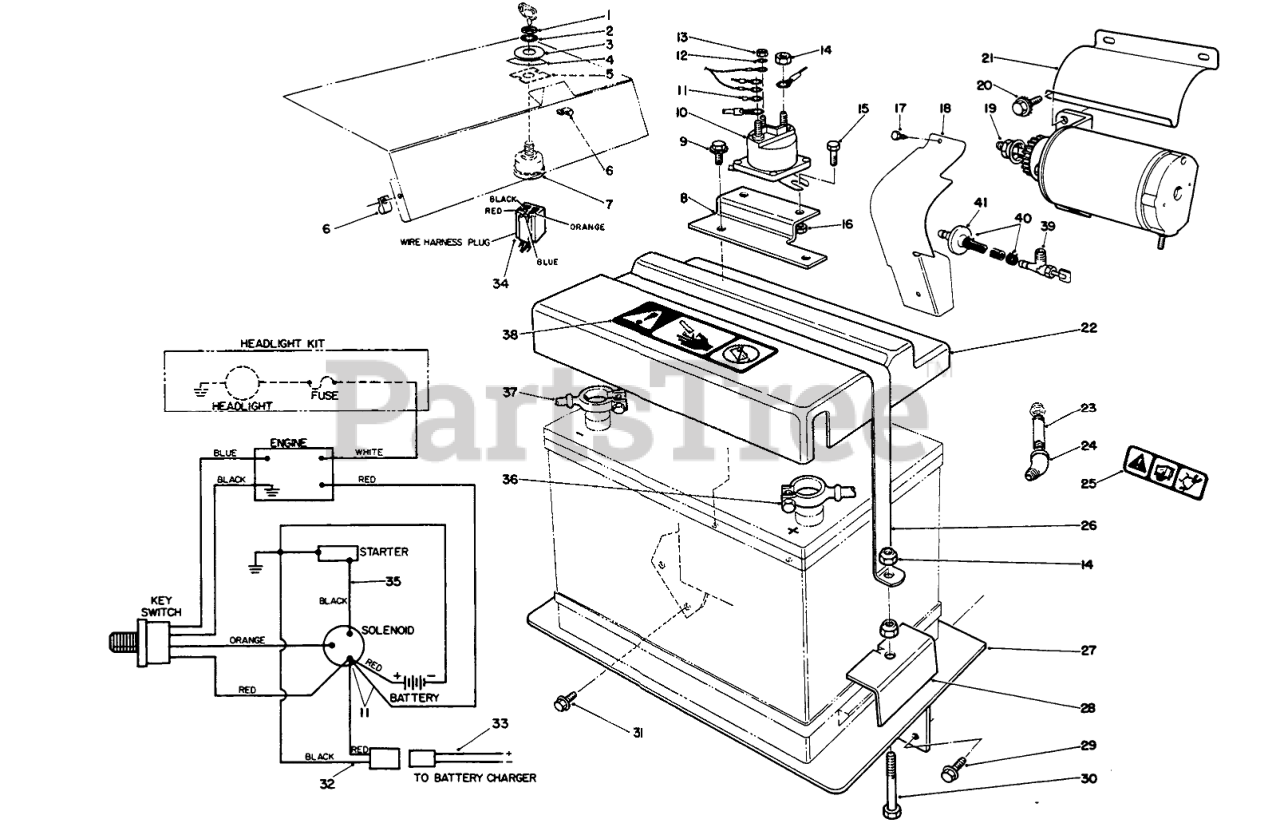

12V ELECTRIC STARTER KIT Parts Diagram

  • Title

1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

3

Toro 66-7690

WASHER

$

$

Not available

4

Toro 66-7660

DECAL

$

$

Not available

5

Toro 66-7680

ADAPTER

$

$

Not available

6

Toro 2412-101

R CLAMP

$

$

Not available

7

Toro 23-0660

Switch-Starter (Incl. Ref. #1-2)

$23.99

$

In Stock, Qty 5

0

8

Toro 66-7630

BRACKET

$

$

Not available

9

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

10

Toro 6-1600

SOLENOID

$

$

Not available

11

Toro 218-575

RING TONGUE TERMINAL

$

$

Not available

12

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 934984

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

18

Toro 280265

Shield-Pinion

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

19

Briggs & Stratton 490420

Starter Motor Ass-y
(Superseded to 795121)

Note: Obtain parts from www.briggsandstratton.com

$143.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 93535

Crew
(Superseded to 691058)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 11

0

21

Briggs & Stratton 222592

Shield-Dip
(Superseded to 692860)

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

Usually ships in 2-12 days

0

22

Toro 22-8900

BATTERY COVER

$

$

Not available

23

Toro 289-36

NIPPLE 3/8NPTX 1.50

$

$

Not available

24

Toro 2811-3

ELBOW

$

$

Not available

25

Toro 63-3470

DECAL-WARNING

$

$

Not available

26

Toro 22-8850

Strap Battery
(Superseded to 22-8850-03)

$103.99

$

Usually ships in 3-6 days

0

27

Toro 66-7600

Plate-Battery

$

$

Not available

28

Toro 22-8870

BATTERY CLAMP

$

$

Not available

29

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

30

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

31

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

32

Toro 29-7830

MALE WIRE ASM

$20.99

$

Usually ships in 3-6 days

0

33

Toro 29-7820

FEMALE WIRE ASM

$

$

Not available

34

Toro 66-7650

WIRE HARNESS

$

$

Not available

35

Toro 22-9310

STRT MTR-SOLNOID WIRE

$

$

Not available

36

Toro 22-9320

BATT-SOLENOID CABLE

$274.99

$

Usually ships in 3-6 days

0

37

Toro 22-9330

BATT-GROUND CABLE

$

$

Not available

38

Toro 66-7640

DECAL

$41.99

$

Usually ships in 3-6 days

0

39

Briggs & Stratton 399949

Valve-Fuel Tank
(Superseded to 492649)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

40

Toro 2210-307

Clamp

$

$

Not available

41

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

Toro 26-3870

BATTERY CHARGER

Note: Not illustrated

$

$

Not available

Toro 26-7140

BATT CHGR ASM (EURPN)

Note: Not illustrated

$

$

Not available
