66-6200 - Toro Snow Cab, Power Shift Snow Throwers SNOW CAB ASSEMBLY Parts Diagram

Snow Cab, Power Shift Snow Throwers

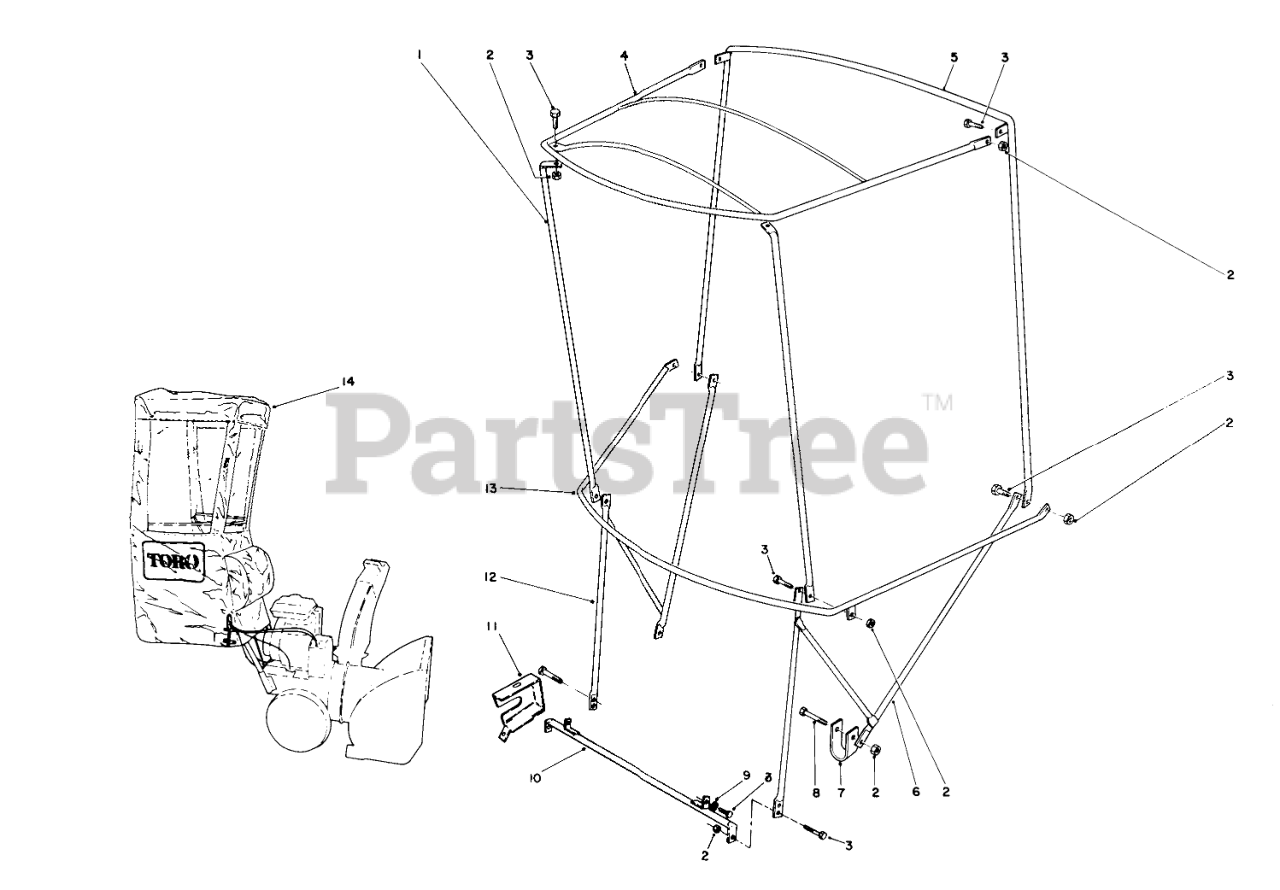

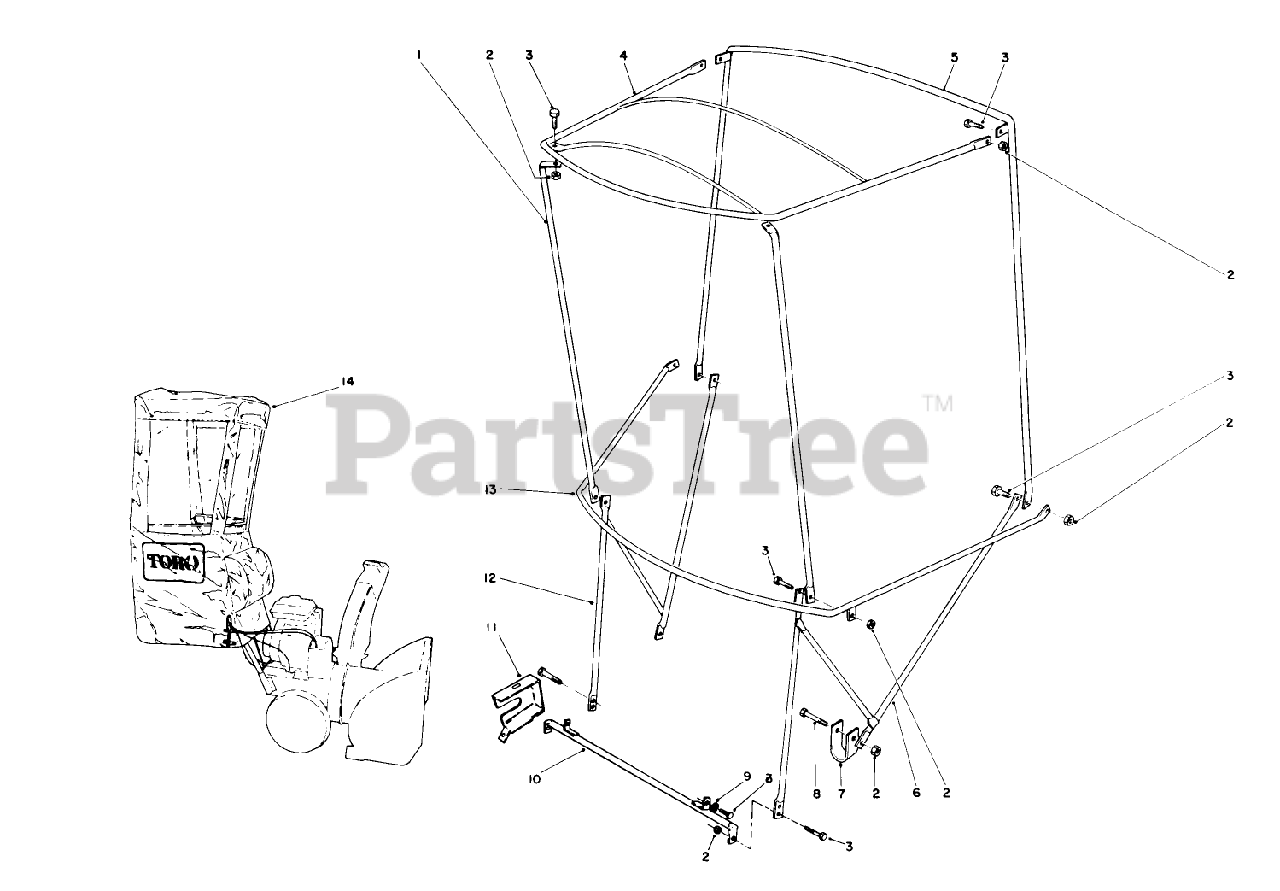

SNOW CAB ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 2-8010

Top Frame

$

$

Currently unavailable

5

Toro 12-8030

BOW-VERTICAL, REAR

$

$

Not available

6

Toro 66-6230

Bracket-LH

$

$

Not available

7

Toro 66-6240

CLAMP

$

$

Not available

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

10

Toro 66-6210

Bracket-Base

$

$

Not available

11

Toro 63-3330

COVER-LOCK, LEVER

$

$

Not available

12

Toro 66-6220

BRACKET-RH

$195.99

$

Usually ships in 3-6 days

0

13

Toro 12-8020

BOW-CURVED

$

$

Not available

14

Vinyl Cover

$

$

Not available
