66-59BN01 - Toro 59" Snow/Dozer Blade (1977) PARTS LIST FOR A-FRAME ASSEMBLY (FIG. B) Parts Diagram

59" Snow/Dozer Blade

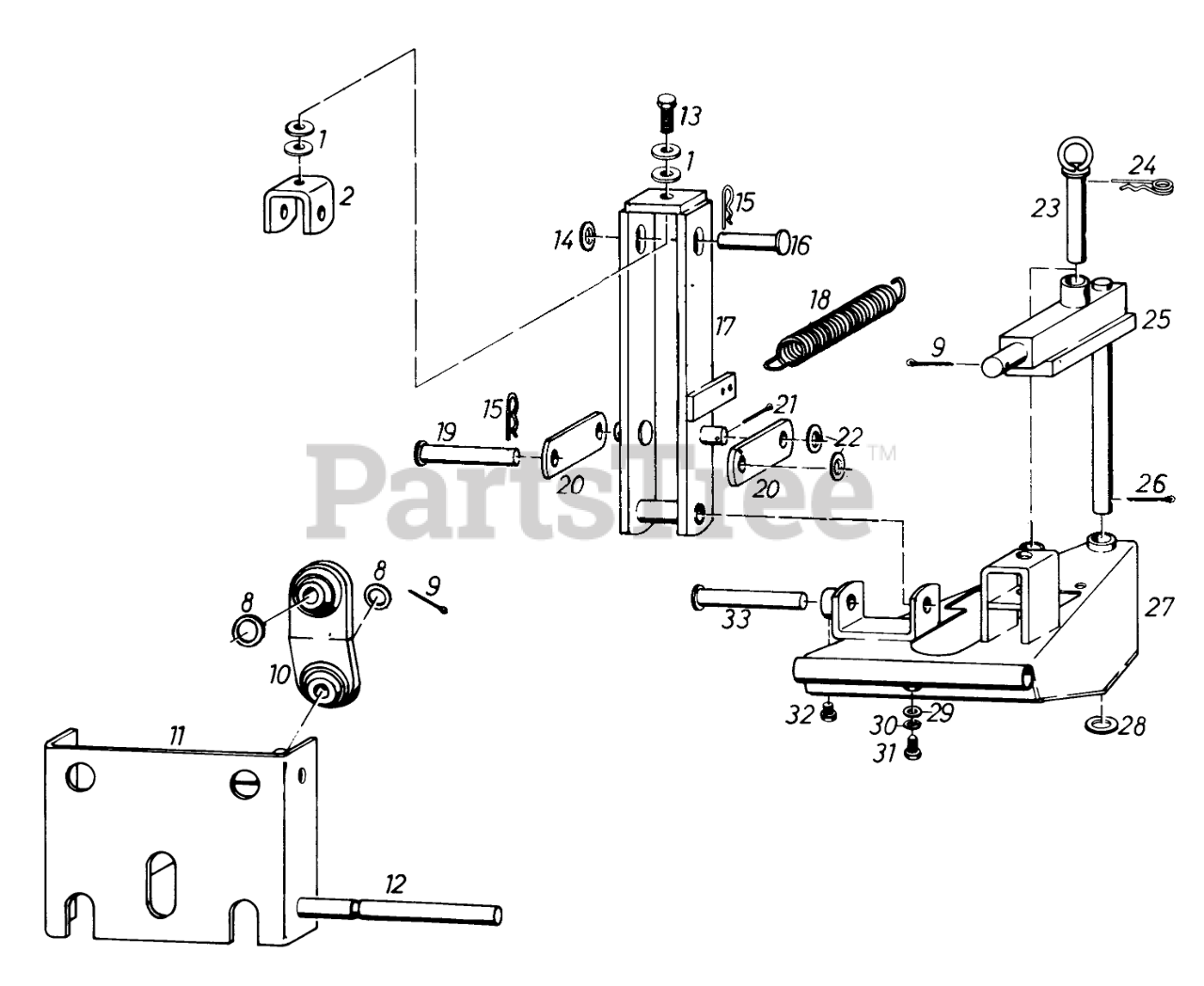

PARTS LIST FOR A-FRAME ASSEMBLY (FIG. B) Parts Diagram

  • Title
1

Toro 251204

Washer

$

$

Not available

2

Toro 251180

Bracket

$

$

Not available

8

$

$

Not available

9

Toro 251207

Cotter Pin

$

$

Not available

10

Toro 251185

Joint

$

$

Not available

11

Toro 251184

Support Plate

$

$

Not available

12

Toro 251181

Mounting Rod

$

$

Not available

13

$

$

Not available

14

Toro 251425

Washer

$

$

Not available

15

Toro 251066

Hairpin Cotter

$

$

Not available

16

Toro 251218

Clevis Pin

$

$

Not available

17

Toro 251186

Lift Bracket

$

$

Not available

18

Toro 251082

Spring

$

$

Not available

19

Toro 251215

Clevis Pin

$

$

Not available

20

Toro 251179

Guide Plate

$

$

Not available

21

$

$

Not available

22

Toro 251202

Washer

$

$

Not available

23

Toro 251189

Centering Pin

$

$

Not available

24

Toro 251067

Hairpin Cotter

$

$

Not available

25

Toro 251187

Swing Shaft Assembly

$

$

Not available

26

Toro 250208

Bracket

$

$

Not available

27

Toro 251188

A-Frame

$

$

Not available

28

Toro 251203

Washer

$

$

Not available

29

Toro 250408

Washer

$

$

Not available

30

Toro 250457

Lockwasher

$

$

Not available

31

$

$

Not available

32

$

$

Not available

33

Toro 251214

Clevis Pin

$

$

Not available
