66-48ST01 - Toro 48" Snow Thrower Attachment (1976) 48" SNOW THROWER (SERIAL #983056 & UP- )-MODEL NO. 6-7452 Parts Diagram

48" Snow Thrower Attachment

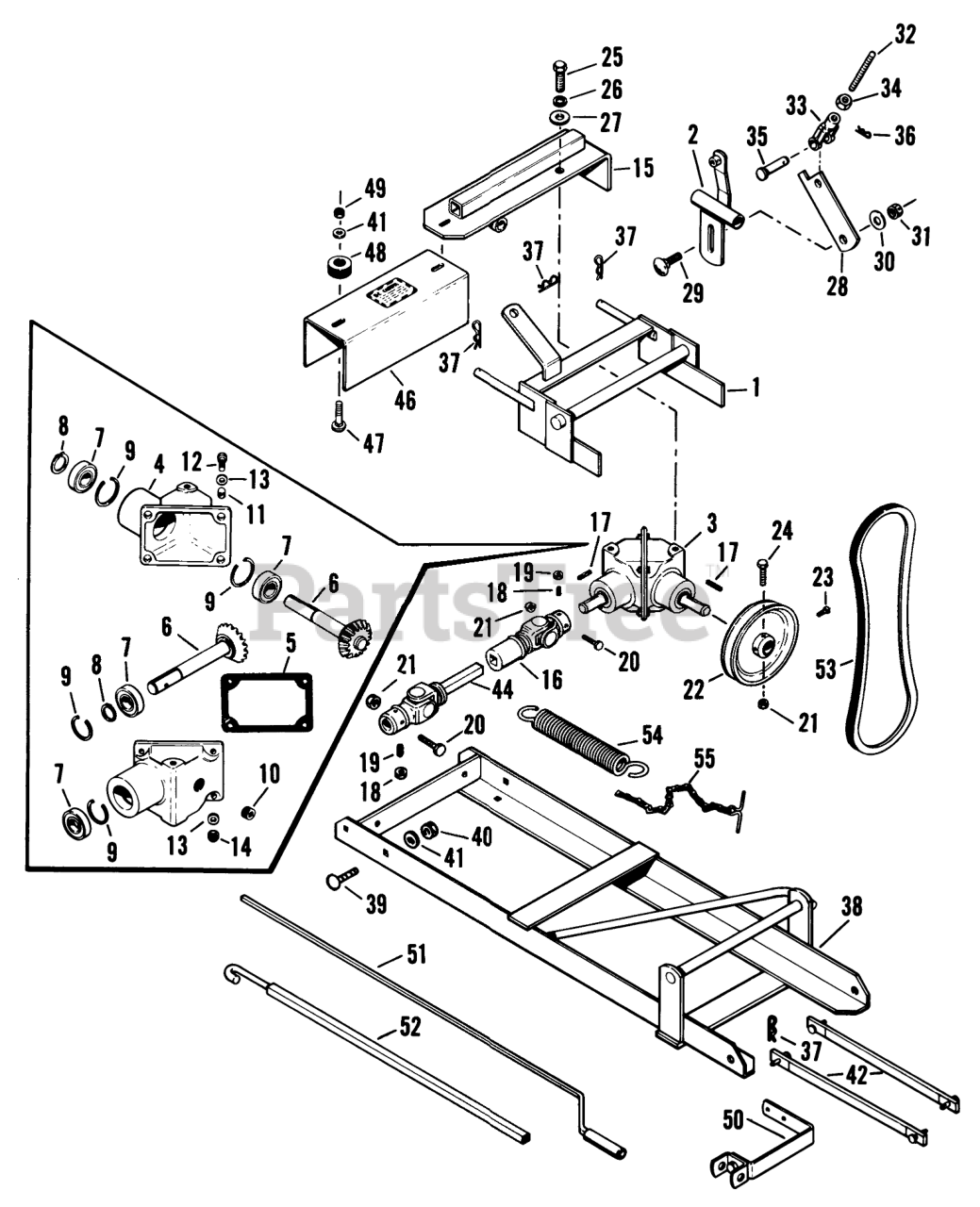

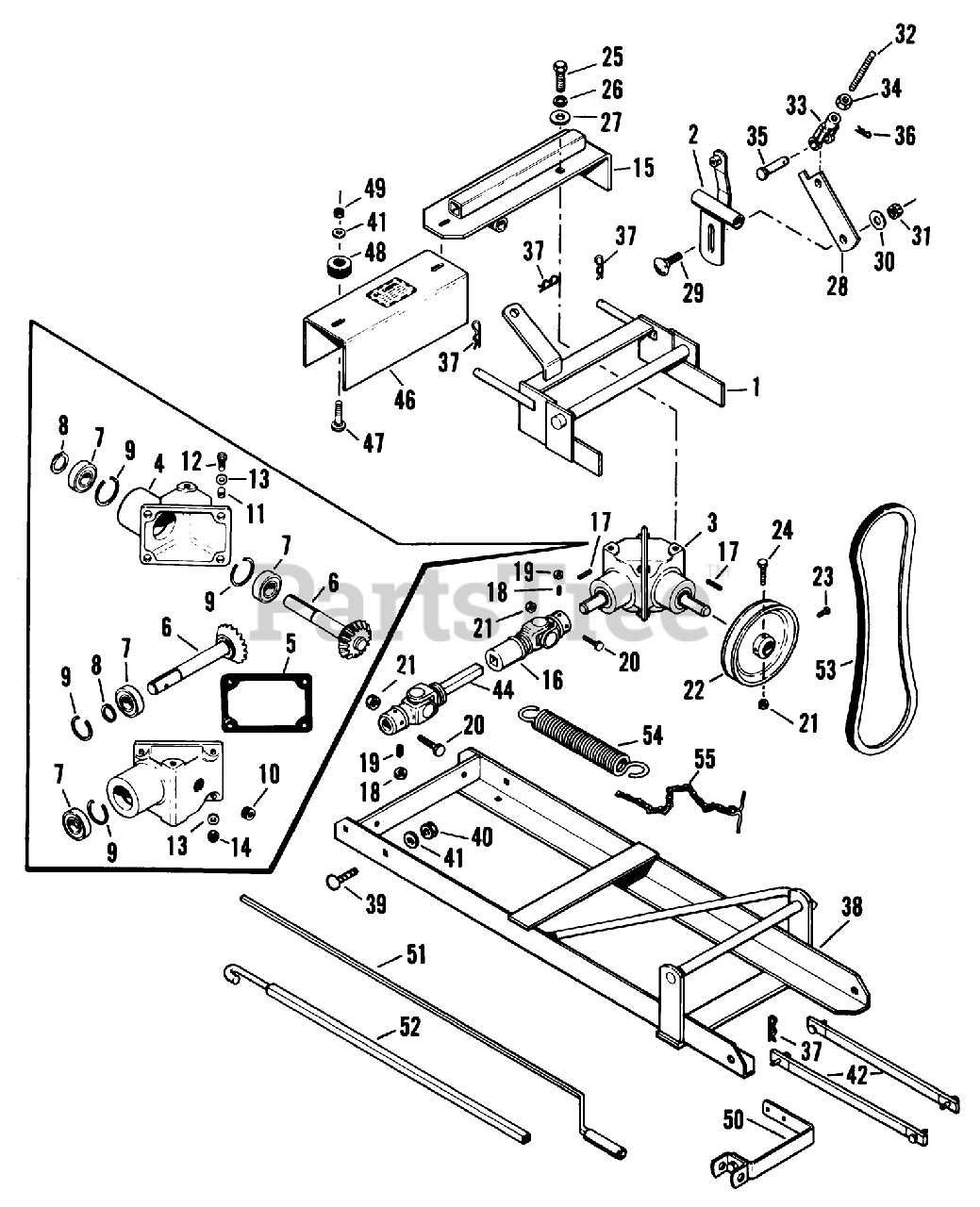

48" SNOW THROWER (SERIAL #983056 & UP- )-MODEL NO. 6-7452 Parts Diagram

  • Title

1

Toro 200142

ASSEMBLY-BRACKET

$

$

Not available

2

Kohler 200143

Bracket-Gearbox Actuating

$

$

Not available

3

Kohler 200144

Assembly-Gearbox

$

$

Not available

4

Toro 200145

Gearbox Case Half

$

$

Not available

5

Toro 200146

Gasket

$

$

Not available

6

Kohler 200147

Assembly-Shaft & Gear

$

$

Not available

7

Kohler 200119

BEARING-GEAR BOX

$

$

Not available

8

Toro 200148

RING-SNAP

$

$

Not available

9

Kohler 200118

Ring-Snap

$

$

Not available

10

Kohler 200149

PLUG PIPE

$

$

Not available

11

Toro 200150

BUSHING

$

$

Not available

12

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

13

Toro 920037-4

Washer

$

$

Currently unavailable

14

Toro 915972-4

Nut 5/16-18 Keps

$

$

Currently unavailable

15

Toro 200151

Assembly-Gearbox Mtg.

$

$

Not available

16

Toro 200152

Slip Assembly-Female End

$

$

Not available

17

Toro 200122

Key

$

$

Not available

18

Toro 909879-6

Screw-Set (3/8-16 x 5/8 Allen Hd. Cup Pt.

$

$

Currently unavailable

19

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

20

Toro 908009-4

Bolt 1/4-20 x 2

$

$

Currently unavailable

21

Toro 200133

NUT

$

$

Not available

22

Kohler 200153

Pulley

$

$

Not available

23

Toro 200154

Screw-Set (5/16-18 x 1/2 Square Head)

$

$

Not available

24

Toro 908008-4

Bolt Hex 1/4-20 x 1 3/4

$

$

Currently unavailable

25

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

26

Toro 920038-4

Washer

$

$

Currently unavailable

27

Toro 920083-4

Lockwasher

$

$

Currently unavailable

28

Toro 200155

NDNK-OVER CENTER

$

$

Not available

29

Toro 900114-4

Bolt-1/2-13 x 1-1/2 Carr.

$

$

Currently unavailable

30

Toro 920011-4

Washer

$

$

Currently unavailable

31

Toro 915665-4

Nut-ES 1/2-13

$

$

Currently unavailable

32

Kohler 200156

Stud

$

$

Not available

33

Kohler 200157

Clevis

$

$

Not available

34

Toro 915085-4

Nut-3/8-24 Lt.

$

$

Currently unavailable

35

Toro 200158

Clevis Pin

$

$

Not available

36

Toro 200159

PIN-HAIR

$

$

Not available

37

Kohler 200160

Pin

$

$

Not available

38

Kohler 200161

Mounting Frame

$

$

Not available

39

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

40

Toro 915974-4

Nut, Jam, 3/8-24 Thd

$

$

Currently unavailable

41

Toro 920039-4

Washer

$

$

Currently unavailable

42

Toro 200162

Lift Bar

$

$

Not available

44

Kohler 200163

Slip Assy.-Male End

$

$

Not available

46

Toro 200164

PTO Cover

$

$

Not available

47

Toro 900066-4

Bolt-Carriage

$

$

Currently unavailable

48

Toro 200165

Rubber Washer

$

$

Not available

49

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

50

Toro 200166

Crank Rod Support Assembly

$

$

Not available

51

Toro 200167

Assy.-Crank Rod

$

$

Not available

52

Toro 200169

Crank Rod Extension

$

$

Not available

53

Toro 200170

V-Belt

$

$

Not available

54

Toro 200171

SPRING-EXTENSION

$

$

Not available

55

Toro 200172

Chain and Toggle

$

$

Not available
