657 - Weed Eater String Trimmer FUEL & EXHAUST Parts Diagram

String Trimmer

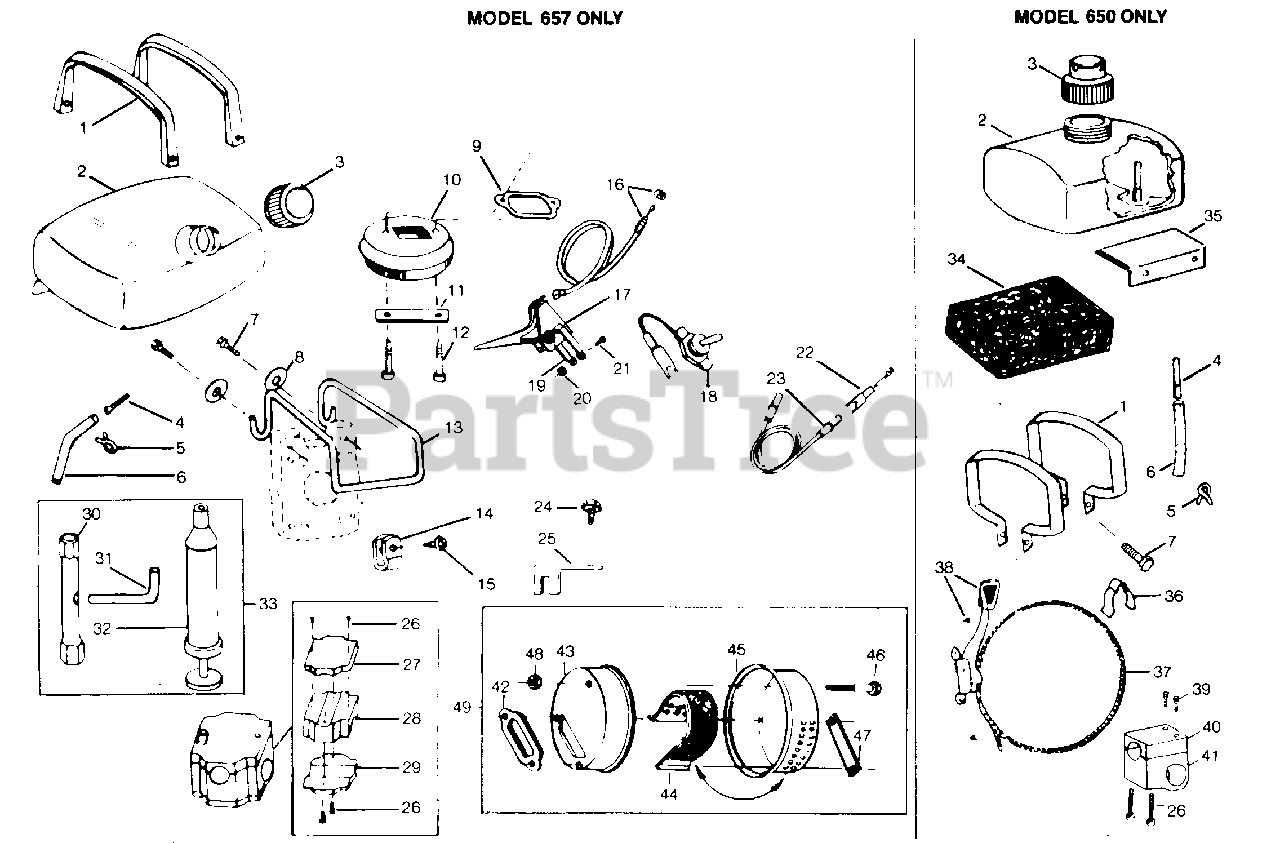

FUEL & EXHAUST Parts Diagram

  • Title

1

Strap, - Fuel Tank

$

$

Not available

1

Poulan 530092815

Model 657

$

$

Not available

1

Poulan 530092755

Model 650

$

$

Not available

2

Tank,-Fuek-Plastic w/Filter

$

$

Not available

2

Poulan 530092811

Model 657

$

$

Not available

2

Poulan 530092747

Model 650

$

$

Not available

3

Poulan 530092746

Cap,-Fuel Tank-Plastic

$19.99

$

Usually ships in 3-10 days

0

4

Poulan 530092748

Filter, - Fuel Tank

$

$

Not available

5

Poulan 530092752

Clip, - Fuel Hose

$

$

Not available

6

Hose, - Fuel 6-3/4"

$

$

Not available

6

Poulan 530092812

Model 657

$

$

Not available

6

Poulan 530092751

Model 650

$

$

Not available

7

Poulan 530092756

Screw #1/4-20x5/8"

$

$

Not available

8

Poulan 530092814

Washer,-Flat Model 657

$

$

Not available

9

Poulan 530092829

Gasket,-Exhaust Model 657

$

$

Not available

10

Poulan 530092828

Muffler Model 657

$

$

Not available

11

Poulan 530092832

Tab Lock Model 657

$

$

Not available

12

Poulan 530092831

Screw, Hex Hd.-#1/4-20x2-5/16" Model 657

$

$

Not available

13

Poulan 530092813

Cradle, Fuel Tank Model 657

$

$

Not available

14

Poulan 530093789

Clip, Retaining Model 657

$

$

Not available

15

Poulan 530093791

Screw, (Slot Hd) Clip Model 657

$

$

Not available

16

Poulan 530093785

Throttle Control Cable w/nut Model 657

$

$

Not available

17

Poulan 530093783

Throttle Control over Assembly Model 657

$

$

Not available

18

Switch w/Bracket Model 657

$

$

Not available

18

Poulan 530093786

Previous Style Model 657

$

$

Not available

18

Poulan 506094502

Current Style Model 657

$

$

Not available

19

Poulan 530091346

Throttle Control Clamp Model 657

$

$

Not available

20

Poulan 530091333

Nut (Hex #10-32)-Switch Bracket Model 657

$

$

Not available

21

Poulan 530091332

Screw (Pan Hd.)-Switch Bracket Model 657

$

$

Not available

22

Poulan 530093787

Wire Connector & Cover Model 657

$

$

Not available

23

Poulan 530093788

Switch Harness Lead Model 657

$

$

Not available

24

Poulan 530092833

Screw-Cable Clamp #1/4-20x3/8" Model 657

$

$

Not available

25

Poulan 530093784

Throttle Control Bracket Model 657

$

$

Not available

26

Poulan 530092818

Screw, Allen Hd #5/16-18x7/8" Model 657

$

$

Not available

27

Poulan 530092822

Upper Cap Model 657

$

$

Not available

28

Poulan 530092823

Middle Block Model 657

$21.99

$

Usually ships in 3-10 days

0

29

Poulan 530092824

Lower Cap Model 657

$

$

Not available

30

Poulan 530091361

Box Wrench Model 657

$

$

Not available

31

Poulan 530092627

Allen Wrench Model 657

$

$

Not available

32

Poulan 530091413

Grease Gun Model 657

$

$

Not available

33

Poulan 530092826

Tool Kit (Incl. #30, 31 & 32) Model 657

$

$

Not available

34

Poulan 530092753

Fuel Tank Baffle Model 650

$

$

Not available

35

Poulan 530092754

Fuel Tank Bracket Model 650

$

$

Not available

36

Poulan 530092788

Throttle Control Clip Model 650

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 530092789

Throttle Control Complete Model 650

$

$

Not available

38

Poulan 530092787

Screw Model 650

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530092772

Screw Model 650

$

$

Not available

40

Poulan 530092785

Upper Clamp Model 650

$

$

Not available

41

Poulan 530092786

Lower Clamp Model 650

$

$

Not available

42

Poulan 530019151

Gasket

$

$

Not available

43

Poulan 530027419

Muffler, Inlet

$9.99

$

Usually ships in 3-10 days

0

44

Poulan 530027420

Baffle w/Screen

$

$

Not available

45

Poulan 530027421

Muffler, Outlet

$

$

Not available

46

Poulan 530027422

Loc Tab

$

$

Not available

47

Poulan 530625567

Screw 1/4"-20x1-3/4"

$

$

Not available

48

Poulan 530015761

Nut, Flex-Loc 1/4" 20

$

$

Not available

49

Poulan 530069239

Kit-Spark Arresting Muffler (Optional)

$60.99

$

Usually ships in 3-10 days

0
