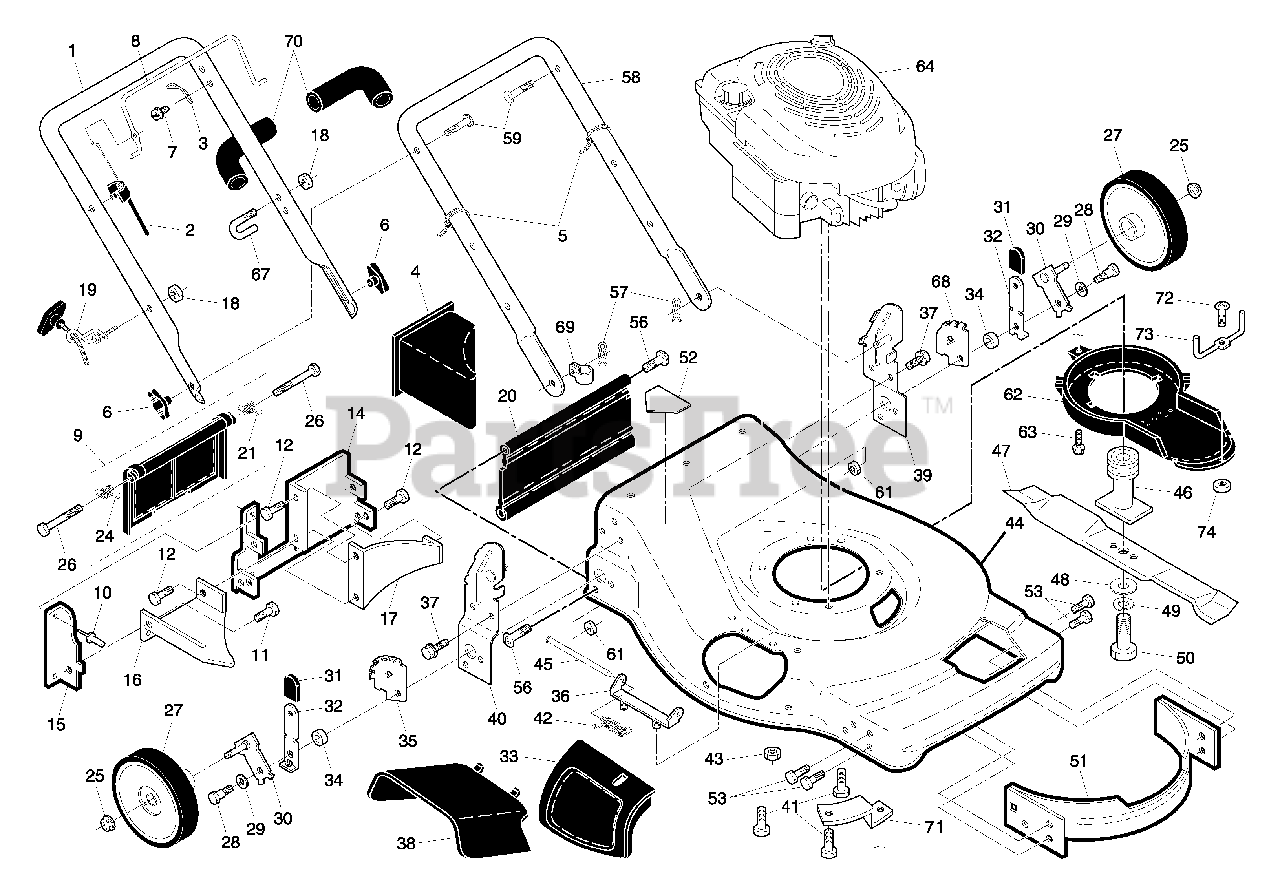

6522 SL (961430008-03) - Husqvarna Walk-Behind Mower (2006-01) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532196403

Upper Handle
(Superseded to 532427658)

Note: (Includes Foam Grip)

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 532183567

Engine Zone Control Cable

$17.99

$

In Stock, only 2 left!

0

3

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532166649

Mulcher Plug

$

$

Not available

5

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532191856

Handle Knob
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

7

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 532197019

Control Bar

$

$

Not available

9

Husqvarna 532193679

Rear Door Assembly

Note: (Includes Springs)

$26.99

$

In Stock, only 1 left!

0

10

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150050

Screw, Self-Tapping #10-24 x 5/8

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 532054583

Screw, Hex Hex Head, Sems 1/4-20 x 1/2

$

$

Not available

14

Husqvarna 532197076

Back Plate
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532138860

Side Baffle

$

$

Not available

16

Husqvarna 532177133

Discharge Baffle
(Superseded to 532176655)

$

$

Not available

17

Husqvarna 532148941

Rear Baffle
(Superseded to 532140661)

$

$

Not available

18

Husqvarna 532132004

Keps Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532189008

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532170938

Spring, Rear Door, LH

$

$

Not available

24

Husqvarna 532170939

Spring, Rear Door, RH

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532083923

Nut, Hex, Flanged
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

27

Husqvarna 532400542

Wheel & Tire Assembly, Rear

$26.99

$

In Stock, only 4 left!

0

28

Husqvarna 532142748

Bolt, Shoulder 3/8-16 x 1
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

29

Husqvarna 532062335

Washer, Belleville

$9.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532149857

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

31

Husqvarna 532196401

Selector Knob

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532197029

Mulcher Door

$13.99

$

In Stock, only 1 left!

0

34

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

35

Husqvarna 532140996

Wheel Adjusting Bracket, RH
(Superseded to 532407492)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

Hinge Bracket Assembly

$

$

Not available

37

Husqvarna 532150078

Screw, Sems, Thread Cutting 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532403819

Discharge Deflector

$

$

Not available

39

Husqvarna 532197028

Handle Bracket Assembly, LH
(Superseded to 532195916)

$10.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532197027

Handle Bracket Assembly, RH
(Superseded to 532195917)

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532193000

Spring, Torsion

$7.49

$

In Stock, only 3 left!

0

43

Husqvarna 873800400

Nut, Hex, Nylock
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 532196398

Kit, Lawn Mower Housing

Note: (Includes Key Numbers 14, 15 and 51)

$169.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

Rod, Hinge

$7.49

$

In Stock, Qty 10

0

46

Husqvarna 532194037

Blade Adapter / Pulley
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532141114

Blade, 22"

$28.99

$

In Stock, only 1 left!

0

48

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

Washer, Helical
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532170031

Front Baffle

$

$

Not available

52

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817600406

Screw

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532751592

Locknut, Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1-1/4

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532153406

Lower Handle
(Superseded to 532151590)

$22.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

Handle Bolt

$6.99

$

In Stock, only 4 left!

0

61

Husqvarna 532751592

Nut, Hex
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532199314

Debris Shield
(Superseded to 532413032)

$

$

Not available

63

Husqvarna 532192325

Screw, Debris Shield

$6.49

$

Usually ships in 3-10 days

0

64

Engine, Briggs & Stratton, Model Number 125K02

Note: (Order parts from Engine manufacturer)

$

$

Not available

67

Husqvarna 532401607

Clip, Packaging

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532140836

Whee; Adjusting Bracket, LH
(Superseded to 532407493)

$

$

Not available

69

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

70

Husqvarna 532182748

Foam Grip

$

$

Not available

71

Husqvarna 532190939

Bracket Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532182227

Screw #8

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532197162

Belt Keeper

$

$

Not available

74

Husqvarna 532182228

Nut #8

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532403904

Owner's Manual, English / French

$

$

Not available
