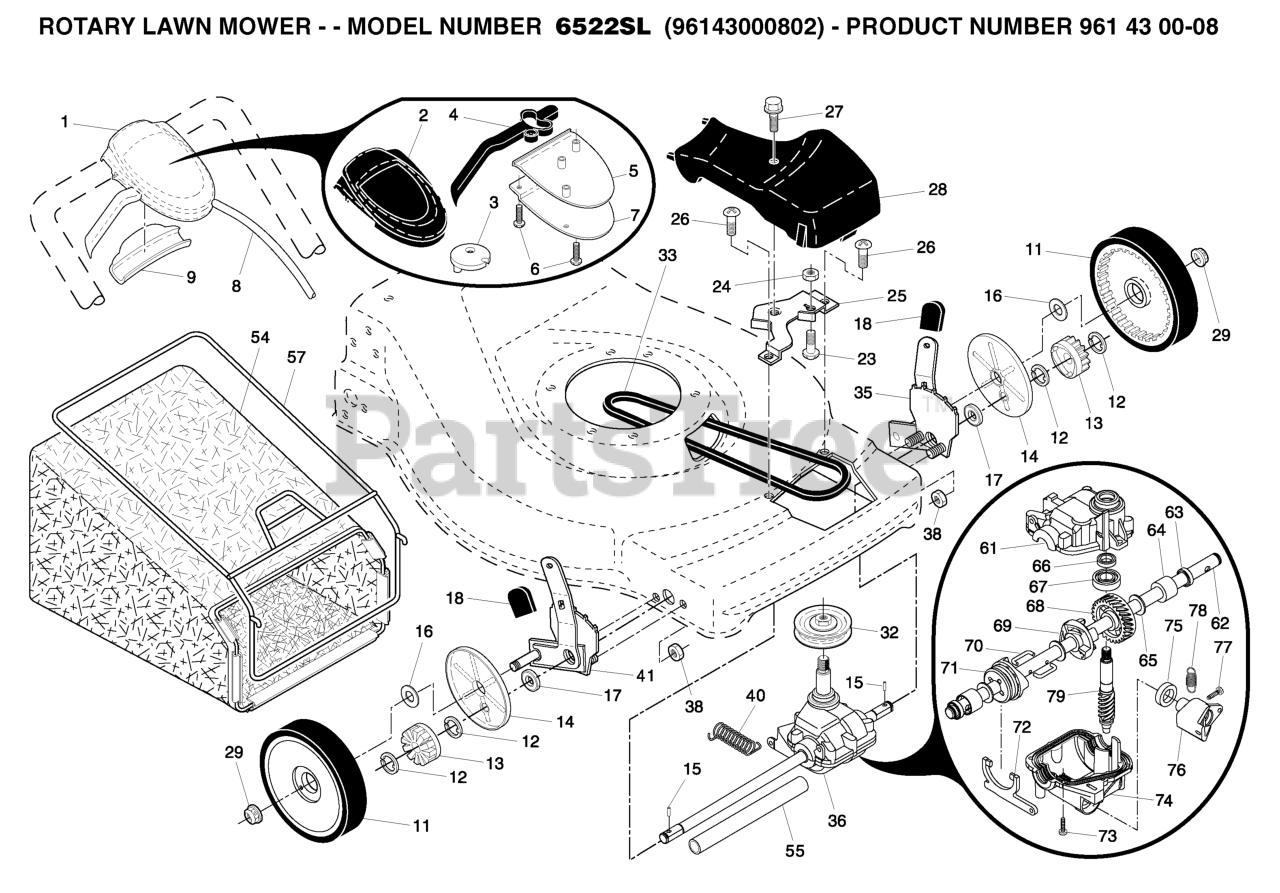

6522 SL (961430008-02) - Husqvarna Walk-Behind Mower (2005-11) REPAIR PARTS 2 Parts Diagram

Walk-Behind Mower

REPAIR PARTS 2 Parts Diagram

  • Title

57

Husqvarna 532189680

FRAME.GBAG.EZ.EMPTY

$

$

Not available

76

Husqvarna 532196879

LEVER

$6.99

$

In Stock, only 1 left!

0

40

Husqvarna 532192849

SPRING RETURN

$5.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532196878

SCREW.LEVER.

$8.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532196884

CLUTCH

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532195107

KIT.ADJUSTER.AS.EZ RT
(Superseded to 581497907)

$

$

Not available

66

Husqvarna 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 2 left!

0

2

Husqvarna 532195761

CASE.TOP.GRAY
(Superseded to 532414555)

$

$

Not available

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183502

SHAFT INPUT (13041)

$30.99

$

In Stock, only 1 left!

0

9

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532191636

TRANSMISSION.22.FWGD

$

$

Not available

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

29

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

63

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, only 1 left!

0

73

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532195110

RP KIT.ADJUSTER.ASM.EZ
(Superseded to 581497908)

$22.99

$

In Stock, Qty 8

0

26

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532196886

GEARCASE.HOUSING

$15.99

$

In Stock, only 1 left!

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

65

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 532197195

CABLE ASM

$80.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532197057

OUTPUT.SHAFT.(12245)
(Superseded to 532191636)

$

$

Not available

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532197194

RP CONTROL.DR.EZ
(Superseded to 532404142)

$

$

Not available

18

Husqvarna 532196401

KNOB.DELUXE.GRAY

$4.99

$

In Stock, only 4 left!

0

74

Husqvarna 532196881

GEARCASE.HOUSING.LOWER

$15.99

$

In Stock, only 1 left!

0

78

Husqvarna 532196877

SPRING.

$5.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532183511

BUSHING

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532196880

SEAL

$6.49

$

In Stock, only 1 left!

0

25

Husqvarna 532197386

BRKT.CABLE/BELT.GUARD.

$

$

Not available

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 1 left!

0

71

Husqvarna 532196883

CLUTCH

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532750003

PINION
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

68

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 532400543

WHEEL.8X1.75.5SPK.RAD.GREY
(Superseded to 581009202)

$24.99

$

In Stock, only 2 left!

0

33

Husqvarna 532196857

BELT.DRIVE.FG

$17.99

$

In Stock, only 4 left!

0

70

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

72

Husqvarna 532196882

FORK

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532195762

CASE BOTTOM
(Superseded to 532414555)

$

$

Not available
