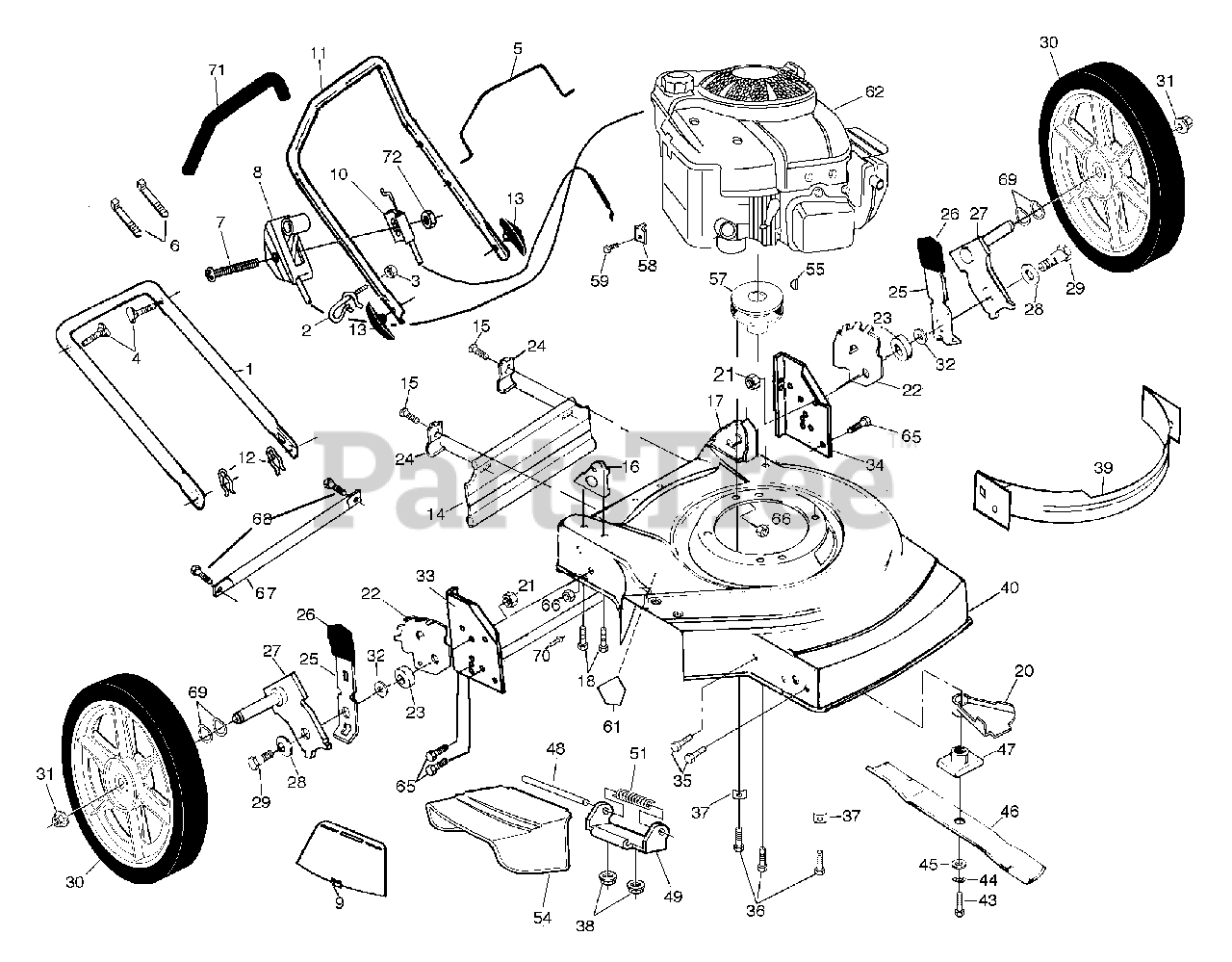

6522 SH (954222718-C) - Husqvarna Walk-Behind Mower (2001-11) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532153605

Lower Handle
(Superseded to 532175245)

$

$

Not available

2

Husqvarna 532179585

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

3

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

5

Husqvarna 532176580

Control Bar
(Superseded to 583678201)

$

$

Not available

6

Husqvarna 532066426

Wire Ties
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

8

Husqvarna 532166971

Throttle Control
(Superseded to 532182157)

$

$

Not available

9

Husqvarna 532125444

Mulcher Plate
(Superseded to 532751772)

$

$

Not available

10

Husqvarna 532130861

Engine Zone Control Cable

$

$

Not available

11

Husqvarna 532178067

Upper Handle
(Superseded to 532166862)

$84.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532136376

Handle Knobs
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532750097

Hex Head Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

16

Husqvarna 532170975

Handle Bracket Assembly (Right)
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 532170977

Handle Bracket Assembly (Left)
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 532149741

Screw 5/16-18 x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

20

Husqvarna 532134612

Debris Shield
(Superseded to 532048283)

$

$

Not available

21

Husqvarna 532751592

Locknut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532155047

Wheel Adjusting Bracket
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 532125207

Skirt Bracket
(Superseded to 532192301)

$

$

Not available

25

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 532162233

Axle Arm Assembly
(Superseded to 532750913)

$

$

Not available

28

Husqvarna 532061651

Belleville Washer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

30

Husqvarna 532752063

Wheel & Tire Assembly (Rear)

$84.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532083923

Flanged Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532088348

Flat Washer

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532178065

Wheel Support Bracket (RT)

$

$

Not available

34

Husqvarna 532178066

Wheel Support Bracket (LT)

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 817600406

Screw

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532150406

Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532125078

Engine Washer

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532063601

Nut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 532170031

Front Baffle Kit

$

$

Not available

40

Husqvarna 532176605

Mower Housing Kit

Note: (Includes Key No. 61)

$

$

Not available

43

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532850263

Helical Washer 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 532141114

22" Blade

$28.99

$

In Stock, only 1 left!

0

47

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

48

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

49

Husqvarna 532087593

Housing Bracket

$6.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532087589

Torsion Spring

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532850778

Discharge Guard

$

$

Not available

55

Husqvarna 532087677

Hi-Pro Key

$

$

Not available

57

Husqvarna 532084596

Engine Pulley

$34.99

$

In Stock, only 2 left!

0

58

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

62

Engine, Briggs & Stratton, Model No. 120602

Note: Order parts from engine manufacturer.

$

$

Not available

65

Husqvarna 874760612

Bolt

$4.99

$

In Stock, only 1 left!

0

66

Husqvarna 532751592

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532177141

Support Rod
(Superseded to 532165175)

$10.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532054583

Screw hex Tap. 1/4/20

$

$

Not available

69

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

70

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532164265

Foam Grip
(Superseded to 585161003)

$

$

Not available

72

Husqvarna 532132004

Nut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532125381

Rear Baffle

Note: (Not shown)

$

$

Not available

Husqvarna 532181287

Owner's Manual (English/French)

$

$

Currently unavailable
