6522 CH (954222725-A) - Husqvarna Walk-Behind Mower (2000-01) Repair Parts (B) Parts Diagram

Walk-Behind Mower

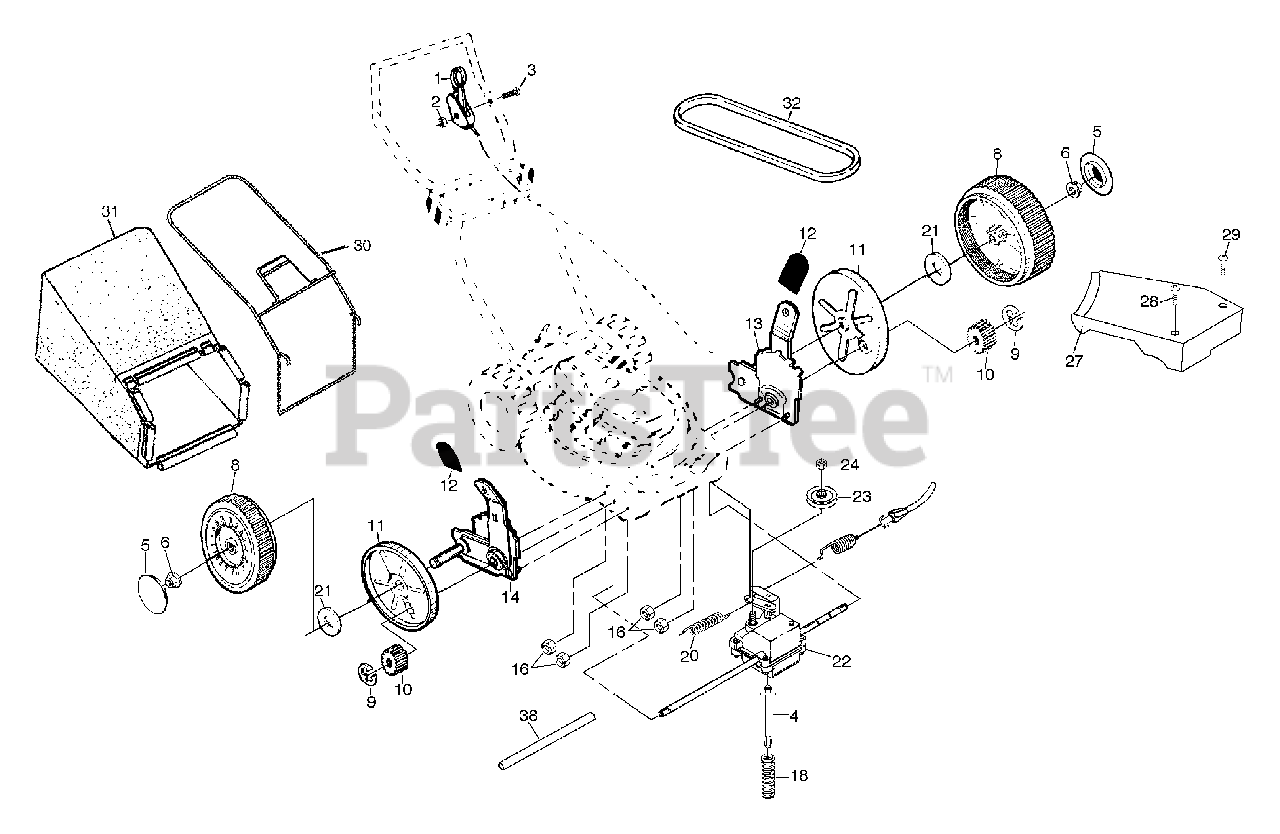

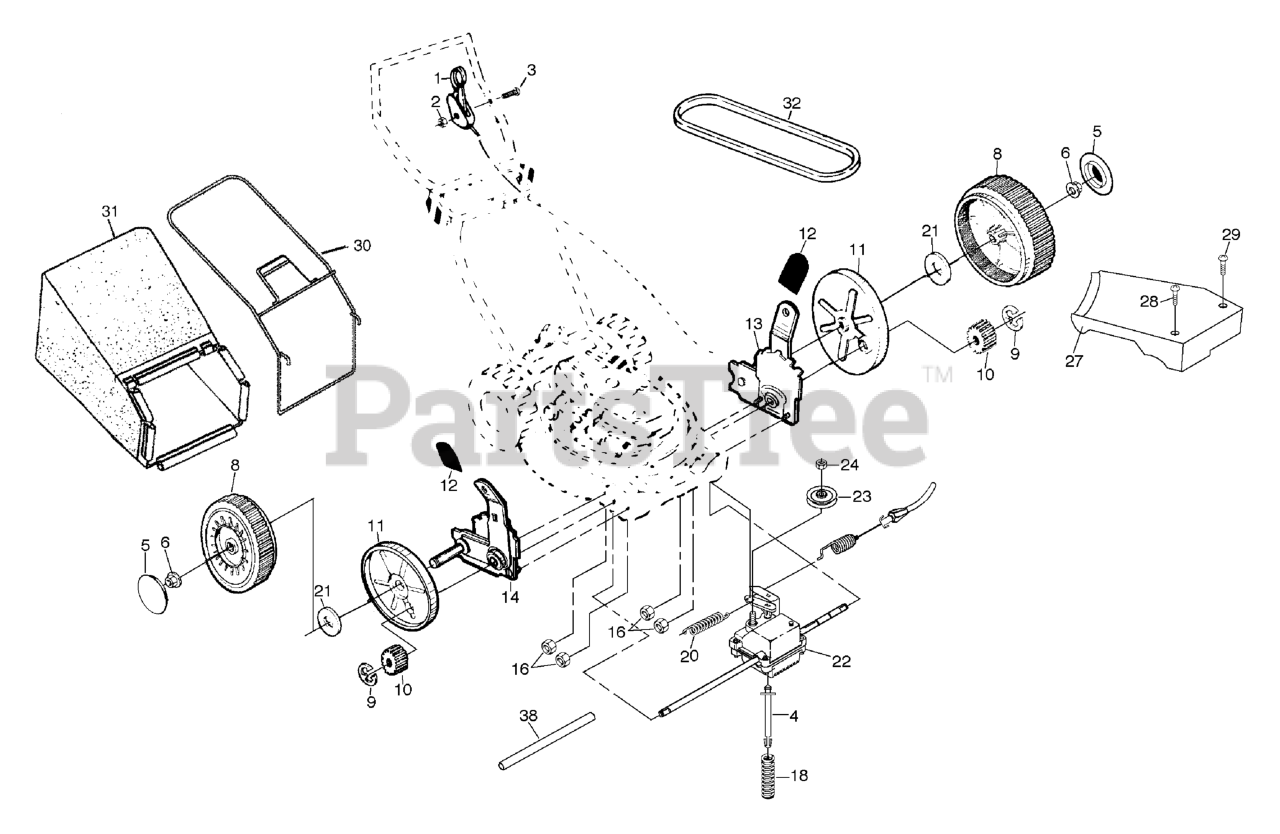

Repair Parts (B) Parts Diagram

  • Title
1

Husqvarna 532146323

Drive Control
(Superseded to 532184588)

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 532751152

Locknut #10-24
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

3

Husqvarna 532158755

Pan Head Machine Screw 1/4-20 x 2-1/8

$

$

Not available

4

Husqvarna 532150495

Spring Retainer

$7.49

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 532145212

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532088558

Wheel & Tire Assembly
(Superseded to 532193144)

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 532151521

Wheel Adjuster Assembly (Left)

$

$

Not available

14

Husqvarna 532151520

Wheel Adjuster Assembly (Right)

$

$

Not available

16

Husqvarna 532063601

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532702511

Gear Case Assembly
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137052

Drive Pulley
(Superseded to 532194126)

$

$

Not available

24

Husqvarna 532132010

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532700479

Drive Cover

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532149746

Pan Head Tapping Screw #10-24 x 1-3/4

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 532169931

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532176575

Grass Bag
(Superseded to 532410685)

$66.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532146527

V-Belt
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 532086012

Drive Shaft Cover

$

$

Not available
