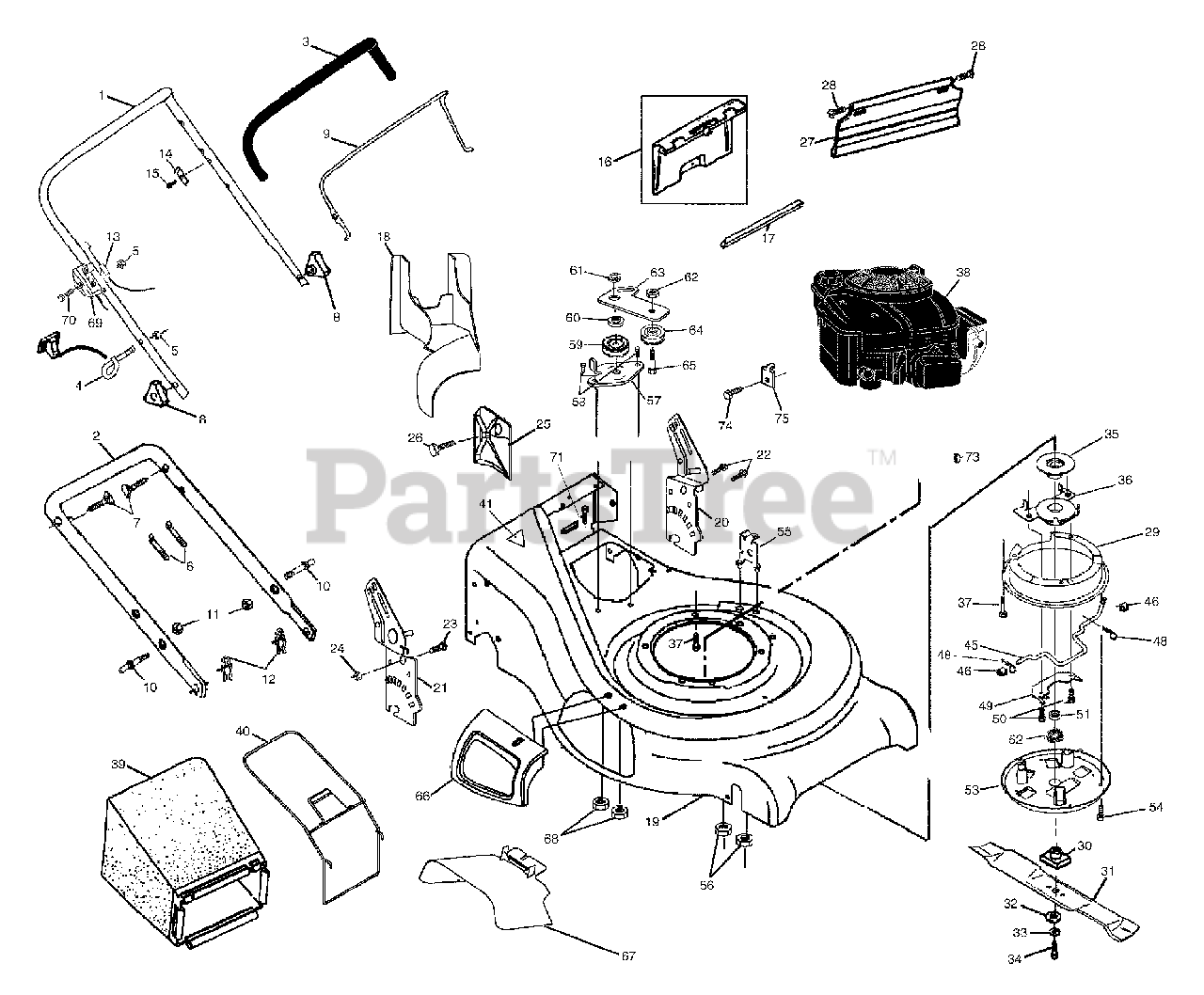

6521 RS (954222732-A) - Husqvarna Walk-Behind Mower (2000-01) Repair Parts (A) Parts Diagram

Walk-Behind Mower

Repair Parts (A) Parts Diagram

  • Title
1

Husqvarna 532177698

Handle, Upper Dlx Comf.
(Superseded to 532166860)

Note: (Including grip)

$

$

Not available

2

Husqvarna 532164556

Handle,Lower
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532164265

Grip, Hdl Foam Smooth
(Superseded to 585161003)

$

$

Not available

4

Husqvarna 532132001

Guide, Rope, Side
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532063601

Nut, Hex Lockwasher 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

Wire, Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532131959

Bolt, Handle 5/16-18 x 1.75
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532087692

Knob, Handle

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532176594

Bail, Cont. Wire Dlx Comf. Yel
(Superseded to 532411083)

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532161551

Bolt, Sq. Neck
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 873990500

Nut, Hex Lockwasher Ins. 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

Cotter, Hairpin

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532133107

Engine zone control cable

$20.99

$

In Stock, only 1 left!

0

14

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532083816

Screw, Hex Washer Head Tapping 10-2

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532162085

Kit, Door Rear

$

$

Not available

17

Husqvarna 532161548

Seal, Door
(Superseded to 532189059)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532165261

Plug, Mulcher
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532176599

Kit, Housing

$

$

Not available

20

Husqvarna 532164548

Handle, Bracket Asm. Left
(Superseded to 532161568)

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532169306

Handle, Bracket Asm. Right
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

Screw, Hex Wshd
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

Bolt, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532063124

Nut, Hex Lock Wshr 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

Baffle, Side

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532161550

Skirt
(Superseded to 532408442)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1.25

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 532177652

Belt Cover, Top
(Superseded to 532190930)

$27.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532851514

Adapter, Blade w/key Longer

$17.99

$

In Stock, Qty 20+

0

31

Husqvarna 532159267

Blade, 21"

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532851074

Washer,Hardened

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 532850263

Lockwasher, Helical Spring 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1.38
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532169809

Pulley, Fixed

$

$

Not available

36

Husqvarna 532170045

Bearing Support Assy.
(Superseded to 532179222)

$

$

Not available

37

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

38

Engine B&S 120602

Note: Order parts from engine manufacturer

$

$

Not available

39

Husqvarna 532169111

Grass Catcher Bag
(Superseded to 532410686)

$74.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532161358

Grass Catcher Frame

$

$

Not available

41

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532166034

Engagement Rod

$11.99

$

Usually ships in 3-10 days

0

46

$2.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532169605

Retainer Clip

$

$

Not available

49

Husqvarna 532177653

Clamp
(Superseded to 532175787)

$

$

Not available

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532170868

Wave Washer

$8.99

$

In Stock, only 4 left!

0

53

Husqvarna 532173041

Belt Cover, Bottom

$

$

Not available

54

Husqvarna 532750097

Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

55

Husqvarna 532177651

Cable Support Bracket
(Superseded to 532166383)

$

$

Not available

56

Husqvarna 532063601

Nut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

57

Husqvarna 532177656

Bracket Assy.
(Superseded to 532166391)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

59

Husqvarna 532166042

V-Groove Pulley

$26.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532166050

Idler Arm Spacer

$9.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532145212

Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532155552

Locknut
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

63

Husqvarna 532177655

Idler Arm
(Superseded to 532166022)

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532166043

Idler Pulley

$31.99

$

In Stock, only 1 left!

0

65

Husqvarna 532160829

Shoulder Bolt

$7.49

$

In Stock, only 2 left!

0

66

Husqvarna 532171962

Door Assy.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

67

Husqvarna 532166028

Deflector, Door
(Superseded to 532169699)

$

$

Not available

$7.49

$

In Stock, only 1 left!

0

69

Husqvarna 532168246

Throttle Control

$

$

Not available

70

Husqvarna 532144929

Screw
(Superseded to 532158755)

$

$

Not available

$

$

Not available

73

Husqvarna 532087677

Hi Pro Key

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532111190

Cable Clamp

$

$

Not available

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not Shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532177951

Owner's Manual (English/French)

$6.49

$

Usually ships in 3-10 days

0
