6517 H (1691733) - Simplicity 48" Garden Tractor, 17hp Steering & Front Wheel Group Parts Diagram

48" Garden Tractor, 17hp

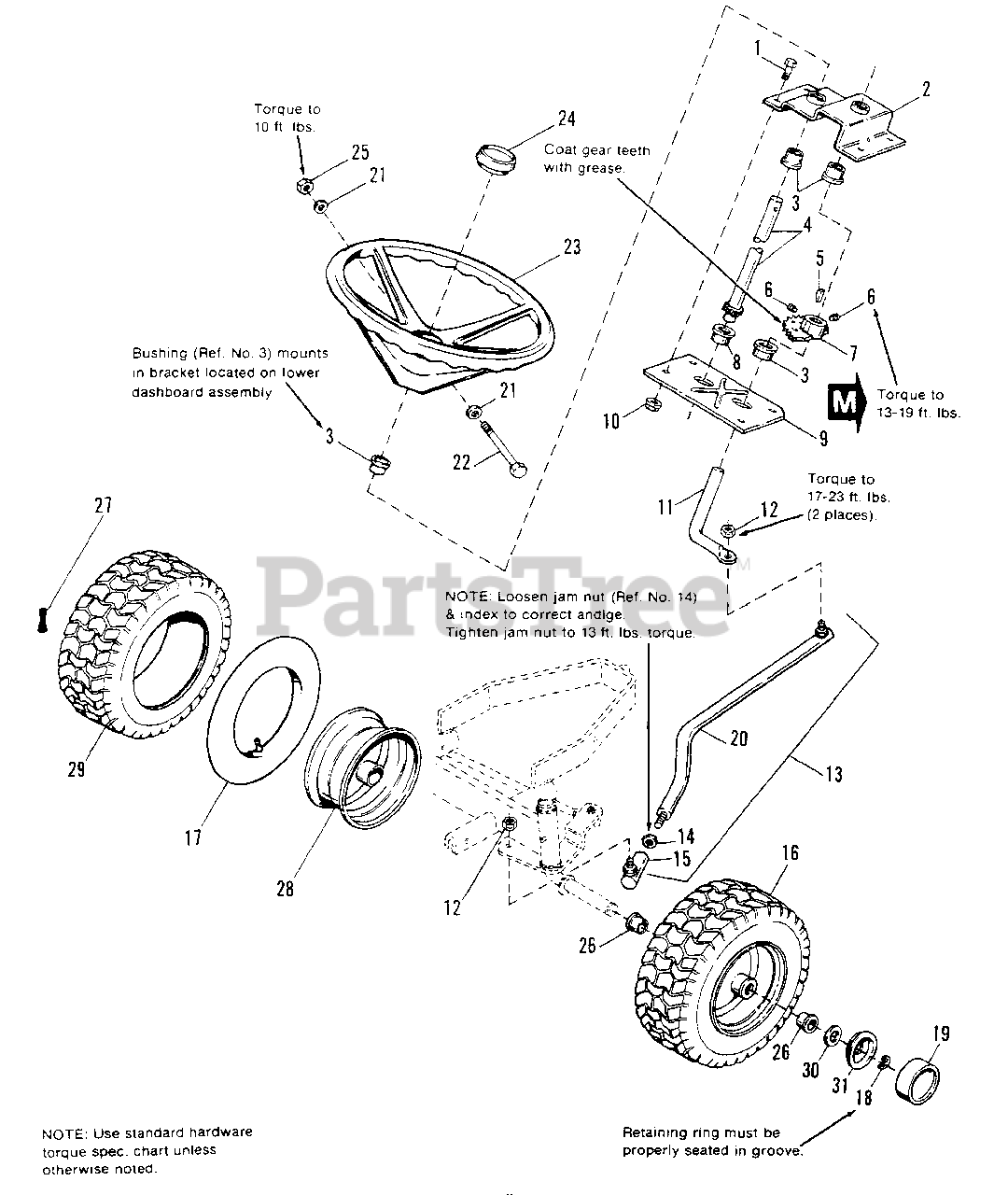

Steering & Front Wheel Group Parts Diagram

  • Title

1

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

2

Simplicity 1667513SM

PLATE, Steering
(Superseded to 1667513ASM)

$102.99

$

Usually ships in 2-12 days

0

3

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

4

Simplicity 1701266SM

SHAFT ASSY., Steering

$108.99

$

Usually ships in 2-12 days

0

5

Simplicity 1667622SM

KEY

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

7

Simplicity 1675388SM

STEERING GEAR
(Superseded to 1685168SM)

$

$

Not available

8

Simplicity 1671737SM

BUSHING

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1652743SM

BASE PLATE, Steering
(Superseded to 1652743ASM)

$

$

Not available

10

Simplicity 1935048SM

NUT, Hex, Flange, 2 Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1674076SM

ROD, Steering

$

$

Not available

12

Simplicity 1668927SM

NUT, Special

$6.49

$

In Stock, only 1 left!

0

13

Simplicity 1686669SM

LINK ASSY., Drag (Incl. Ref. Nos. 14, 15 & 20)

$

$

Not available

14

Simplicity 1918403SM

NUT, Jam, 3/8-14
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 1669567SM

BALL JOINT ASSY.

$15.99

$

In Stock, Qty 10

0

16

Simplicity 1709856SM

WHEEL & TIE ASSY., 15 x 6-6 (Incl. Ref. Nos. 17, 26, 27, 28 & 29)

$137.99

$

Usually ships in 2-12 days

0

17

Simplicity 1664090SM

TUBE, 4.10 x 3.50-6 (Service Only)

$26.99

$

In Stock, only 3 left!

0

18

Simplicity 1611710SM

KLIP RING, External, 3/4

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1676519SM

HUB CAP

$8.49

$

In Stock, Qty 20+

0

20

DRAG LINK (Order Ref. No. 13)

$

$

Not available

21

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1925690SM

BOLT, Hex, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1686651SM

WHEEL. Steering

$190.99

$

In Stock, only 1 left!

0

24

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

25

Simplicity 1923362SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

26

Simplicity 2156316SM

BEARING

$11.99

$

In Stock, only 4 left!

0

27

Simplicity 2172353SM

VALVE STEM
(Superseded to 024373MA)

$

$

Not available

28

Simplicity 1715032

WHEEL
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

29

Simplicity 1713166SM

TIRE (Carlisle) 15 x 6.00-6

$113.99

$

Usually ships in 2-12 days

0

30

Simplicity 2860160

WASHER

$

$

Not available

31

Simplicity 1701435SM

RETAINER, Hub Cap

$13.99

$

In Stock, only 1 left!

0
