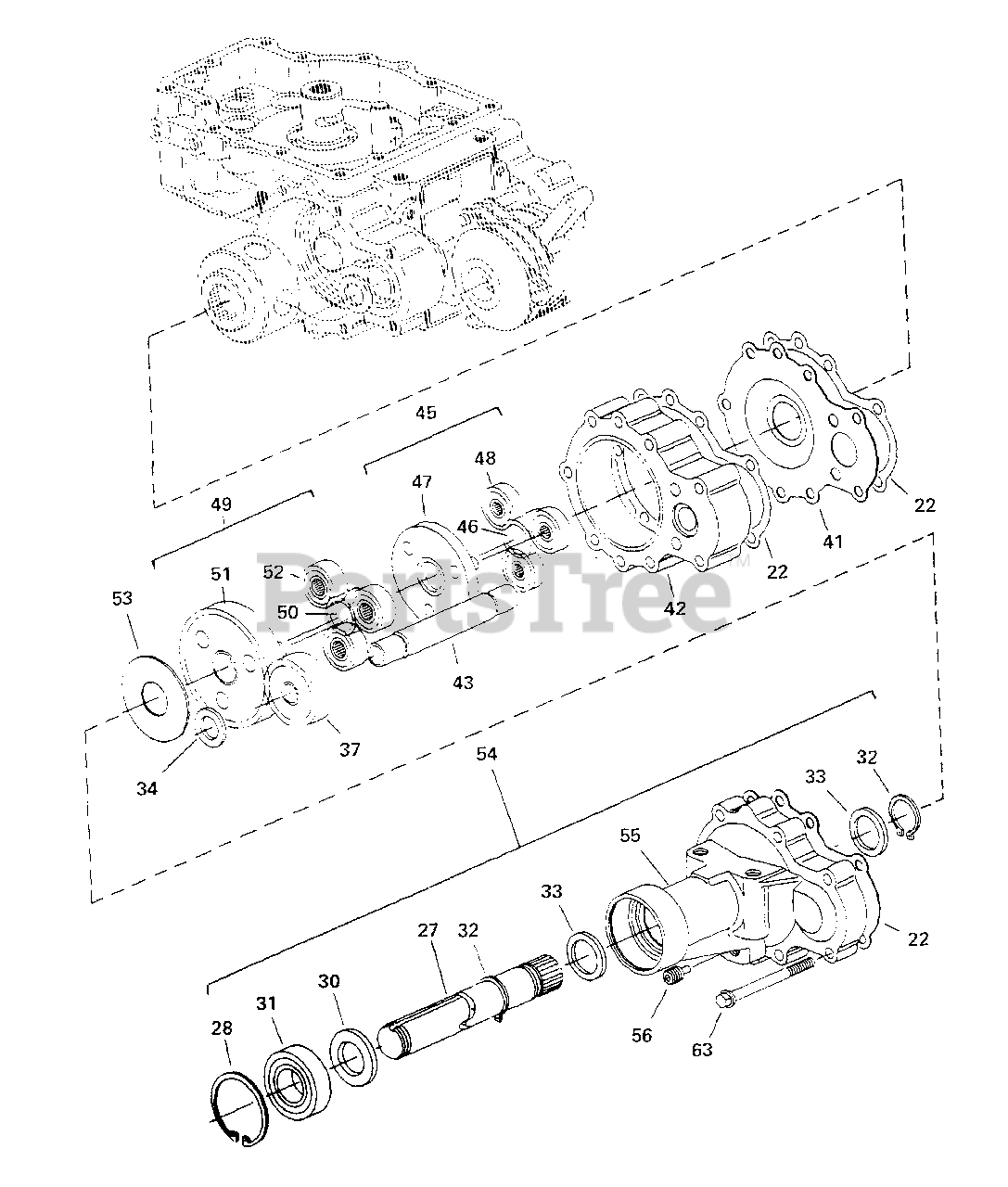

6517 H (1691733) - Simplicity 48" Garden Tractor, 17hp Eaton 850 Transaxle - Left Axle Subassembly Parts Diagram

48" Garden Tractor, 17hp

Eaton 850 Transaxle - Left Axle Subassembly Parts Diagram

  • Title

22

Simplicity 1702257SM

GASKET, Axle Housing

Note: Parts included in Gasket Kit Part No. 1702280.

$17.99

$

In Stock, only 1 left!

0

27

Simplicity 1702260SM

SHAFT, Axle

$

$

Not available

28

Simplicity 1702261SM

RETAINING RING, Internal

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 1702263SM

LIP SEAL, Radial

$19.99

$

Usually ships in 2-12 days

0

31

Simplicity 1702264SM

BEARING, Ball

$44.99

$

Usually ships in 2-12 days

0

32

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

33

Snapper 1702266SM

WASHER, Thrust

$17.99

$

Usually ships in 2-12 days

0

34

Simplicity 1702267

SPACER

$

$

Not available

37

Simplicity 1702270SM

LOCK GEAR, Differential

$22.99

$

Usually ships in 2-12 days

0

41

Simplicity 1702272

PLATE, Wear

$

$

Not available

42

Simplicity 1702716SM

RING GEAR, A & B S/A, 57T

$

$

Not available

43

Simplicity 1702717

BRAKE SHAFT-A

$

$

Not available

45

Simplicity 1702273SM

PLANETARY GEAR, First, Subassembly (Incl. Ref. Nos. 46, 47 & 48

$198.99

$

Usually ships in 2-12 days

0

46

SUN GEAR, First, 15T (See Ref. No. 45)

$

$

Not available

47

PRIMARY CARRIER, A & B S/A, 15T (See Ref. No. 45)

$

$

Not available

48

PLANETARY GEAR, First, A & B S/A, 21T (See Ref. No. 45)

$

$

Not available

49

Simplicity 1702274

PLANETARY GEAR, Second, A & B S/A (Incl. Ref. Nos. 50, 51 & 52

$

$

Not available

50

SUN GEAR, Second, 15T (See Ref. No. 49)

$

$

Not available

51

SECONDARY CARRIER, A & B S/A (See Ref. No. 49)

$

$

Not available

52

PLANETARY GEAR, A & B S/A, Second, 21T (See Ref. No. 49)

$

$

Not available

53

Simplicity 1702719

WASHER, Thrust

$

$

Not available

54

Simplicity 1702275SM

AXLE HOUSING, S/A-A

$467.99

$

Usually ships in 2-12 days

0

55

Simplicity 1702275SM

HOUSING, Axle-A

$467.99

$

Usually ships in 2-12 days

0

56

Simplicity 1702283SM

PLUG, Magnetic

$

$

Not available

63

Simplicity 1960340SM

CAPSCREW, 1/4-20 Hex Flange x 2-3/4
(Superseded to 703166)

$6.49

$

Usually ships in 2-12 days

0

63

Simplicity 1702280SM

Gasket Overhaul Kit (Incl. Ref. Nos. 19, 22 & 24)

Note: Parts included in Gasket Kit Part No. 1702280.

$29.99

$

Usually ships in 2-12 days

0
